Battery Care and Maintenance
Removing the battery box
Removing the battery is useful to transport the Bicycle to reduce lifting weight or to charge in a
location where the bicycle may not fit etc.

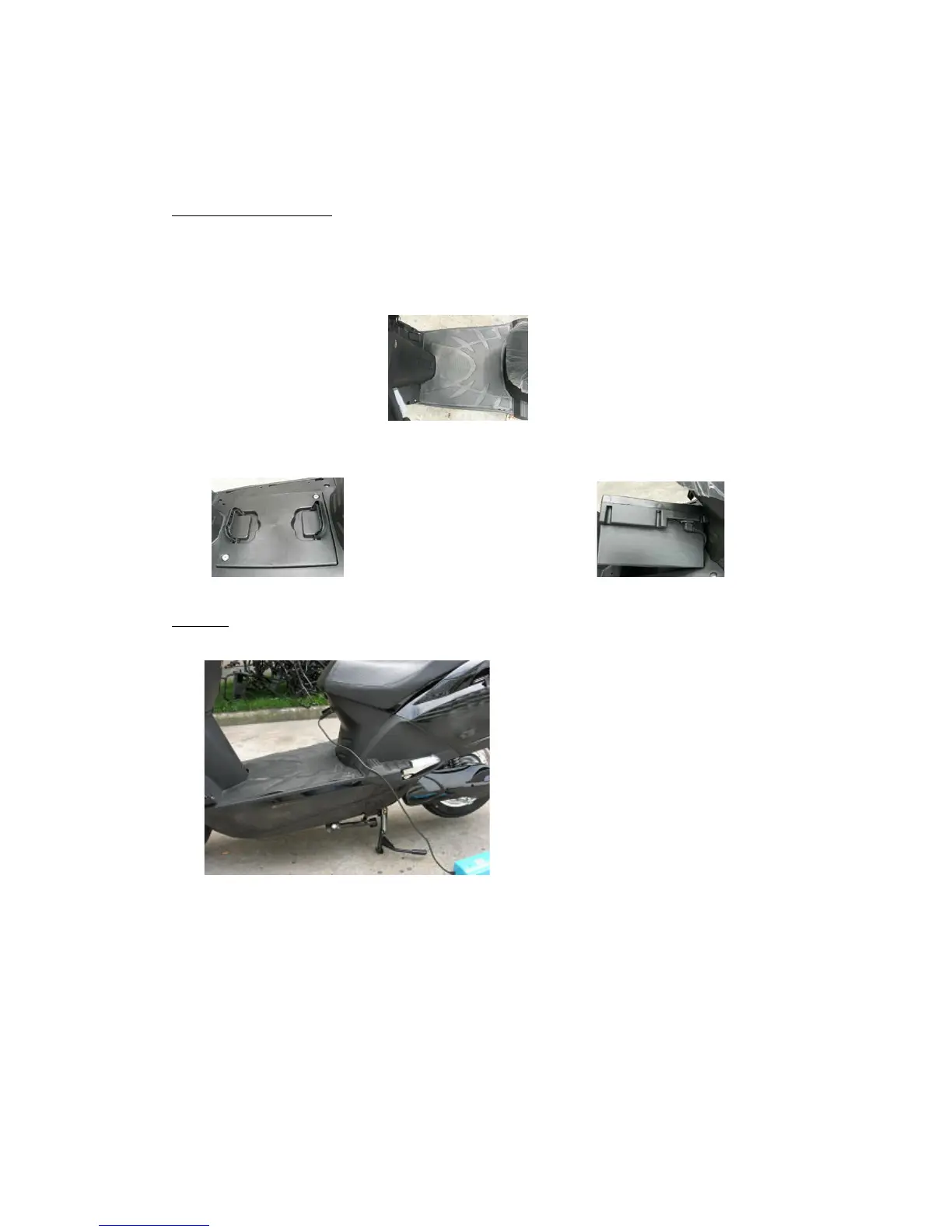

1. To remove the battery box from the bike, uncover the foot pad from the bike.see figure 1-1
figure1-1
2. Lift the case and then unplug the battery. see figure 1-2, figure 1-3
figure 1-2 figure 1-3
Charging
figure 1-4
Specification:
1．Input（AC）： 100-240V frequency：50Hz/60Hz
2．Output： 54.60 ± 0.2V
3．Charge current：
1.8±0.2A
Charging (see figure 1-4)
1．First connect to the battery charger to the charging socket located below the front of the seat or
under the front seat.
