INSTALLATION REQUIREMENT

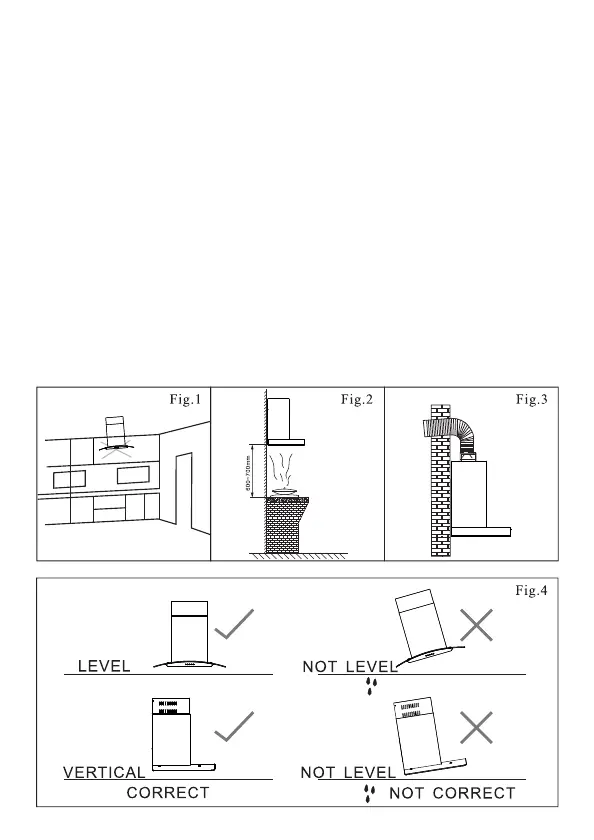

1. Do not install the range hood where there are many doors ro
windows in order to avoid effecting the exhaust efficiency of the
hood that caused by air convection. (fig.1)
2. Install the range hood right above the cooking surface. The
recommended distance between the cooking surface and the lower
edge of the range hood is minimum 27.56" to maximum 31.5".
(Fig.2) 3. In order to get the best performance, do not extend the
vent pipe too long, and try to make the bend of the vent pipe less
and straight, make sure the vent pipe connection is firm and air
proof. (Fig.3)
4. After hanging the range hood on the wall, make sure the hood is
level and vertical. (Fig.4)
5. The air Outlet is not allowed to connect to chimney flues or
combustion gas ducts. The air outlet should under no circumstances
be connected to ventilation ducts for room in which fuel-burning
ppliances are installed.
