EA2350 2-CH
EA4150 4-CH
8
2. CONNECTIONS & CONTROLS

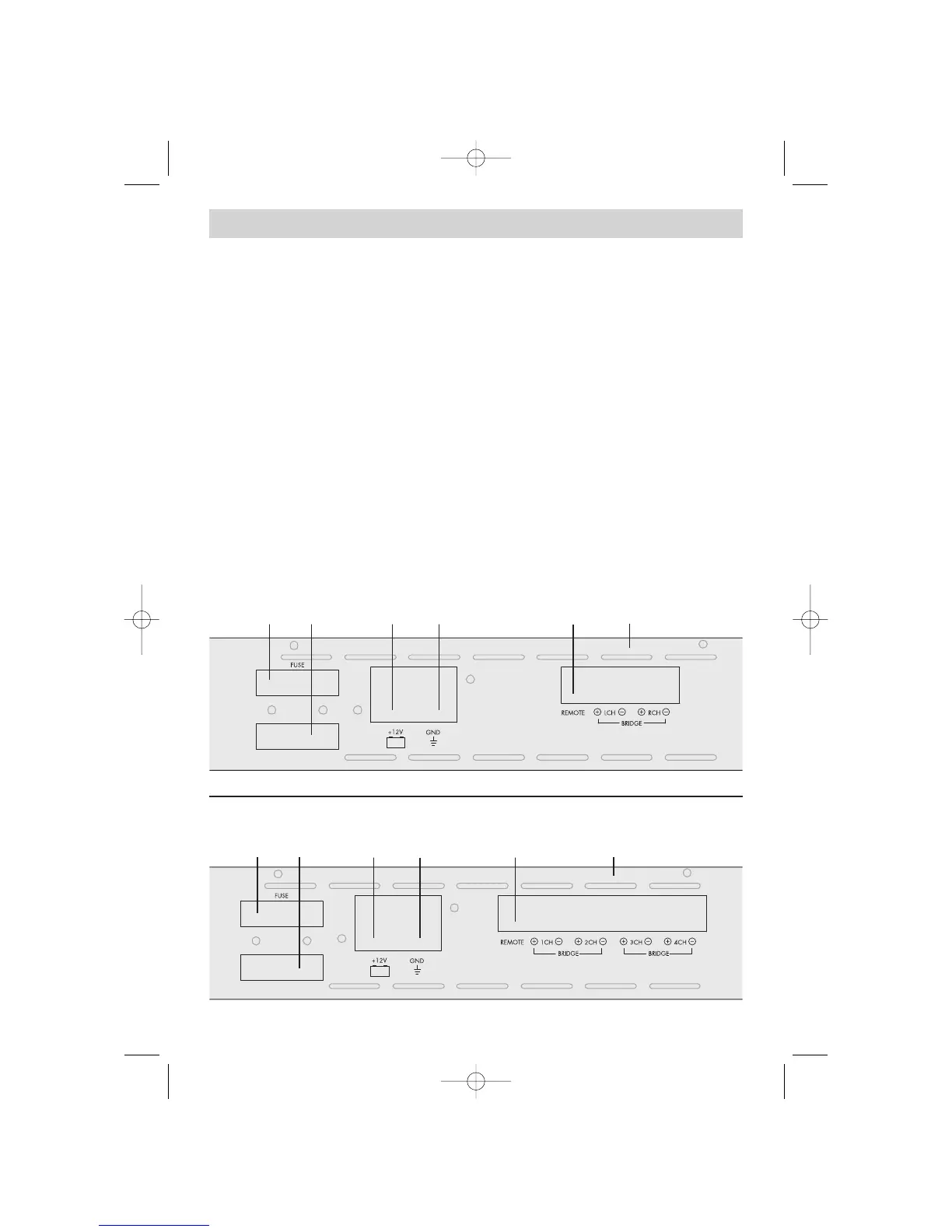

2.2 REAR PANEL CONNECTIONS & CONTROLS
19a/19b FUSES
Two Maxi fuses for protection of the amplifier electronics against overload or wrong
operation / manipulation. See chapter 7.9
22/20 POWER INPUT TERMINAL "+ 12 V"
Terminal to connect the amplifier to the positive +12V pole of the car battery.
See chapter 6.3
23/21 POWER INPUT TERMINAL "GND"
Terminal to connect the amplifier to the negative or ground pole of the car battery.
See chapter 6.3
24 REMOTE INPUT TERMINAL
Terminal to connect the amplifier to the automatic (remote) turn-on / turn-off lead of
the head unit. See chapter 6.1
25 SPEAKER OUTPUT TERMINALS 1/2-CH
Output terminal to connect the speakers in stereo or bridged mode to the amplifier.
See chapter 6.2
