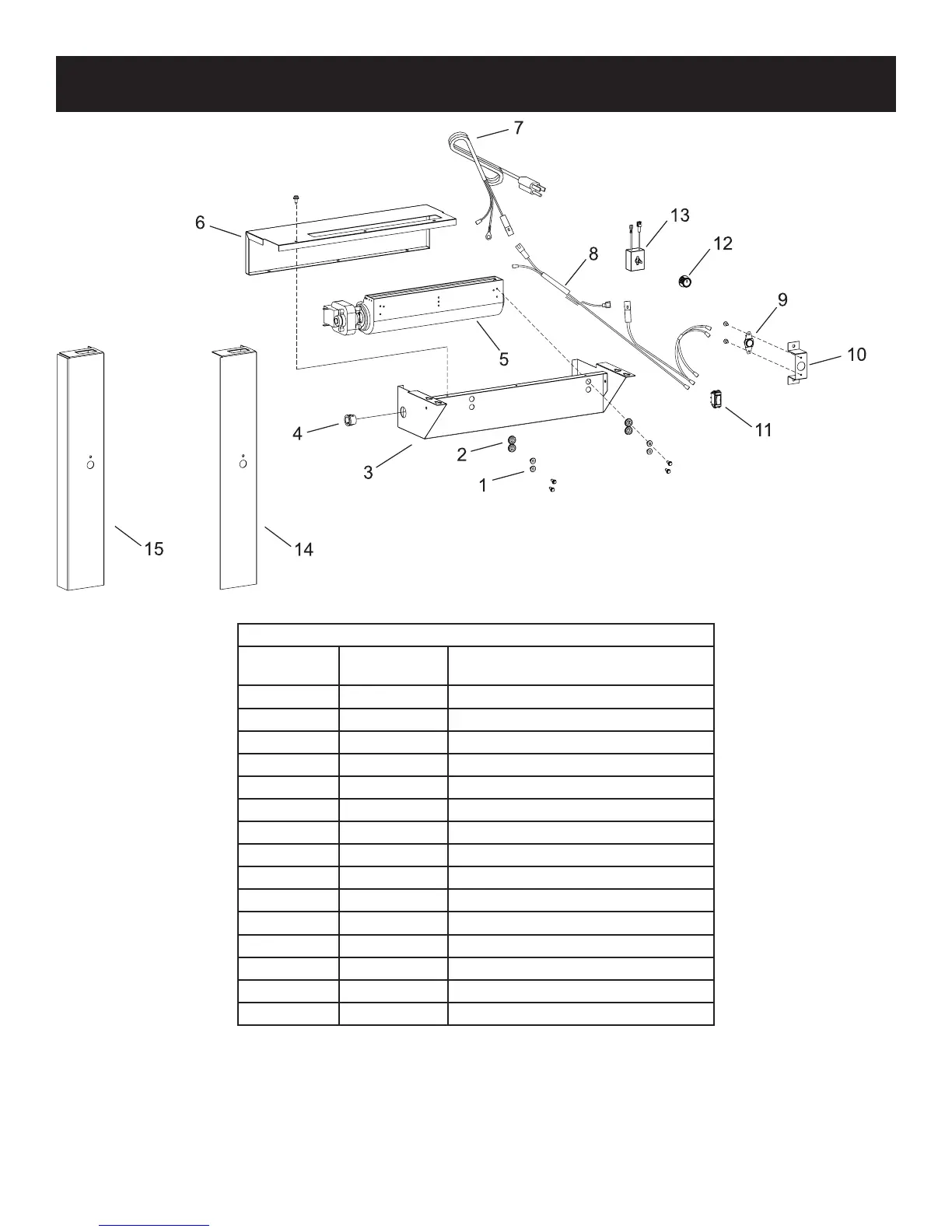

CIB3-1 OPTIONAL BLOWER INSTALLATION INSTRUCTIONS - DVP30CC

PARTS LIST

INDEX NUM-

BER

PART NUM-

BER

DESCRIPTION

1 R1454 BRASS BUSHING

2 R1499 RUBBER GROMMET

3 31739 BLOWER HOUSING

4 R1410 STRAIN RELIEF BUSHING

5 R9927 BLOWER ASSEMBLY

6 24225 BLOWER COVER

7 R6159 CORD SET

8 R10363 WIRE HARNESS

9 R2503 FAN CONTROL

10 24222 FAN CONTROL BRACKET

11 R2805 AUTO OFF/ON SWITCH

12 R4192 RHEOSTAT KNOB

13 18879 RHEOSTAT

14 26050 WIRE CHANNEL - LEFT, DV

15 26052 WIRE CHANNEL - LEFT, VF
