Standard User Controls
Throughout the operation of the Combination 860 the various modes and
parameter settings are all accessed and changed by touching the relevant
buttons displayed on the touchscreen.
The rotary control is used to increase and decrease the ultrasound intensity
when the display is showing the ultrasound screen, or it controls the
stimulation intensity when a stimulation screen is selected. In ultrasound only
mode turning this control down is a safe way to stop a treatment.
In Interferential 4-pole mode it controls the overall Stimulation intensity, in all
other stimulation modes it is possible to independently control the levels of
channels A and B by touching the appropriate selection button.
In Combination mode three output control select buttons are available
(except for 4-pole combination therapy, when there will only be two – see
pages 50-51 for more a more detailed explanation).
On most display screens touching the back arrow icon in the top left corner
will return the user to the last screen displayed, and touching the house icon
in the top right corner will return the display to the main ‘Home’ screen.

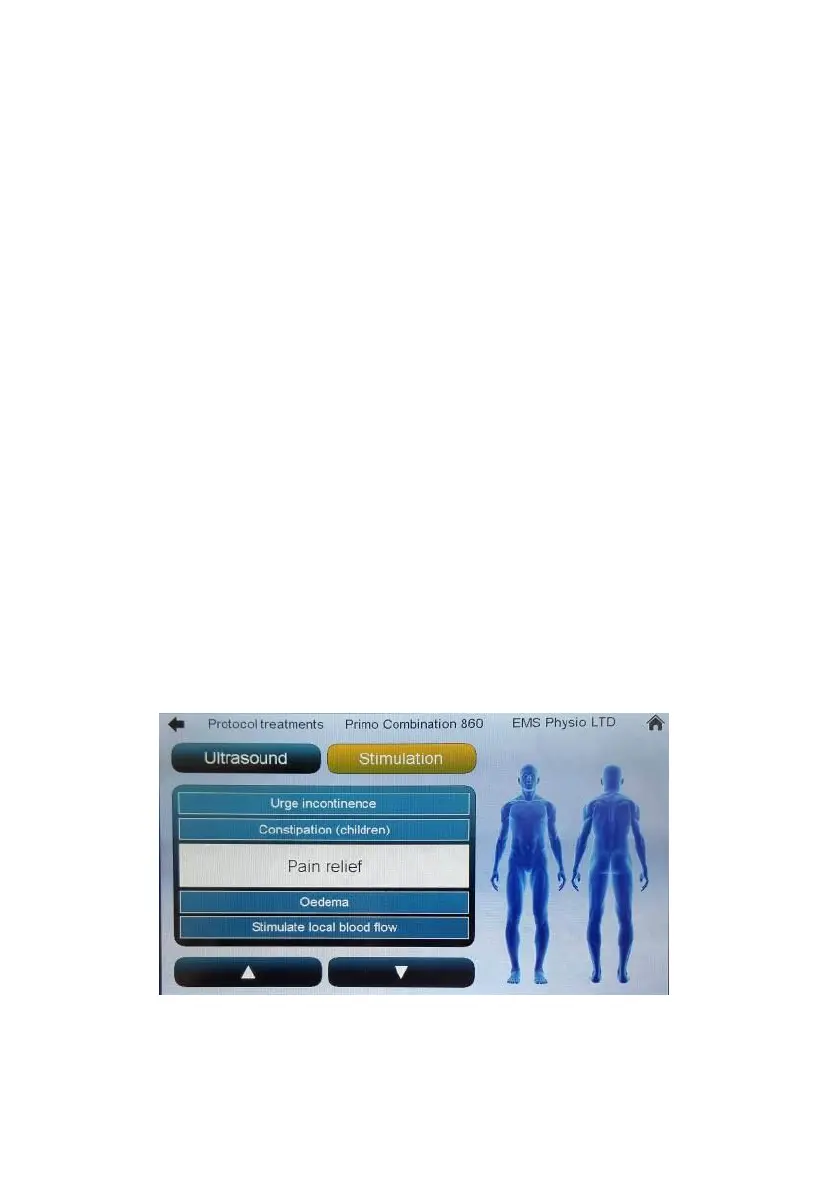

Protocol treatments
Touching the ‘Protocol’ treatments button in the ‘Home’ screen or the
‘Protocols’ button in the ultrasound or Interferential 4-pole set-up screen will
call up a list of pre-sets tailored for treating various conditions.
The condition to be treated can be selected using the up/down buttons and
then touching the highlighted button to call up the treatment settings for that
particular condition. A choice of ultrasound or stimulation treatments is given
