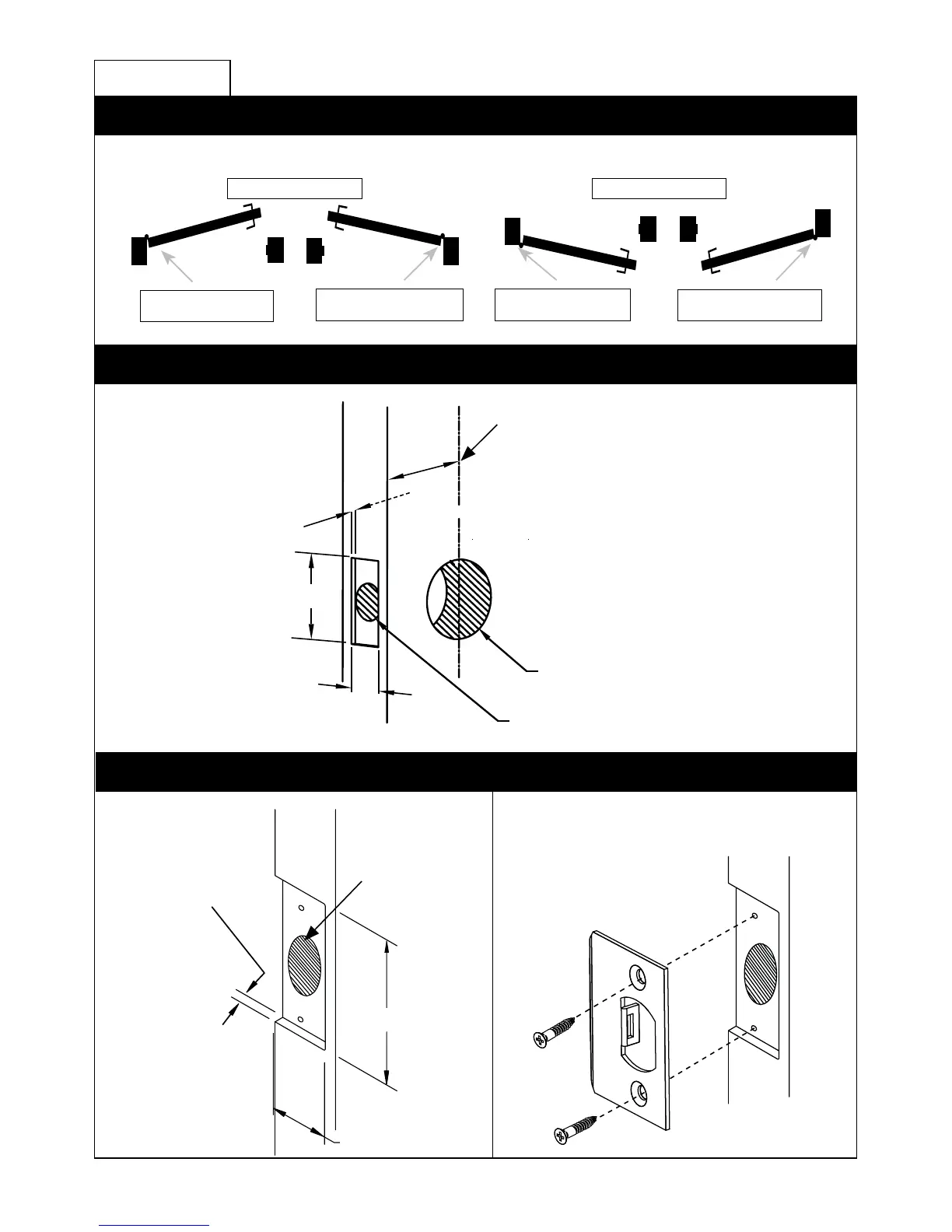

Emtek EMTouch - Preparation Steps; Confirm Handing of Door; Door and Jamb Preparation Details; Installing the Strike Plate

3
1” Deep,
1” Diameter
Edge Bore
2 ⁄” or 2 ¾” Backset
2 ⁄” Diameter Bore
⁄” Deep
2 ¼”
1 “
1” Diameter Edge Bore
3. Remove Screws from Inside Trim Plate
2. Door Prep
3. Door Jamb Prep
1. Conrm Handing
HANDING OF DOOR IS ALWAYS DETERMINED FROM THE OUTSIDE
Hinge is on the left.
Door is Left Hand (LH).
Hinge is on the right.
Door is Right Hand (RH).
Hinge is on the right.
Door is Right Hand (RH).
Hinge is on the left.
Door is Left Hand (LH).
In-Swing Doors
Out-Swing Doors
outsideoutside
Preparation
⁄” Deep
1-1/8"
2-3/4"
2 ¼”
1 ½”
Fasten Strike Plate using two #8 x ¾”
Wood Screws (item #6).
4. Install Strike Plate
