IRB-4X™ Operating Instructions 7
Document no. 10060104
1. Mount to operator manufacturer and local ordinance requirements.
2. Remove grey front cover by removing (4) plastic retaining screws
3. Drill (4) mounting holes in surface of IRB-4X mounting location.

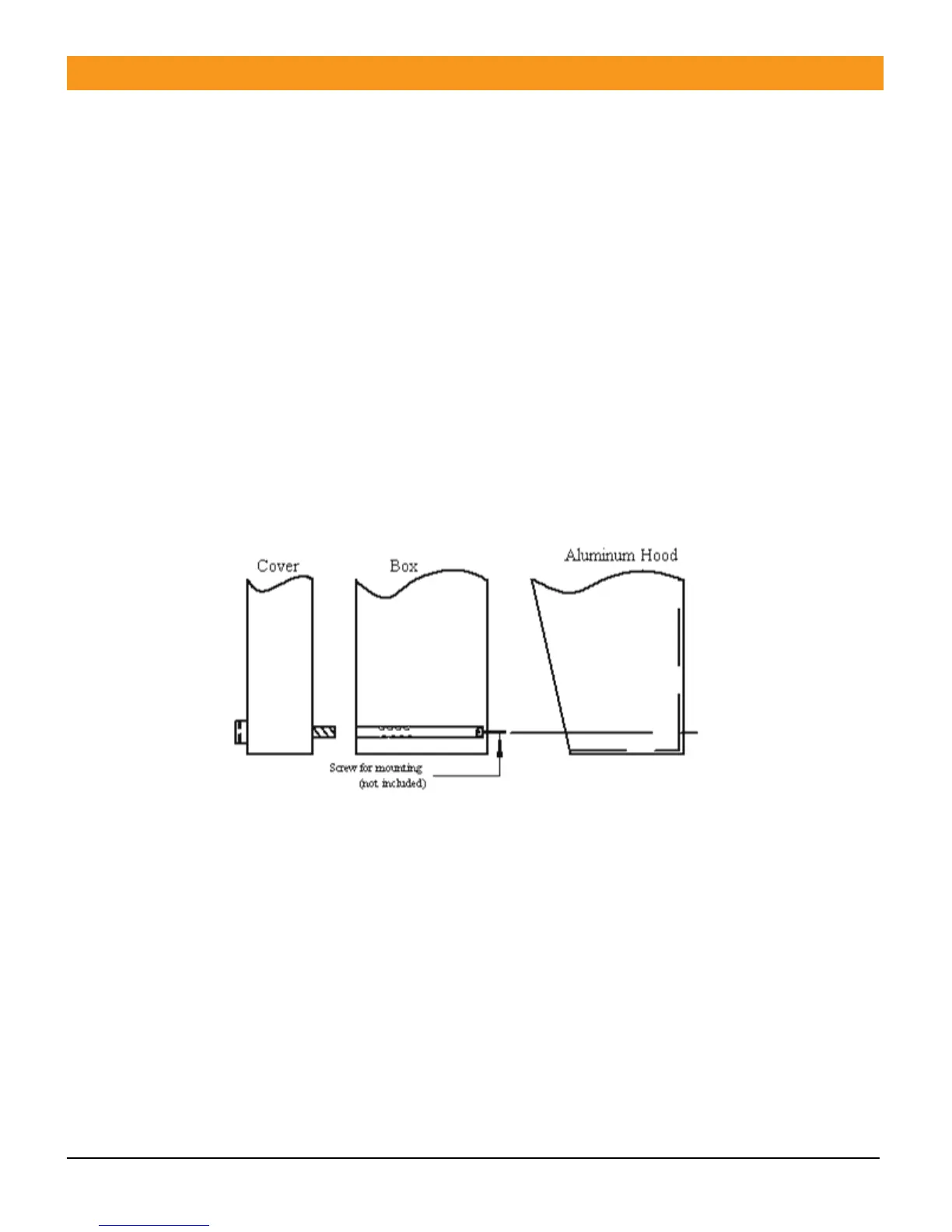

4. Place gold Aluminum hood or Powder coat Steel hood around IRB-4X unit to be mounted, place
mounting screws through IRB-4X box and hood and attach to surface.
5. Make all connections to the transmitter and receiver.
6. Adjust receiver as described above to correct gain needed.
7. Replace front covers on the transmitter and receiver units.
8. Installation is complete.
