MVP D-TEK™ Operating Instructions 7
Document no. 10000104

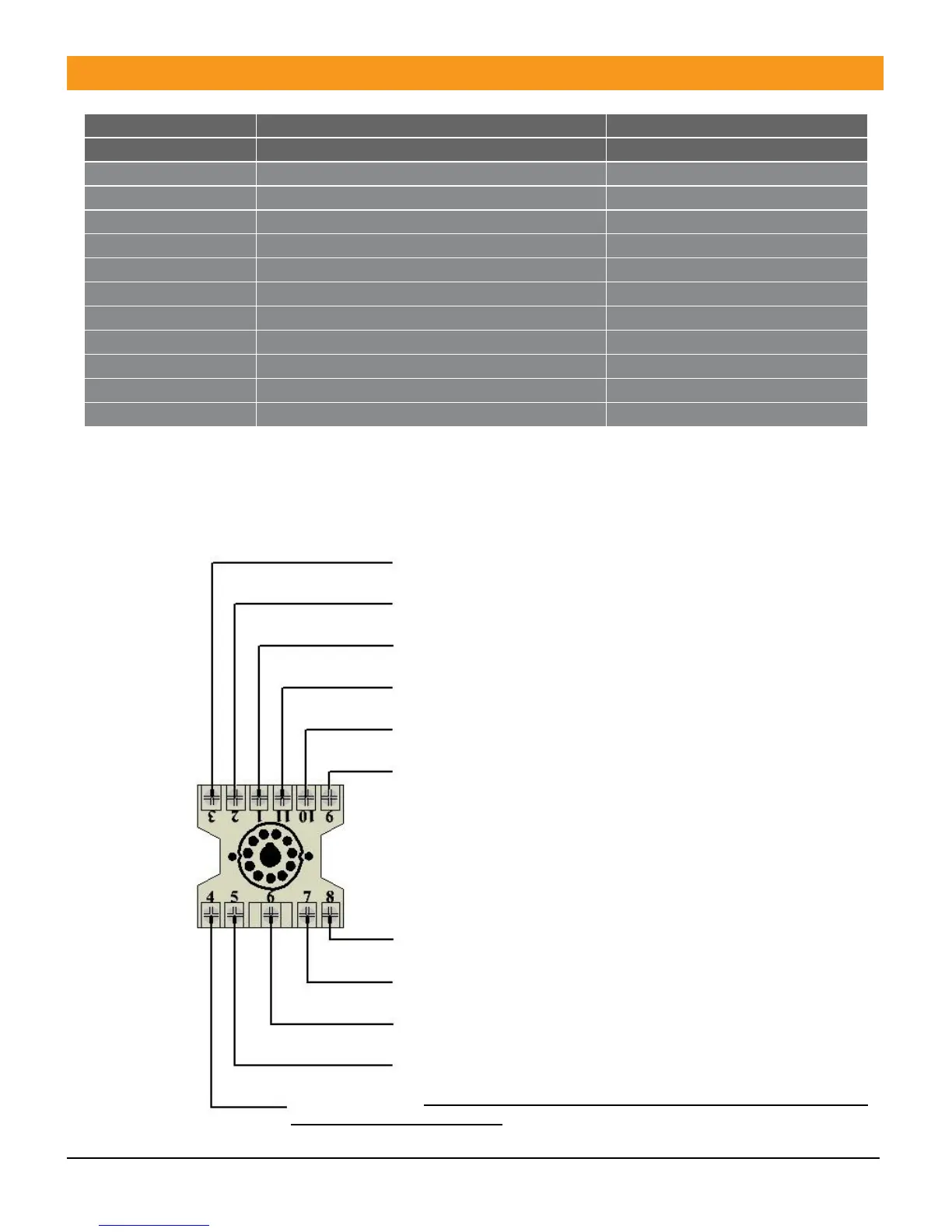

Connections
86CP11 Pin Connector
Connector pin
Description
Harness
1
Power +
White
2
Power -
Black
3
Relay 2 N/O (Pulse or Presence)
Orange
4
Earth Ground
Green
5
Presence Relay (1) COM
Yellow
6
Presence Relay (1) N/O
Blue
7
Loop (Twisted leads)
Gray
8
Loop (Twisted leads)
Brown
9
Relay 2 COM (Pulse or Presence
Red
10
Presence Relay (1) N/C
Pink
11
Relay 2 N/C (Pulse or Presence)
Violet
NOTE: Pin 4 must be connected to earth ground for surge protection to be effective
NOTE: Functions on pins 6 and 10 are reversed if DIP switch 4 is set to OFF “Fail Secure” operation
Relay 2 N/O (Pulse / Presence)
Power (Negative or Neutral)
Power (Positive or Load)
Relay 2 N/C (Pulse / Presence)
Relay 1 N/C (Presence)
Relay 2 COM (Pulse / Presence)
Loop Connection
Loop Connection
Relay 1 N/O (Presence)
Relay 1 COM (Presence)
Ground * Must be connected to approved earth ground for surge
protection to be effective
