4 MAINTENANCE AND REPAIR

Therma-Flow

PLUS

IOM 09900002 Revision C 08/15/21

4-10

SCALD

PROTECTION

VALVE

FREEZE

PROTECTION

VALVE

Nipple

00006801

Elbow

00001504

Nipple

00006801

Bushing

00002305

F.P. Valve

00011020

S.P Valve

00011021

Bushing

00002305

Grommet

00014517

NOTE:

LOCATE ON LEFT SIDE OF FOUNTAIN.

Drain

Tube

00008500

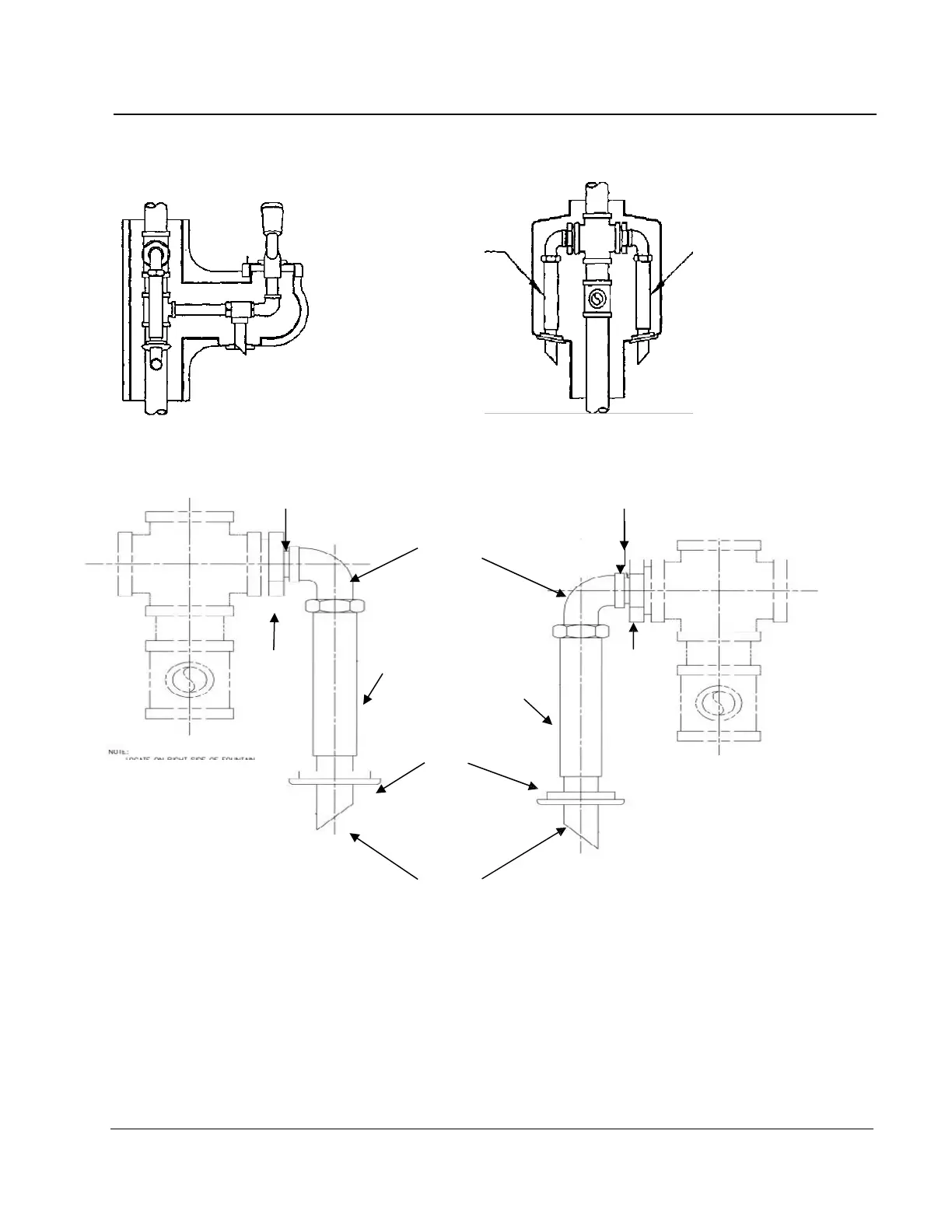

Figure 4-5. Freeze and Scald Protection Valves

4.6.1 Testing and Cleaning Freeze and Scald Protection Valves

It is recommended that at least once every year the freeze and scald protection

valves are uninstalled, tested, and cleaned.

NOTE:

LOCATE ON RIGHT SIDE OF FOUNTAIN.
