4 MAINTENANCE AND REPAIR
4-17
3. Check the relay and other potential problems in the electrical circuit.
4. Replace the MAP
®
switch as described below if the above does not resolve the
issue.
Cover
00013449
Gasket
00013501
Unilet
00014444
Magnet
00013324
Switch
00013325
Magnet Cap
00013007
Actuator Arm
(for reference - not
included in MAP
®
Switch assembly)
Bracket
00014707

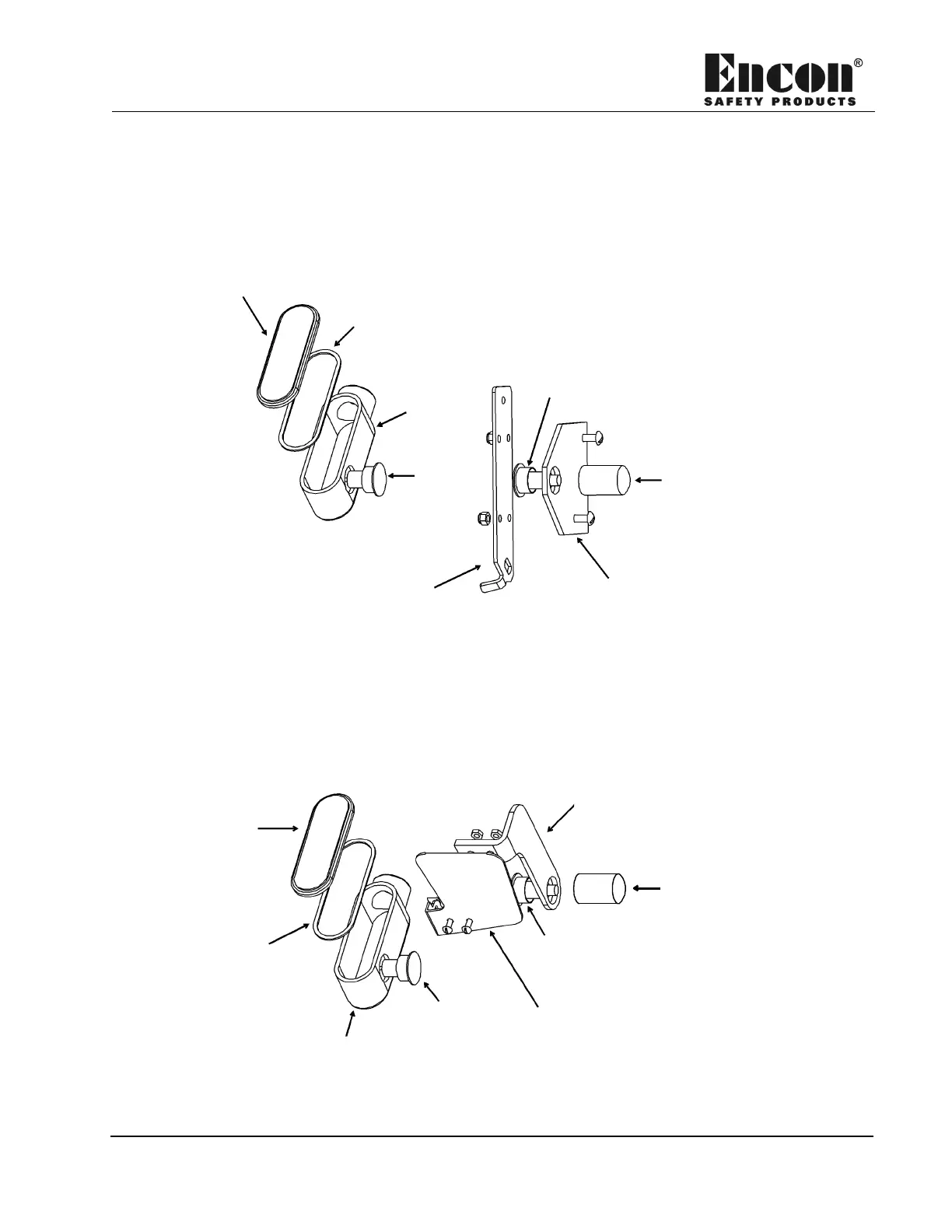

Figure 4-9. Shower MAP
®
Switch Assembly
Cover
00013448
Bracket
00014715
Magnet Cap
00013007
Gasket
00013474
Magnet
00013324
Unilet
00013800
Switch
00013325
Push Plate
(for reference - not included in MAP®
Switch assembly)
Figure 4-10. Eyewash MAP
®
Switch Assembly
