Encore E4 - 10 Pin, Main Connector

E4 IN REV. A
4

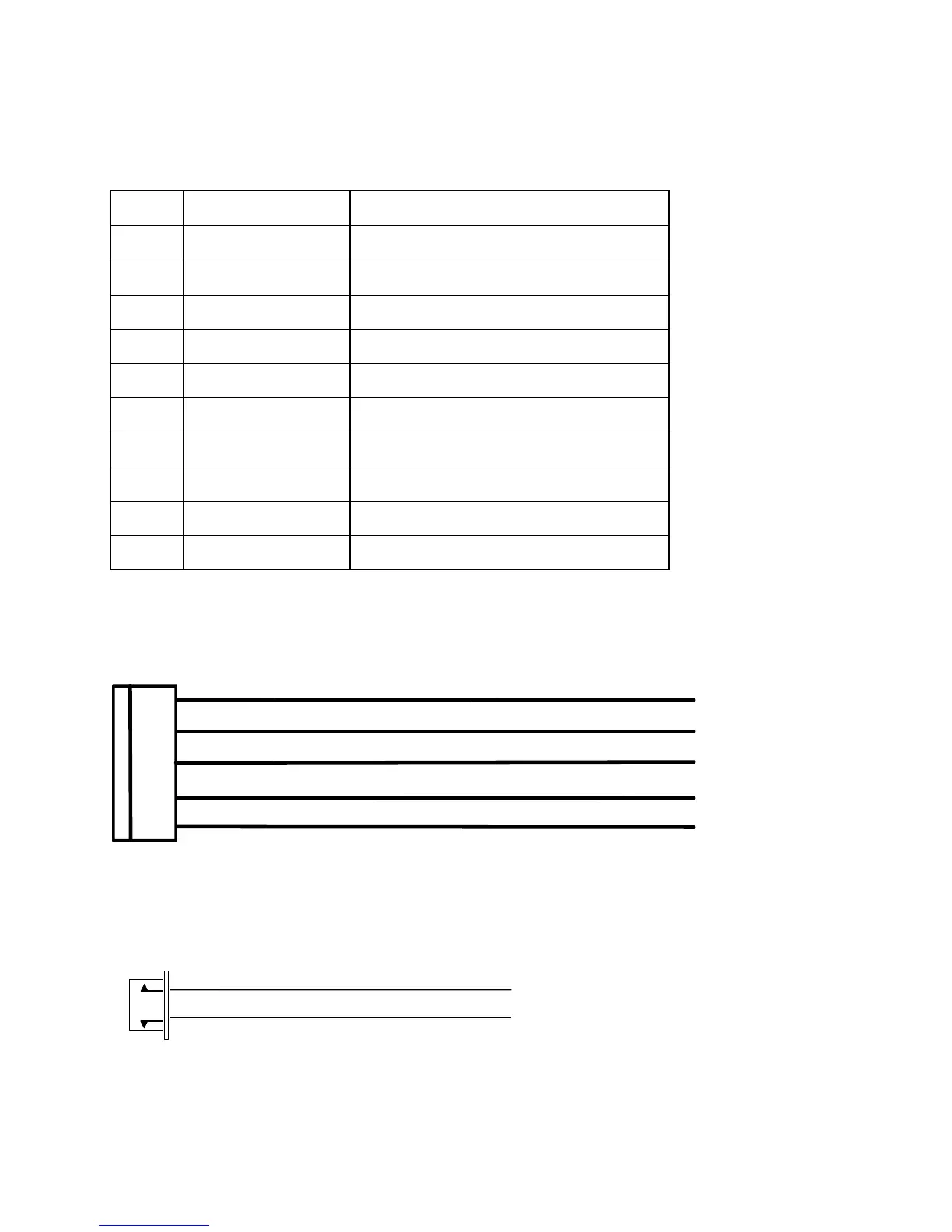

10 Pin, Main Connector
Pin #
Wire Color
Specification
1
White
(-) Dome Light Output
2
Gray
Channel 3Trunk Output (-)
3
White / Blue
Channel 4 (-) Aux Output
4
Pink
2 Step Unlock Output
5
Orange
Ground Output (-) when armed
6
Green
Negative (-) Door Trigger
7
Yellow
Ignition: 12 Volt (+) with key ON
8
Violet
Positive (+) Door Trigger
9
Black / Blue
Channel 5 Programmable Output (-)
10
Blue
Zone 2, (-) Hood / Trunk Trigger
5 PIN MAIN POWER HARNESS
WHITE: PARKING LIGHT OUTPUT
BLACK : MAIN SYSTEMS GROUND
BROWN : POSITIVE SIREN OUTPUT
RED : FUSED 12 VOLT (+) BATTERY POWER
BLUE / BLACK: (-) HORN OUTPUT
3 PIN, DOOR LOCK CONNECTOR
1. Blue Wire
3. Green Wire
( - ) Lock Pulse
( + ) Unlock Pulse
( - ) Unlock Pulse
(+) Lock Pulse
