Encore E4 - Programming Transmitter

E4 IN REV. A
9

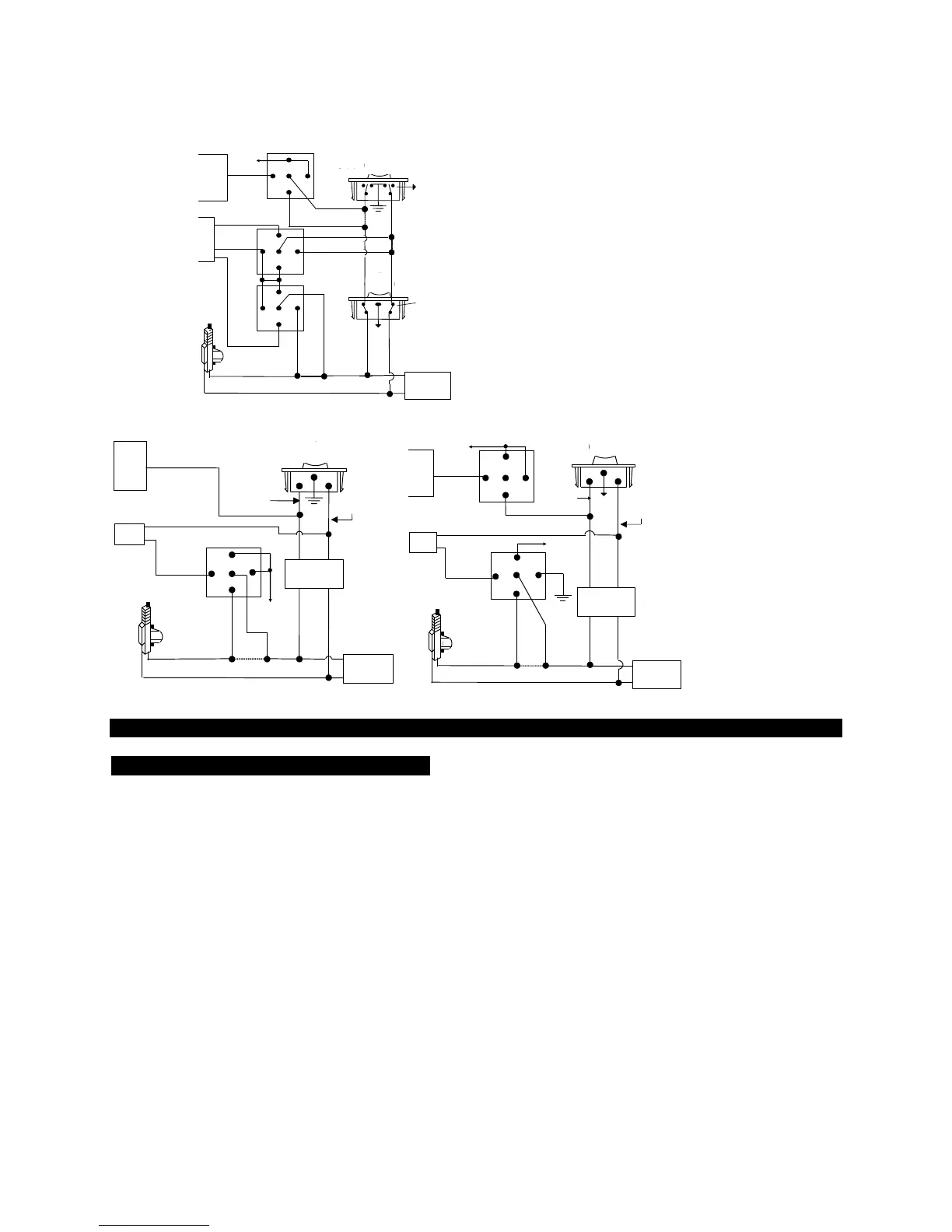

2 STEP DOOR UNLOCK WIRE CONNECTION FOR
GROUND SWITCHED DOOR LOCKS
Cut Existing Unlock
Wire
X
Lock
Unlock
OEM Door Master Lock Switch
To All Other
Door Lock
Motors
White/Green
Wire
OEM
Driver's
Door Lock
Motor
Existing Neg.
Lock Wire
Existing Neg.
Unlock Wire
86
30
85
87
87a
+ 12V
Green Wire
Door Lock
Blue Wire
Door Unlock
OEM Door
Lock Relay
H2/13:
22-Pin
Plug
From
Alarm
H9:
3 Pin
Plug
To
Alarm
2 STEP DOOR UNLOCK WIRE CONNECTION FOR
POSITIVE SWITCHED DOOR LOCKS
Cut Existing Unlock
Wire
X
Lock
Unlock
OEM Door Master Lock Switch
To All Other
Door Lock
Motors
White/Green
Wire
OEM Driver's
Door Lock
Motor
+ 12V
Existing Pos.
Lock Wire
Existing Pos.
Unlock Wire
30
87a
87
86
85
+12V
+ 12V
OEM Door
Lock Relay
86
30
85
87
87a
Green Wire
Door Unlock
Blue Wire Door Lock
H2/13:
22-Pin
Plug
From
Alarm
H9:
3 Pin
Plug
To
Alarm
PROGRAMMING
PROGRAMMING TRANSMITTER:
Note: This mode will only retain the last 4 remote transmitters programmed. If the transmitter memory is exceeded,
the security system will start deleting transmitters from memory in chronological order.
1. Turn the Ignition 'switch ‘OFF/ON’ 4 TIMES and stay in ON position.
“Within 15 seconds”.
2. Push the Valet switch 4 times and hold it on the 4th push until a long chirp is heard then release the valet switch.
You are now in the Transmitter programming mode.
3. Press and hold any button of the transmitter until the siren responds with a confirming chirp, indicating the signal
has been stored into memory.
4. If you have additional transmitters (up to 4) that need to be programmed, repeat step 3 for each transmitter.
Exit: Turn Ignition to 'OFF' position, or leave it for 15 seconds. 3 long chirps & 3 parking light flashes will confirm exit.
2 STEP DOOR UNLOCK WIRE CONNECTION FOR
5 WIRE ALTERNATING DOOR LOCKS
+12V
Cut the Existing
Lock Wire
Cut Existing Unlock
Wire
X
Cut the Unlock Wire
Lock
Unlock
OEM Door Master Lock
Switch
OEM Slave
Door Lock
Switch
+12V
Lock
Unlock
To All Other
Door Lock
Motors
H2/13:
22-Pin
Plug
From
Alarm
Pink Wire
x
X
Blue Wire
OEM Driver’s
Door Lock Motor
+ 12V
85
86
87
87a
30
30
87
85
87a
86
30
87
85
87a
86
Green Wire
H9:
3 Pin
Plug
To
Alarm
Red +12V
