Encore E4 - 3 Pin Door Lock Connector (Maximum 500 Ma Output); Yellow Wire -Ignition Input - ( + ); Black; Blue Wire- (-) 200 Ma Timer Control Channel 5

E4 IN REV. A
8
Yellow wire –Ignition Input – ( + )
Connect this wire to any fused 12V positive source that comes on when the ignotion of the vehicle is ON. Please
look for true Ignition and make sure the wire does not come ON with the accessory position of the Ignition Key. 12V
when crank and running.
Violet wire – Positive Door Switch Sensing Input (Zone 3)–
This wire is the positive trigger input wire for positive door pin switch. This wire is connection for "positive" type
factory door pins(typical FORD MOTOR). Locate the "common wire" for all door pins and make the connection of
the VIOLET Wire here.
Black / Blue Wire– (-) 200mA Timer Control Channel 5
(See Alarm Feature Programming) This wire is built-in user-programmable timer output provides a ground through
this wire. Press the transmitter and buttons at the same time. You may program the built-in timer to send a
ground signal for any time interval between 1 second and 2 minutes. For instance, this timer output may be used to
turn on the headlight with the remote control. Also on certain BMW, Mercedes Benz, Jaguar and Volkswagen cars,
you can use this unique timed output to allow remote closure of all power window and sunroof without the need for
an external module!
Blue wire – Ground Instant Trigger Input (Zone 2) –
This wire is the ground trigger input wire for hood and or trunk pin switches.

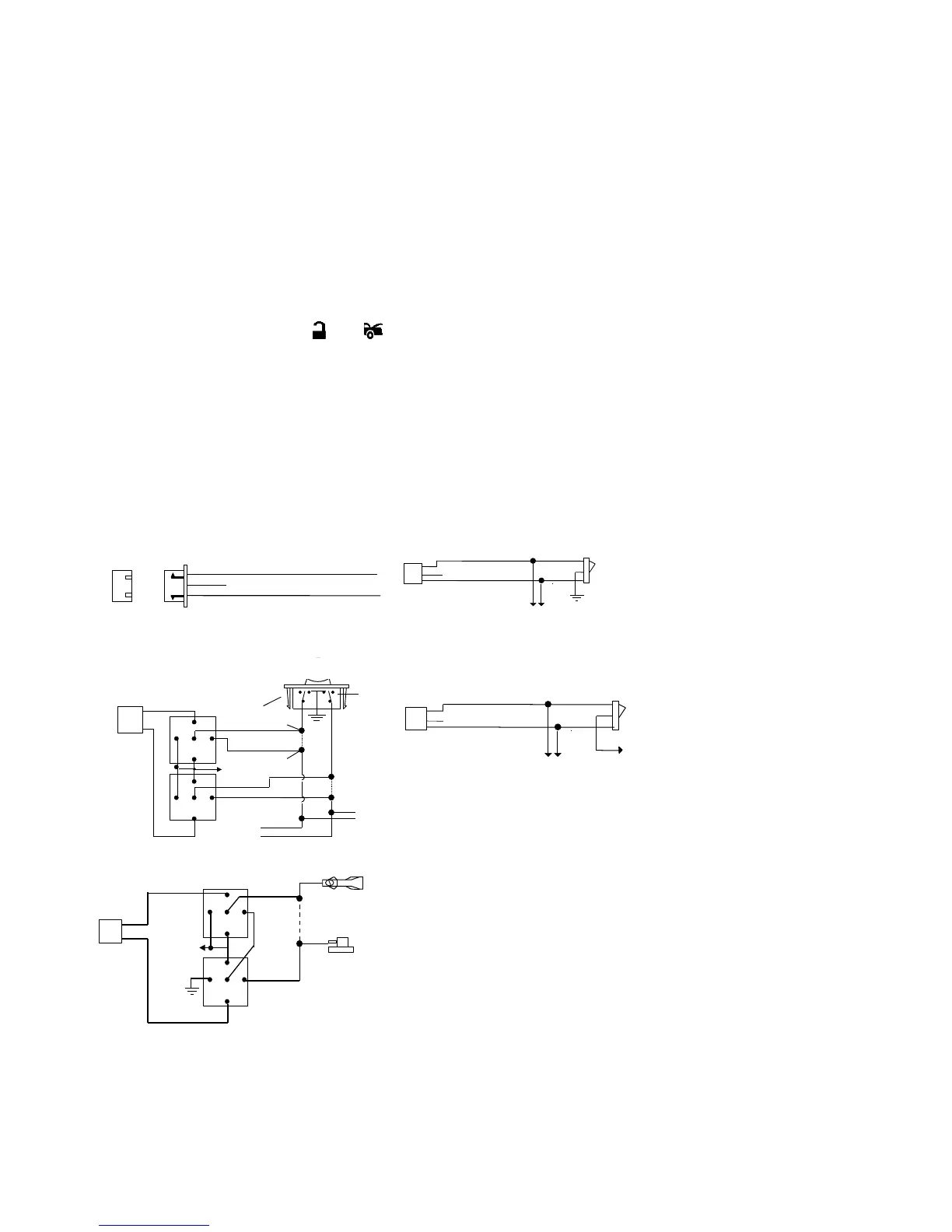

3 PIN DOOR LOCK CONNECTOR: (Maximum 500mA Output)
Blue Wire
Green Wire
( - ) Lock Pulse
( + ) Unlock Pulse
( - ) Unlock Pulse
(+) Lock Pulse
Red(not used)
NEGATIVE TRIGGER DOOR LOCK SYSTEM
Red (not used)
Blue Wire Door Unlock
Green Wire Door Lock
Locking
Master
Switch
To Exiting
Door Lock Relay
VACUUM OPERATED CENTRAL LOCKING
Green Wire
Blue Wire
+12V
X
Cut
Compressor
Door Switch
30
86
87a
85
87
30
86
87a
85
87
3 Pin
Plug To
Alarm
VACUUM OPERATED DOOR
LOCKING SYSTEM:
TYPICAL OF MERCEDES BENZ
AND AUDI.
Locate the wire under the driver's kick panel.
Use the voltmeter connecting to ground, verify
that you have the correct wire with the doors
unlocked, the voltmeter will receive "12 volts".
Lock the doors and the voltmeter will read
"0 volt". Move the alligator clip to +12V and
the voltmeter will receive "12 volts". Cut this
wire and make connections. Be sure to program
door lock timer to 3.5 seconds.
(See Alarn Feature B – 3 Programming.)
+12V
Master Door
Lock Switch
X
X
Splice
Splice
Cut the Existing
Lock Wire
To Door
Lock
Motor
To Slave Door
Lock switches
Cut the Existing
Unlock Wire
3 Pin Plug
To Alarm
5-WIRE ALTERNATING DOOR LOCK
30
86
87a
85
87
30
86
87a
85
87
Red +12V
Green Wire
Blue Wire
POSITIVE TRIGGER DOOR LOCK SYSTEM
Blue Wire Door lock
Green Wire Door Unlock
Locking
Master
Switch
To Exiting
Door Lock Relay
+ 12V
Red (not used)
