Encore ENH924-AUT User Manual

5
2.2 Key Features
The switch provides the following key features:
 Complies with 10BASE-T specifications of the IEEE802.3 standard
 Complies with 100BASE-TX specifications of the IEEE802.3u standard
 Twenty-four RJ-45 ports for 100Base-TX and 10Base-T connectivity
 Every switching port is automatically cross-over detection (MDI, MDI-X
auto-detected)
 Supports full and half duplex operation on all ports
 Wire-speed packet filtering and forwarding rate
 Store-and-forward architecture filters fragment & CRC error packets
 Supports 4K MAC address entries in whole system
 768K Bytes buffer memory
 Supports extensive LED indicators for network diagnostics
 Internal universal switching power supply (100 ~ 240VAC)
 FCC Class A, CE
2.3 The Front Panel

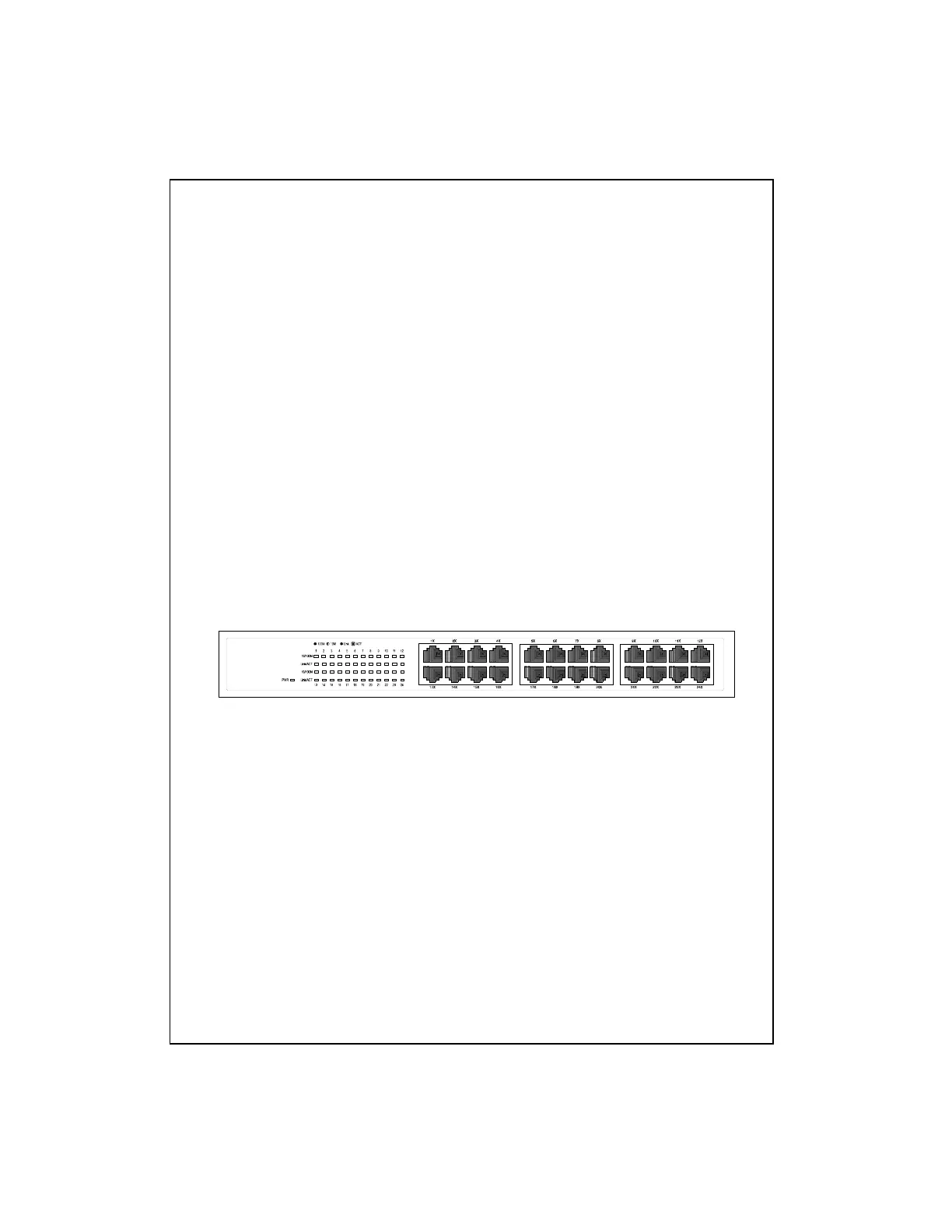

The front panel of the switching hub is shown as below.
The auto-negotiation feature of the switching hub allows each port of the device
running at one of the following four operation modes:
1. 100Mbps full-duplex
2. 100Mbps half-duplex
3. 10Mbps full-duplex
4. 10Mbps half-duplex
Every port is automatically cross-over detection that could allow the switch connect
to PC or switch without cable consideration.

Encore ENH924-AUT Specifications

Network Specifications

standard	IEEE802.3, 10BASE-T
interface	RJ-45 x 24 NWay switching ports
network data rate	Auto-negotiation (10Mbps, 100Mbps)
transmission mode	Auto-negotiation (Full-duplex, Half-duplex)
system buffer memory	768K byte
MAC address table	4K entries
filtering/forwarding rate	10Mbps: 14, 880pps/14, 880pps, 100Mbps: 148, 800pps/148, 800pps

Operating Environment

operating temperature	0°C ~ 50°C (32°F ~ 122°F)
operating humidity	10% - 90%
emission	FCC Class A, CE

Power

power supply	100~240VAC, 50~60Hz
