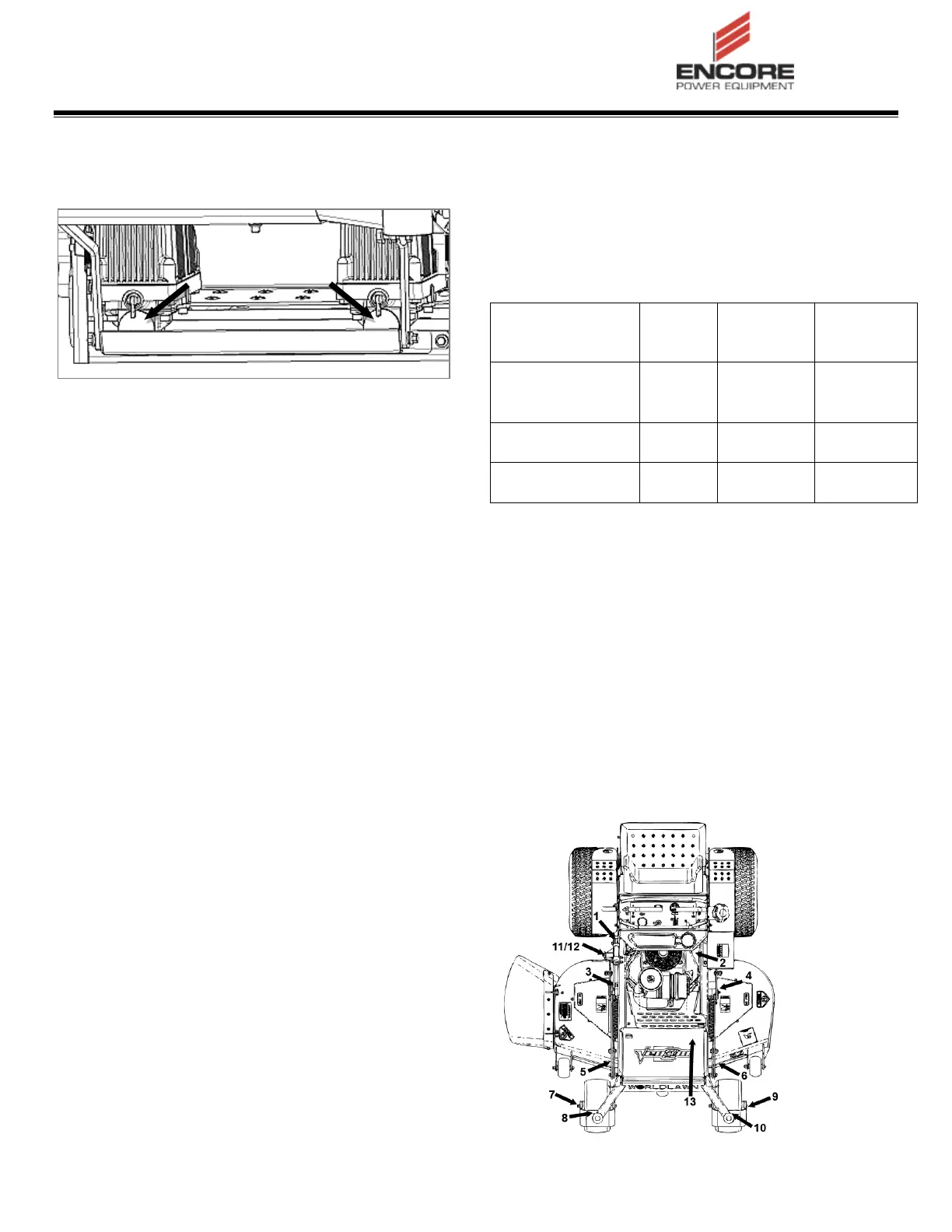

Encore RAGE ER48FX730VX - Check Tire Pressures; Check Condition of Belts; Lubricate Grease Fittings

29
Hydro oil filters are located below hydro release
valves as shown in fig. 2 below.
fig. 2
CHECK TIRE PRESSURES
Service Interval: Every 40 hours
1. Stop engine, wait for all moving parts to stop
and remove key. Engage parking brake.
2. Check tire pressure in.
3. Inflate drive tires to 12-14 psi (83-97 kPa).
4. Inflate caster tires to 15psi.
CHECK CONDITION OF BELTS
Service Interval: Every 40 hours
1. Stop engine, wait for all moving parts to stop
and remove key. Engage parking brake.
2. Look on the top side of the cutting deck to
check the mower blade drive belt condition.
3. Look under the engine deck to check the pump
drive belt condition.
4. Check all idler arms to be sure they pivot freely.
LUBRICATE GREASE FITTINGS
Note: See chart for service intervals.
1. Stop engine, wait for all moving parts to stop
and remove key. Engage parking brake.
2. Lubricate fittings with NGLI #2 multi-purpose
grease.
Lubrication Chart
FITTING
LOCATIONS
INITIAL
PUMPS
NUMBER
OF
PLACES
SERVICE
INTERVAL
1. Motion
Control
Levers
1
2
Yearly
2. Front Caster
Wheel Hubs
0
2
Yearly
3. Front Caster
Pivots
0
2
Yearly
Grease points:
1. Deck Lift Lever
2. Pump Idler Pivot
3. RH Deck Lift Crank
4. LH Deck Lift Crank
5. RH Front Lift Crank
6. LH Front Lift Crank
7. RH Caster Wheel
8. RH Caster Pivot
9. LH Caster Wheel
10. LH Caster Pivot
11. Deck RH
12. Deck RH
13. Floating Idler Pivot
