Site Requirements
E500 MODELS
NOTE: ENDLESS POOLS requires that the E500 Models be installed on a minimum 15 cm thick reinforced concrete pad or structurally sound deck able to support the “dead
weight” found in the specification chart on the back page.
WARNING: The E500 Models must not be shimmed in any manner.
458 cm
226 cm
41 cm 28 cm
41 cm
*132 cm
10 cm
*147 cm
DOOR
DOOR SIDE
4.5 cm
ELECTRICAL CUTOUT
4.5 cm
ELECTRICAL CUTOUT
MAIN DRAIN

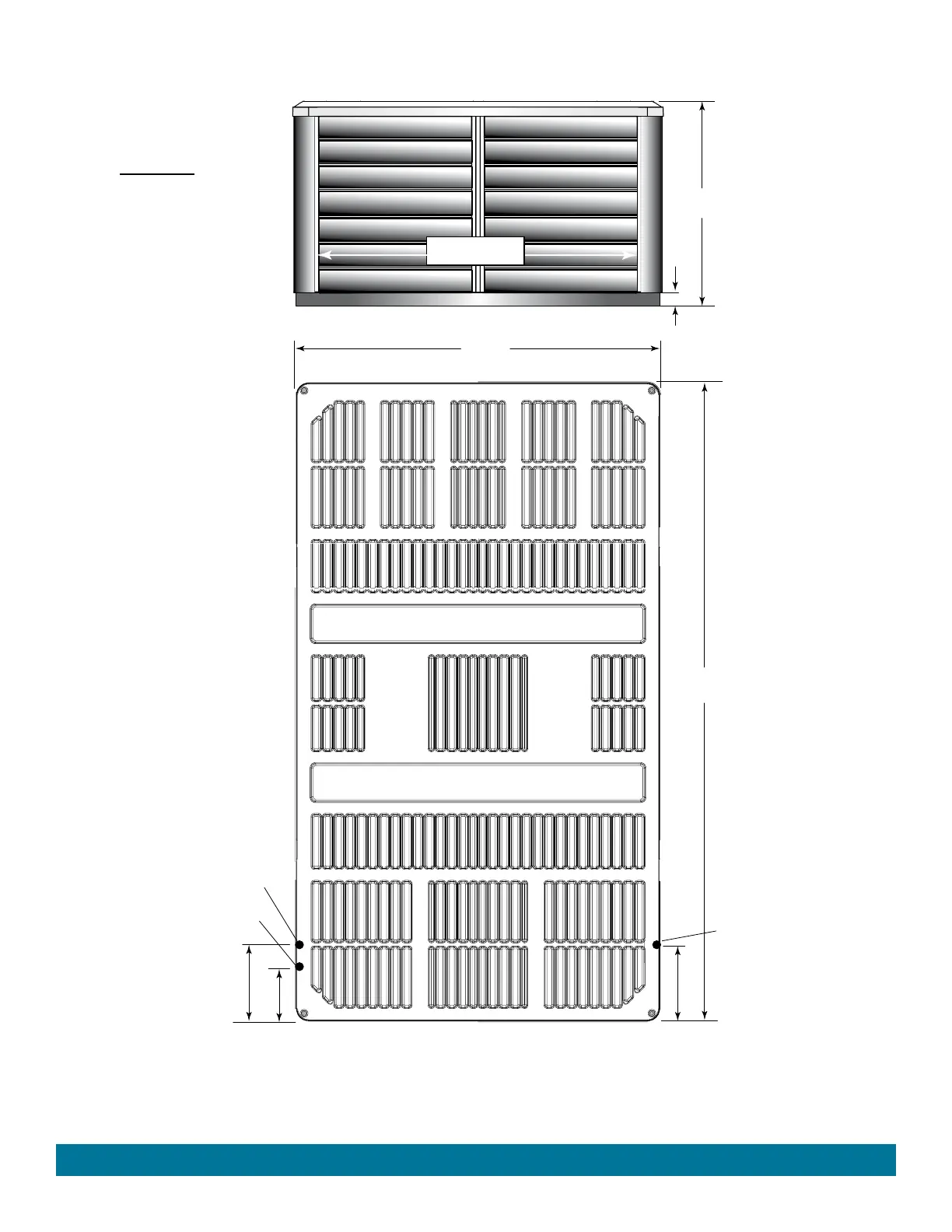

TOP VIEW OF BASE
E500 Models:
*E500-52 = 132 cm tall
*E500-58 = 147 cm tall
*E500-58 = 147 cm tall
Treadmill
