Levelflex FMP56, FMP57 FOUNDATION Fieldbus Mounting
Endress+Hauser 35

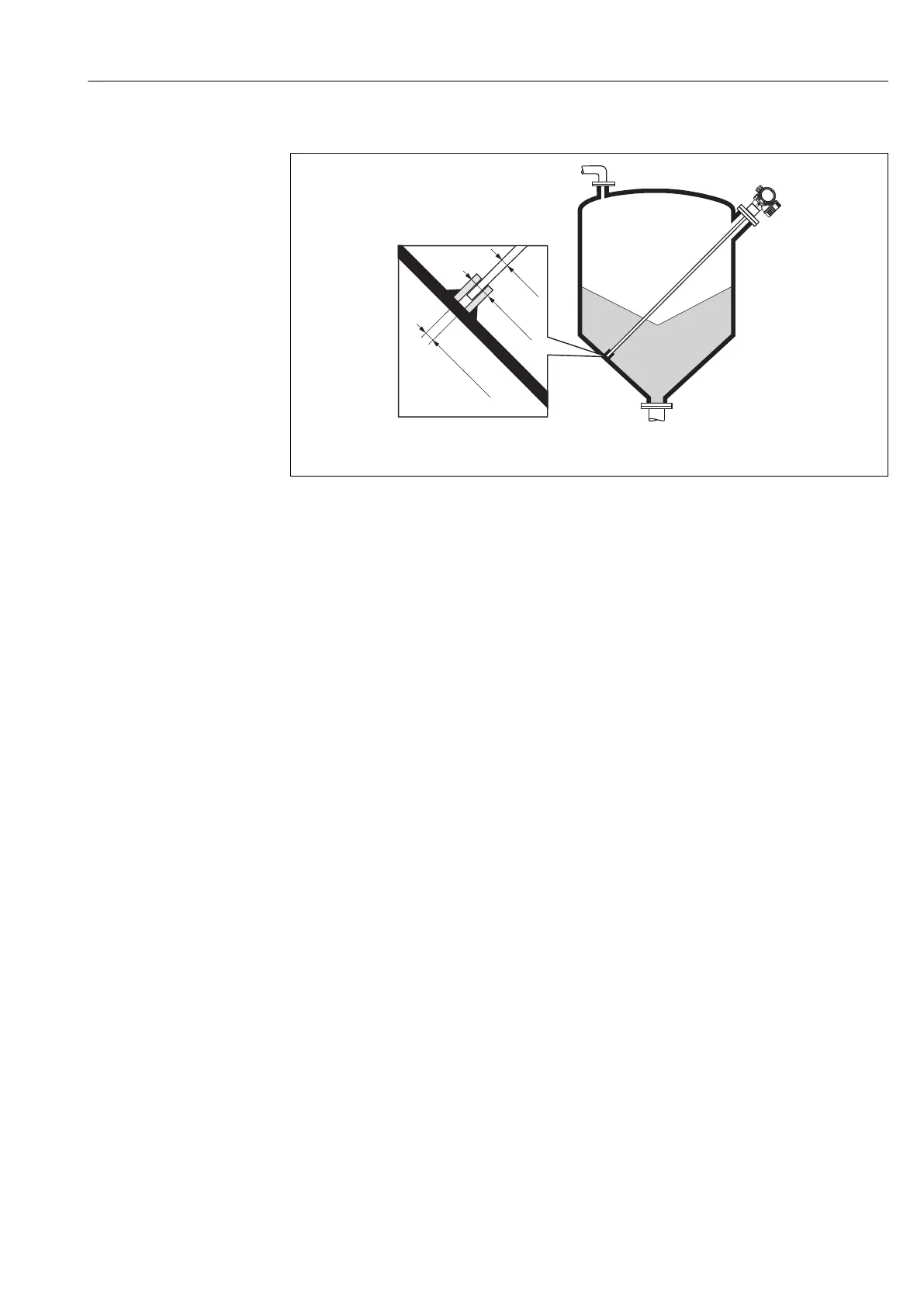

Installation from the side
Ø16
(Ø0.63)
Ø16.5(0.65)
Ø<26
(Ø<1.02)
mm(in)
A0014140
• If installation from above is not possible, the Levelflex can also be mounted from the
side.
• In this case, always fix the rope probe →  32 .
• Support rod probe if the lateral loadbearing capacity is exceeded →  27. Only fix rod
probes at the probe end →  32.
