Endress+Hauser Soliphant T FTM20 Technical Information

Soliphant T FTM20, FTM21
Endress+Hauser 5

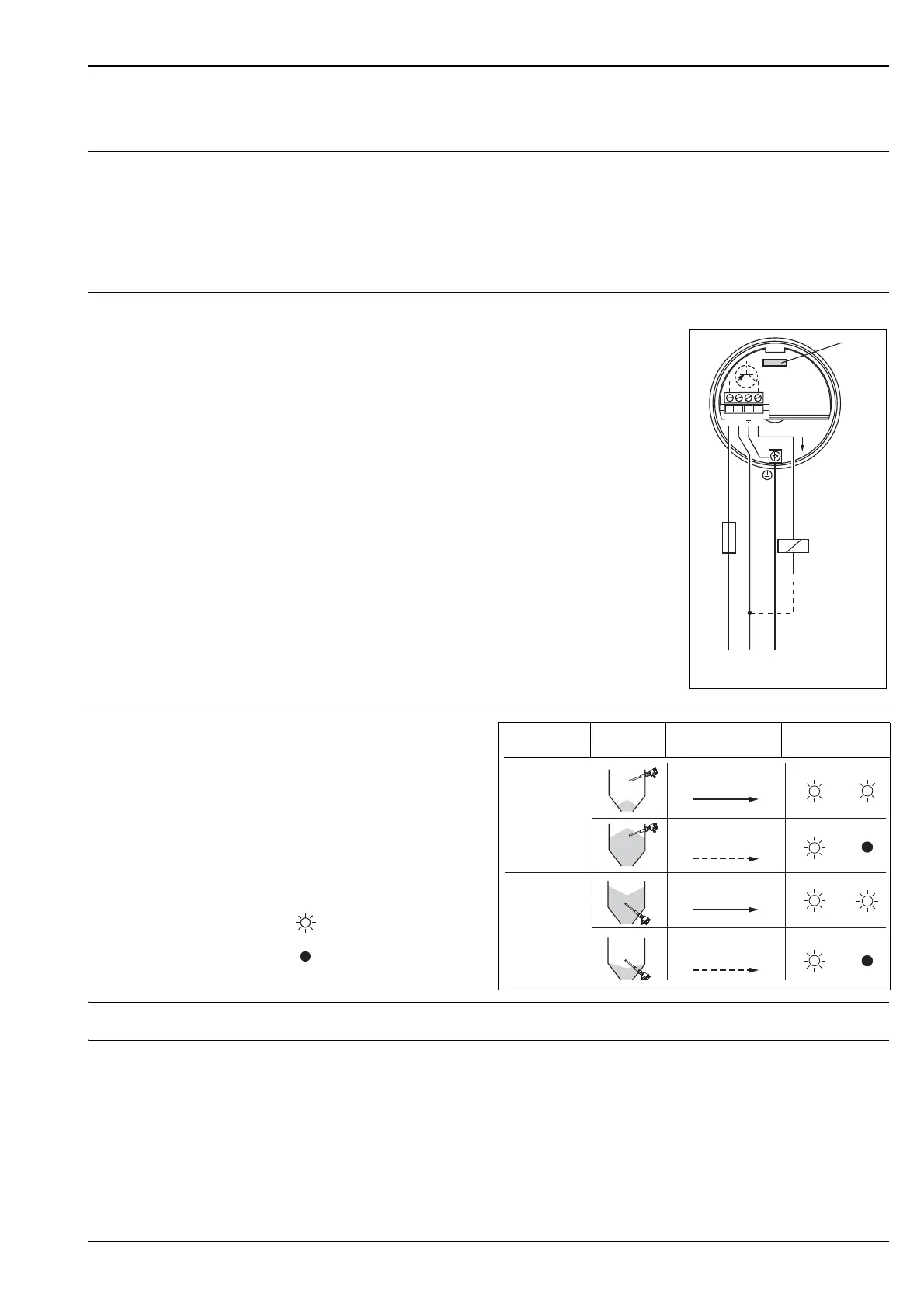

FEM22 electronic insert (DC PNP)
Power supply Voltage DC: 10…45 V
Ripple max. 5 V, 0…400 Hz
Current consumption max. 18 mA
Power consumption max. 0.81 W
Reverse polarity protection
Separation voltage: 2.2 kV
FEM22 overvoltage protection: overvoltage category II
Electrical connection Three-wire direct current connection
Output signal
Signal on alarm Output signal on power failure or in the event of device failure: < 100 μA
Connectable load • Load switched via transistor and separate PNP connection
• Load current: max. 45 V (cyclical overload and short-circuit protection),
continuous max. 350 mA
• Residual current: < 100 μA (for blocked transistor)
• Capacitive load: max. 0.5 μF for 45 V, max. 1.0 μF for 24 V
• Residual voltage: < 3 V (for transistor switched through)
Preferred in conjunction with programmable logic controllers (PLC),
DI modules as per EN 61131-2.
Positive signal at electronics switch output (PNP);
Output blocked at point level.
L00-FTM2xxxx-04-05-xx-xx-002
1 2 3
L+ L–
(+)
–
F
0.5 A
R
FEM22
U – 10 V…45 V(DC)
…
PE (Ground)
Relais,
PLC, ...
Fail-safe
mode
Level Output signal LEDs
green yellow
IL
< 100 μA
L00-FTL2xxxx-07-05-
xx-xx-000
= Load current
(switched through)
= Residual current
(blocked)
= Lit
= Not lit
L00-FTM2xxxx-04-05-xx-xx-003
MAX
MIN
L+ +
1 3
L+ +
1 3
1 3
1 3
I
L
I
L
< 100 μA
< 100 μA
