Installation Viomax CAS51D
18 Endress+Hauser

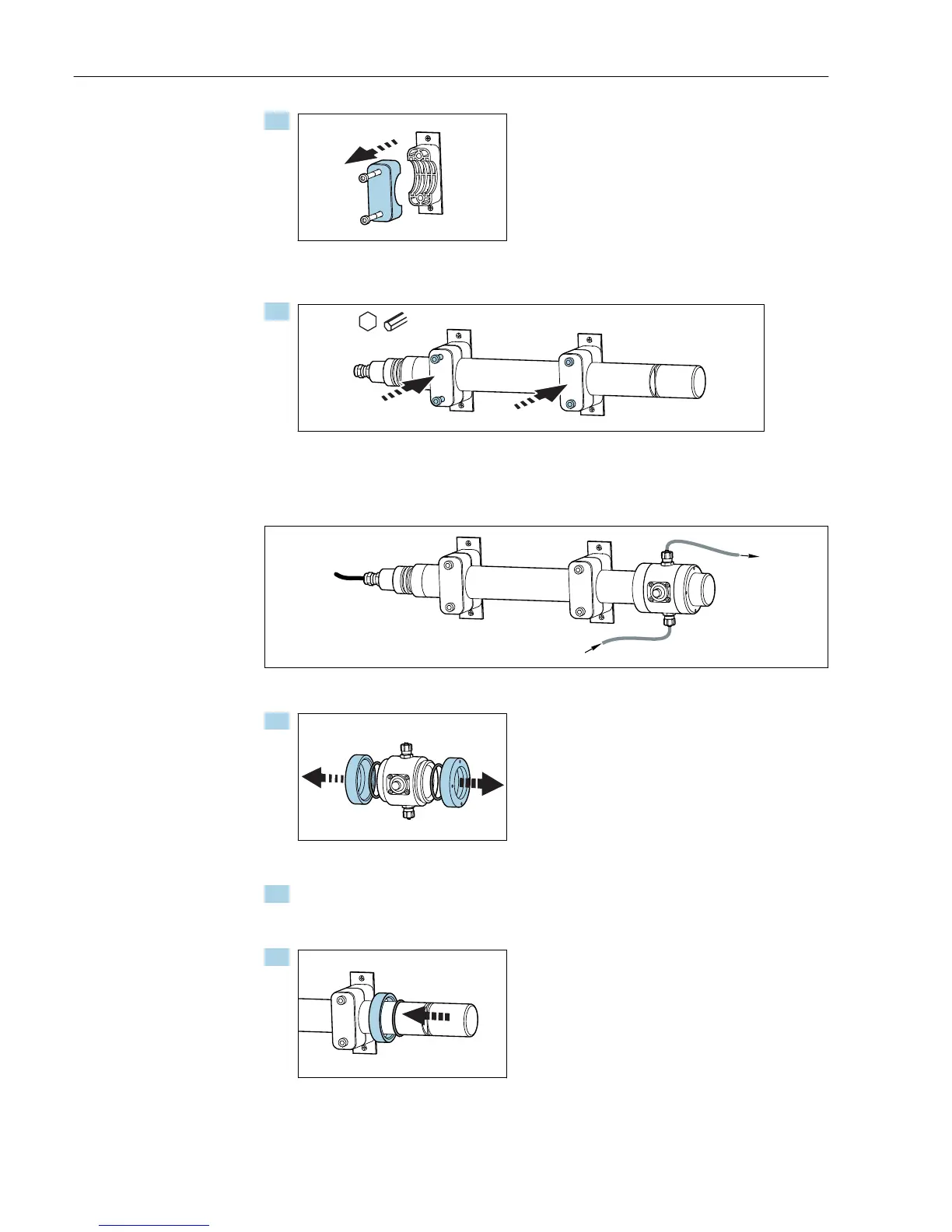

3.
Release the hexagonal nuts on the mounting clamps and remove the top part of the
clamp.
4.
M5
Position the sensor in the mounting clamps and screw on the top parts, tightening by
hand (it should still be possible to move the sensor).
Mount the flow assembly
A0033056
 16 Sensor installed in flow assembly
1.
Release the threaded rings on the flow assembly and remove both O-rings.
2. Check if the silicone grease provided with the kit is permitted for use in your
application. If not, use a grease that is suitable for your application
Lubricate the O-rings.
3.
First slide a threaded ring (thread in the direction of the assembly) onto the sensor,
followed by an O-ring .
