Viomax CAS51D Installation
Endress+Hauser 19
4.

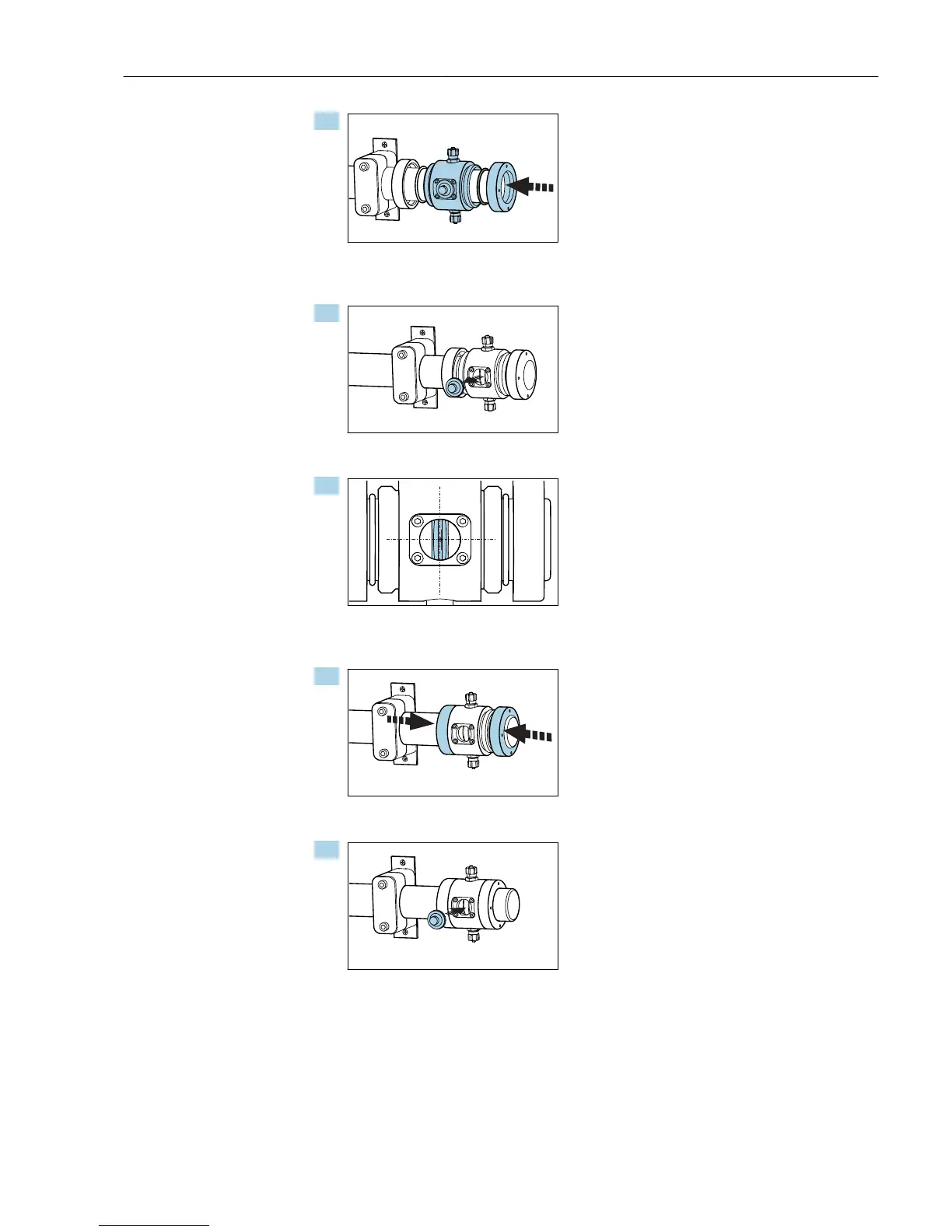

Now slide the assembly onto the sensor, followed by the second O-ring and the
second threaded ring.
5.
Open the cap on the viewing window.
6.
Position the assembly on the sensor in such a way that the cuvette gap is visible in
the center of the window.
7.
Tighten both threaded rings. Ensure that the assembly cannot change position.
8.
The cuvette gap must still be visible in the center of the viewing window:
Close the viewing window again with the cap.
 To guard against loss:
Secure the viewing window to one of the hose connections (no diagram) using
the transparent cord.
