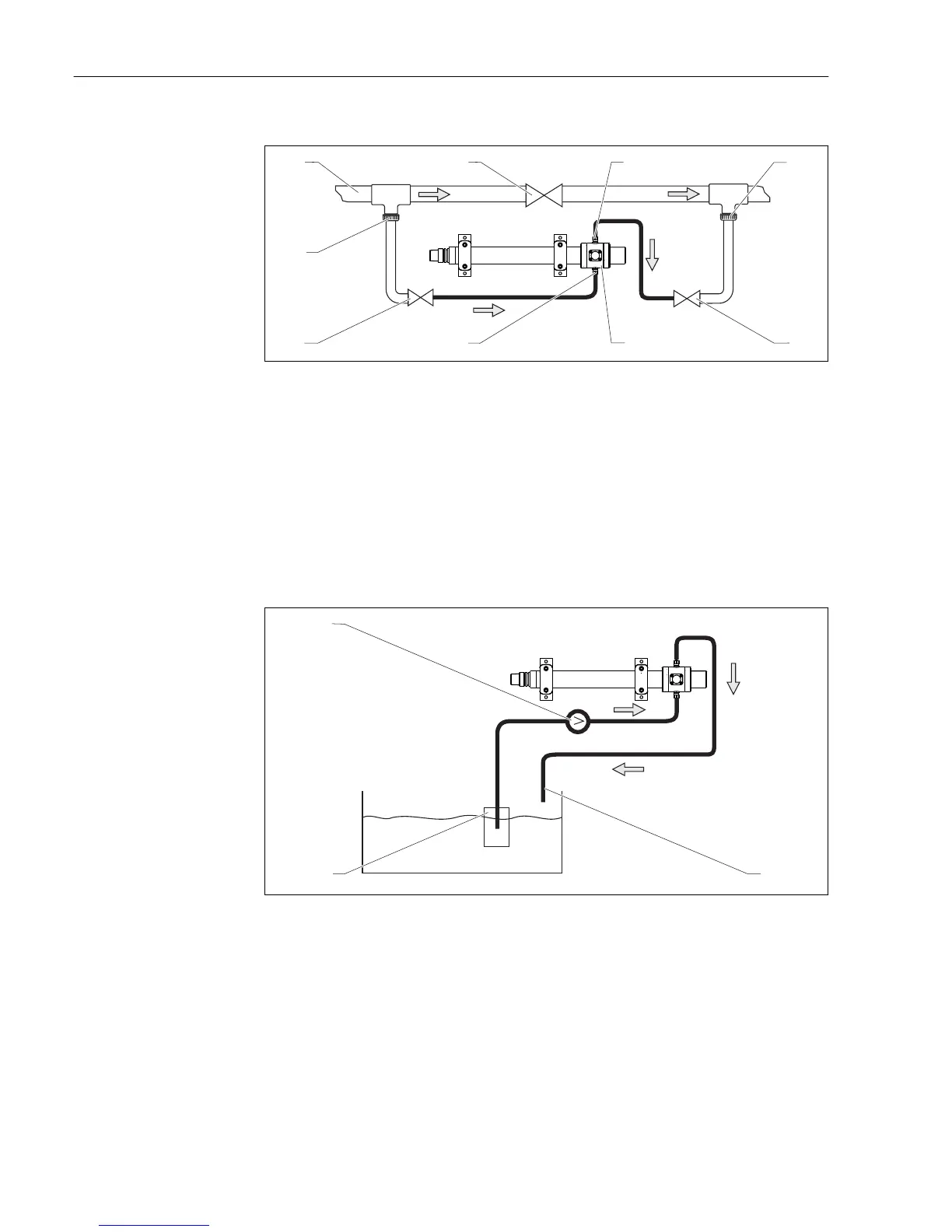

A0013361
1 Main pipe 5 Flow assembly
2 Manually actuated or solenoid valves 6 Medium inflow
3 Medium outlet 7 Medium removal
4 Medium return
‣
Connect the medium inflow and outlet to the assembly's hose connections as shown in
the diagram.
This fills the assembly from below and ensures that the assembly is self-venting.
There must be a minimum flow rate of 100 ml/h (0.026 gal/h). Increased response times
must be taken into account.
As an alternative to bypass operation, you can also direct the sample flow from a filter unit
with an open outlet through the assembly:
