Endress+Hauser VU113 - Page 14

Onsite commissioning VU113 Graphical display with keys and Bluetooth VU112 Graphical display with keys
14 Endress+Hauser
6.1 Display
3.1
3.2
2.1
2.2
2.4
2.5
1.1
1.2
1.3
1.4
2.3
2.6
1
2
3
4
5
ABC_
DEFG
User
HIJK
LMNO
PQRS
TUVW
XYZ
Aa1
3
4
0
1 2
9
5
6
87
20
ESC
-
+ E
A0044661

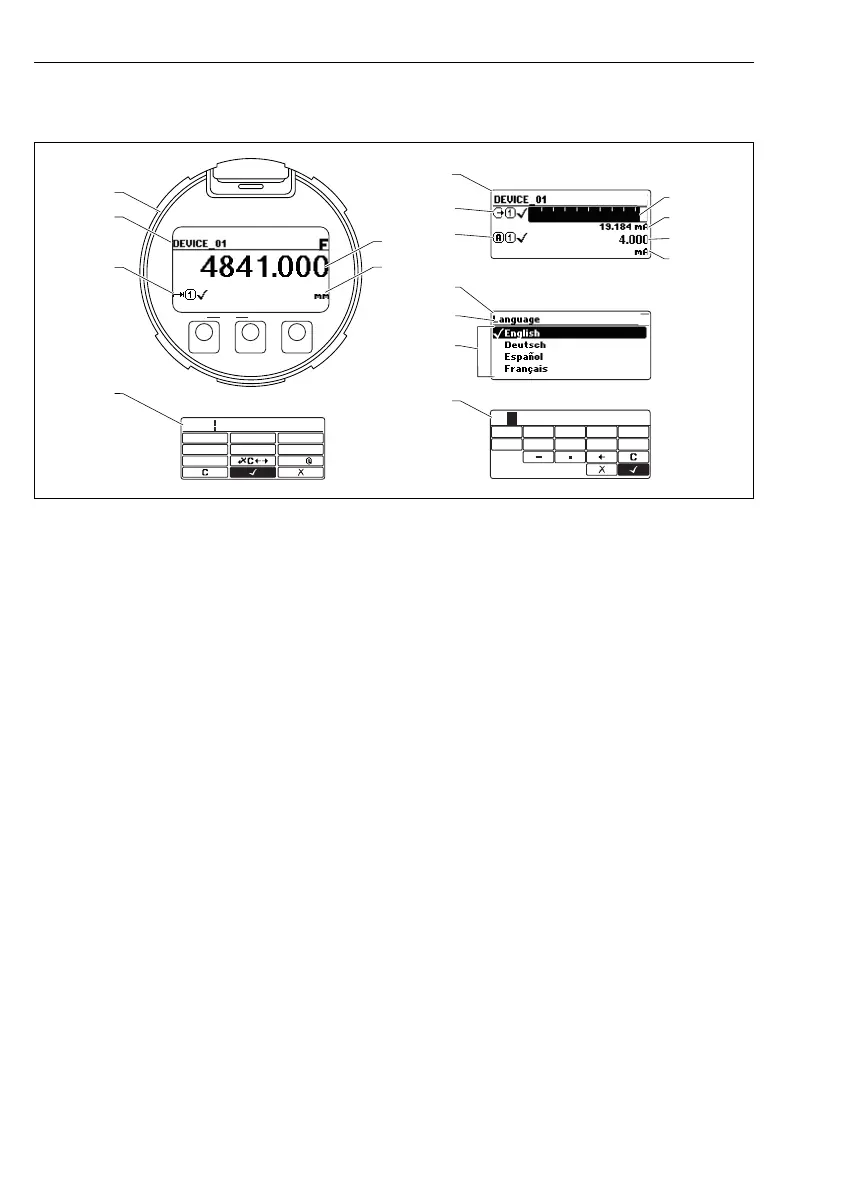

1 Measured value display (1 value max. size)
1.1 Header containing tag and error symbol (if an error is active)
1.2 Measured value symbols
1.3 Measured value
1.4 Unit
2 Measured value display (bar graph + 1 value)
2.1 Bar graph for measured value 1
2.2 Measured value 1 (including unit)
2.3 Measured value symbol for measured value 1
2.4 Measured value 2
2.5 Unit for measured value 2
2.6 Measured value symbol for measured value 2
3 Parameter display (here: parameter with picklist)
3.1 Header containing parameter name and error symbol (if an error is active)
3.2 Picklist;  indicates the current parameter value
4 Input matrix for numbers
5 Input matrix for alphanumeric and special characters
