Eneo KBD-2 - Connectors; Package Contents; Required Installation Tools

4
Multiplexer
up to 8
alarm inputs
up to 4
alarm
outputs
up to 254 cameras including 64 alarm modes
(Sensor)
(Siren)
(Flashing light)
DVR

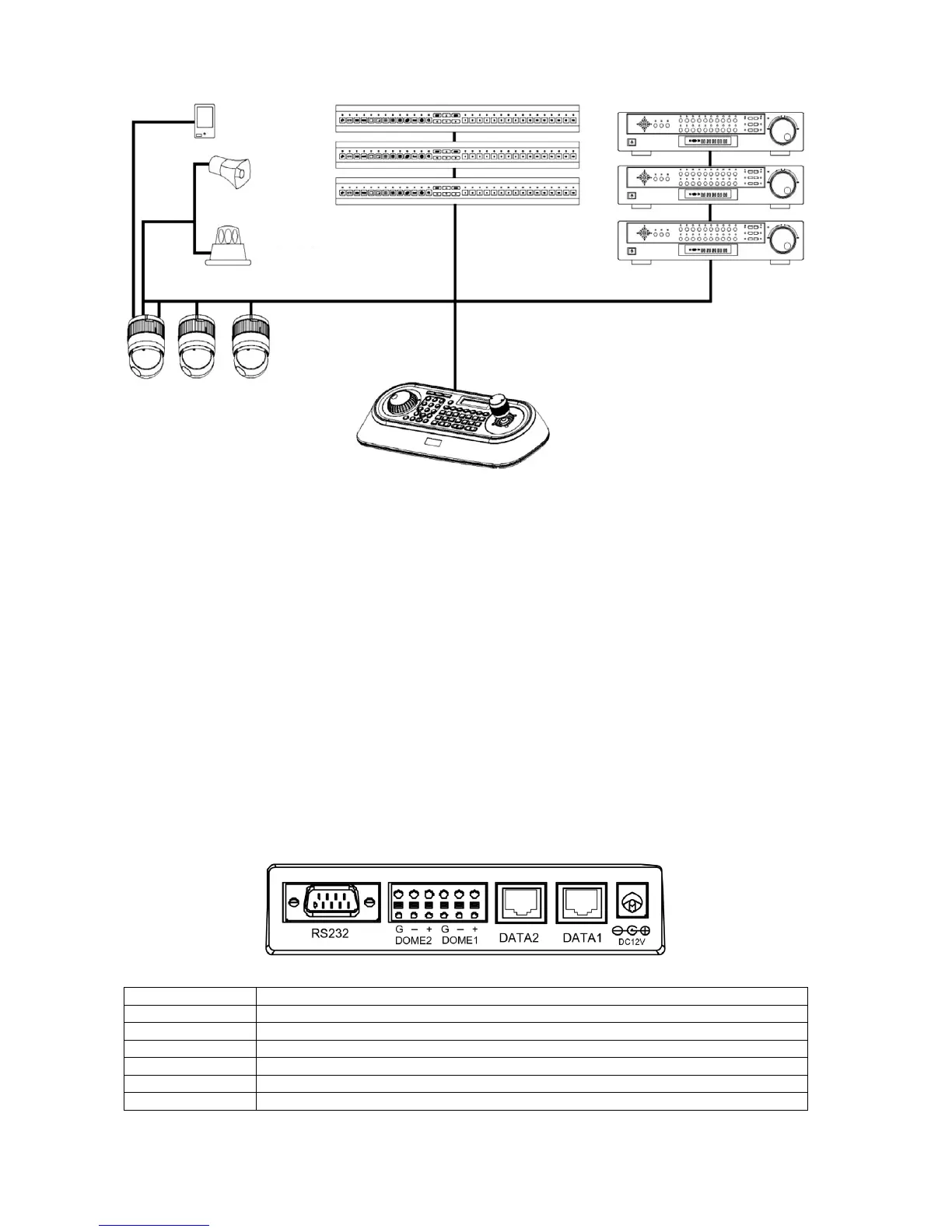

Figure 1: Typical System Configuration
1.2 Package Contents
The package contains the following:
1x Keyboard controller
1x Instruction manual
1x 12VDC Power supply (SMPS)
1x Power Cord
1.3 Required Installation Tools
No special tools are required to install the KBD controller. Refer to the installation manuals for the other items that make up part of your system.
1.4 Connectors
NOTE: Don’t connect the DATA1 PORT and DC12V PORT together.
Connector Usage
RS-232
RS-232: DVR / Upgrade
DOME2
RS-485: DOME / DVR / Multiplexer / Slave Keyboard
DOME1
RS-485: DOME
DATA2
For Junction Box only
DATA1
For Junction Box only
DC12V
For Power Supply
