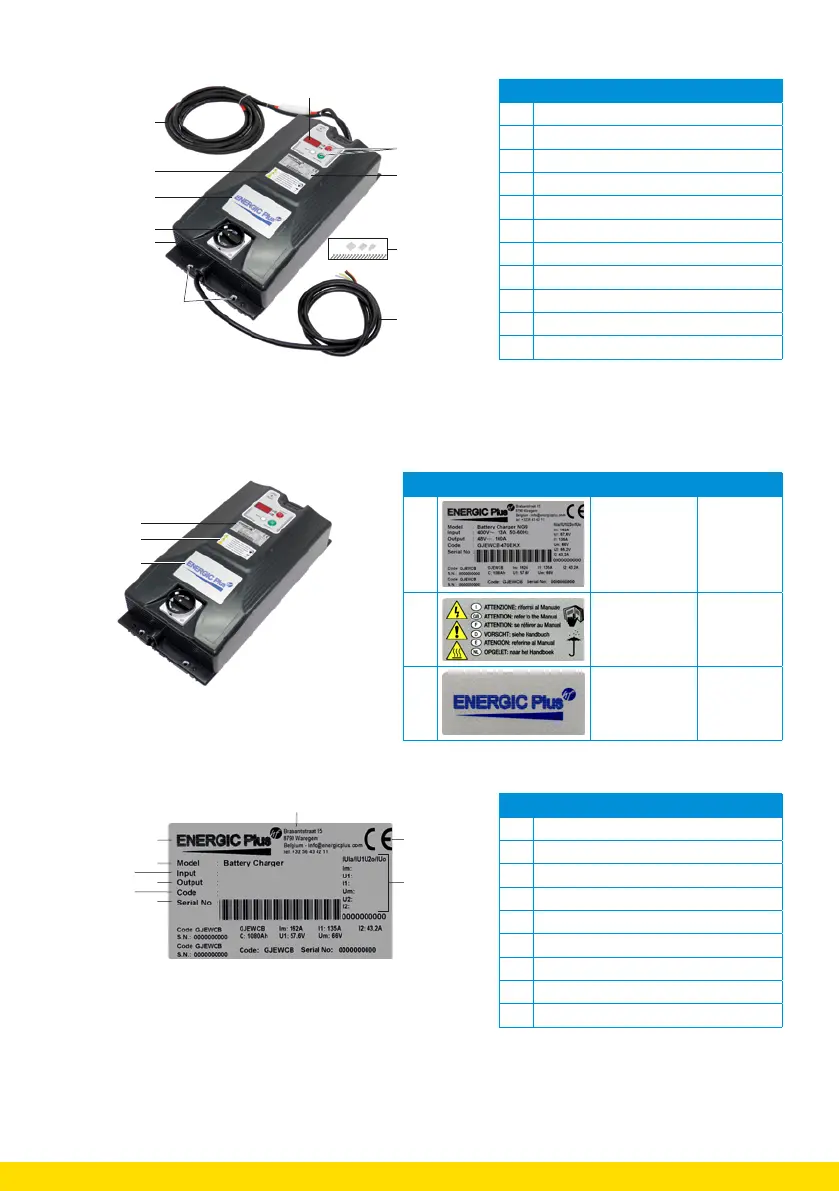

2.2. Main components of the product
1
2
11
10
9
8
7
6
3
4
5
N° Component
1 LED screen
2 Control buttons
3 Type plate
4 Mounting materials
5 Input cable
6 Drill holes
7 Ventilation
8 ON/OFF switch
9 Brand decal
10 Safety warnings
11 Output cable
2.3. Placement of the decals
The safety and warning labels should be placed as described in the pictures below.
If the decals are damaged or missing, replace them.
1
2
3
N° Decal Explanation Reference
1
Type plate 166TA5462
2
Safety decal –
safety warnings
163TA4206
3
Brand decal 166TA3455
2.4. Type plate
1
2
3
4
5
6
9
8
7
N° Explanation
1 Brand
2 Model
3 Input
4 Output
5 Unique code per product.
6 Serial number
7 Additional data of the charger
8 CE marking
9 Address
