Solution 1.8 Insert Installation and Operation Manual 45
Appendix 1: Blower Installation

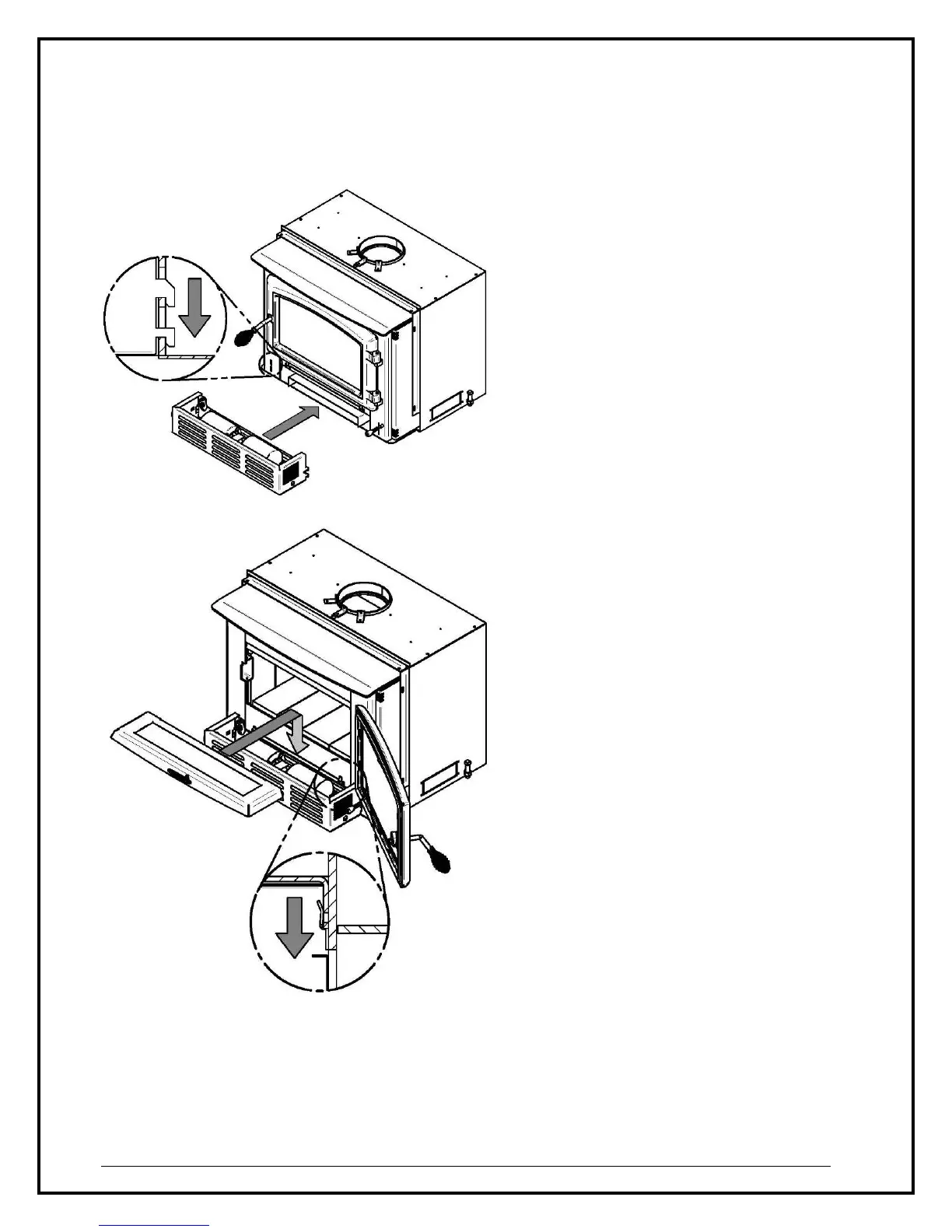

First, attach the fan assembly to the insert
by aligning and inserting the hooks on each
side of the blower housing into the slots
located on the left and right of the blower
opening below the loading.
To assemble the ash lip, open the door to
facilitate the installation. Center the ash lip
with the fan assembly previously installed
and push it against the firebox. Then push
down the rear fold of the ash lip so it clips
into the two (2) brackets welded to the
firebox located below the loading door.
