46 Solution 1.8 Insert Installation and Operation Manual
Appendix 2: Installing the Optional Door Overlay
In order to complete the assembly of your Solution 1.8 wood insert, you need to install the door

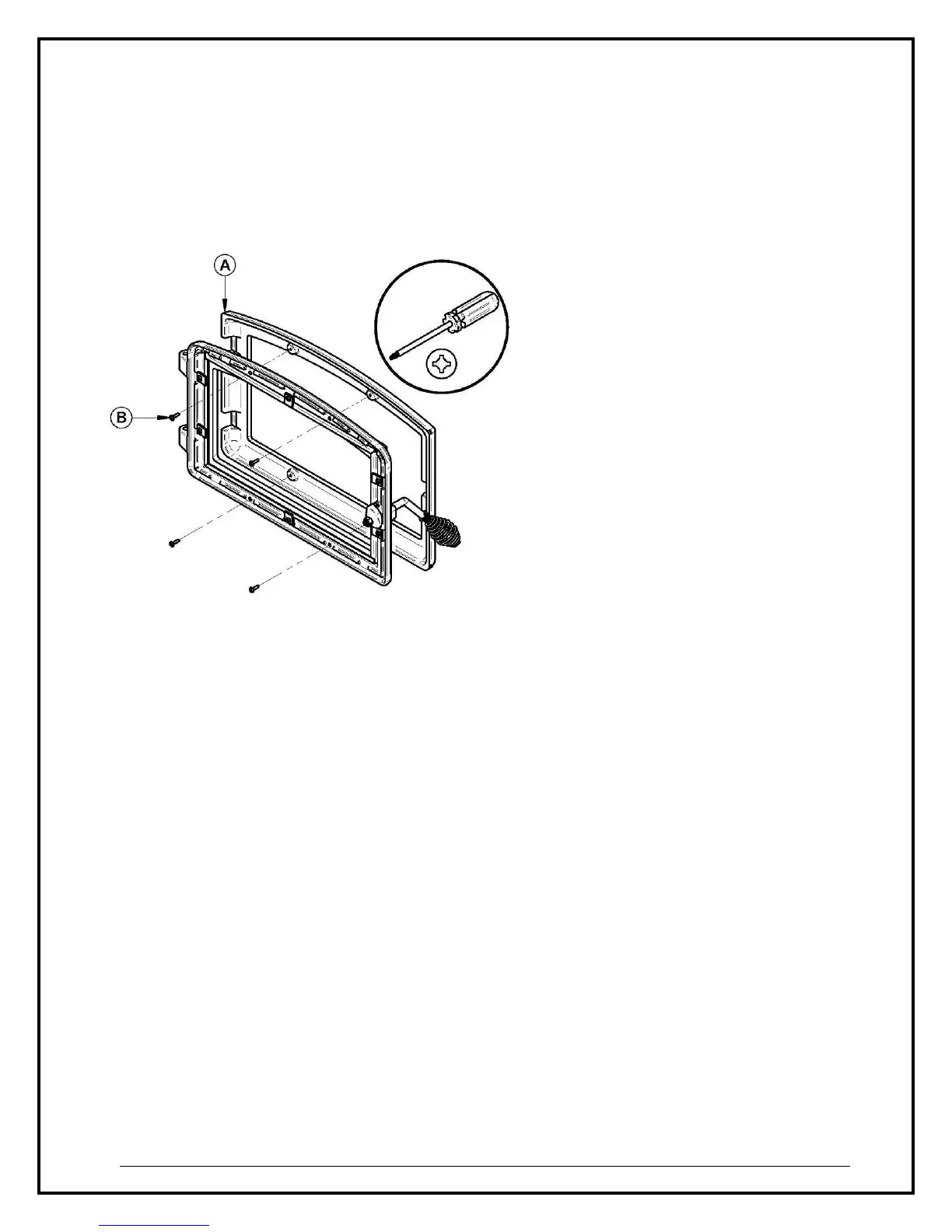

overlay. See figure below for installation instructions:
Position the overlay (A) on the door
frame and secure it from the inside of the
door using the 4 included screws (B).
To facilitate the installation, do not tighten
the screws until they are all installed.
Note: It is not necessary to remove the
glass or any other component to install
the overlay
