Solution 1.8 Insert Installation and Operation Manual 47
Appendix 3: Installing the Optional Fresh Air intake Adapter
(AC01298)
Note: Only remove the knock-out that will be connected to the fresh air inlet.
To install a fresh air intake to the insert, the purchase of accessory AC01298 adapter is required.

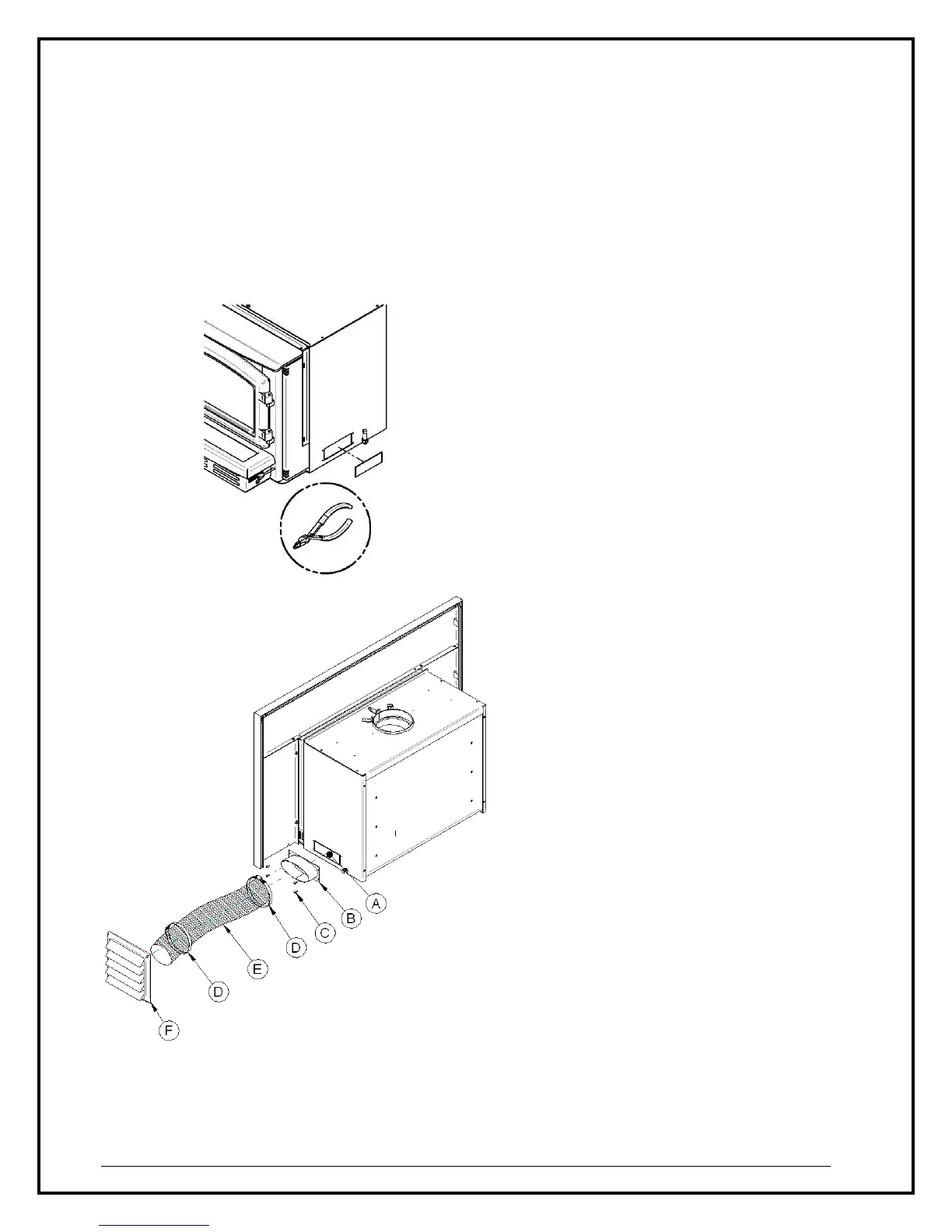

Using pliers, remove the rectangular knock-
out plate (A) located on the left or right side
of the convection air jacket. Choose the side
that is best for your installation.
Then, install the fresh air kit adapter (B) using
4 screws (C). Secure the flexible pipe (E)
(part #AC02090 not supplied) to the adapter
(B) using one of the adjustable pipe clamps
(D). Secure the other end of the pipe to the
outside wall termination (F) using the second
adjustable pipe clamp (D). The outside wall
termination (F) must be installed outside of
the building.
