Installation and Operation Requirements - Solution 2.3
ENGLISH

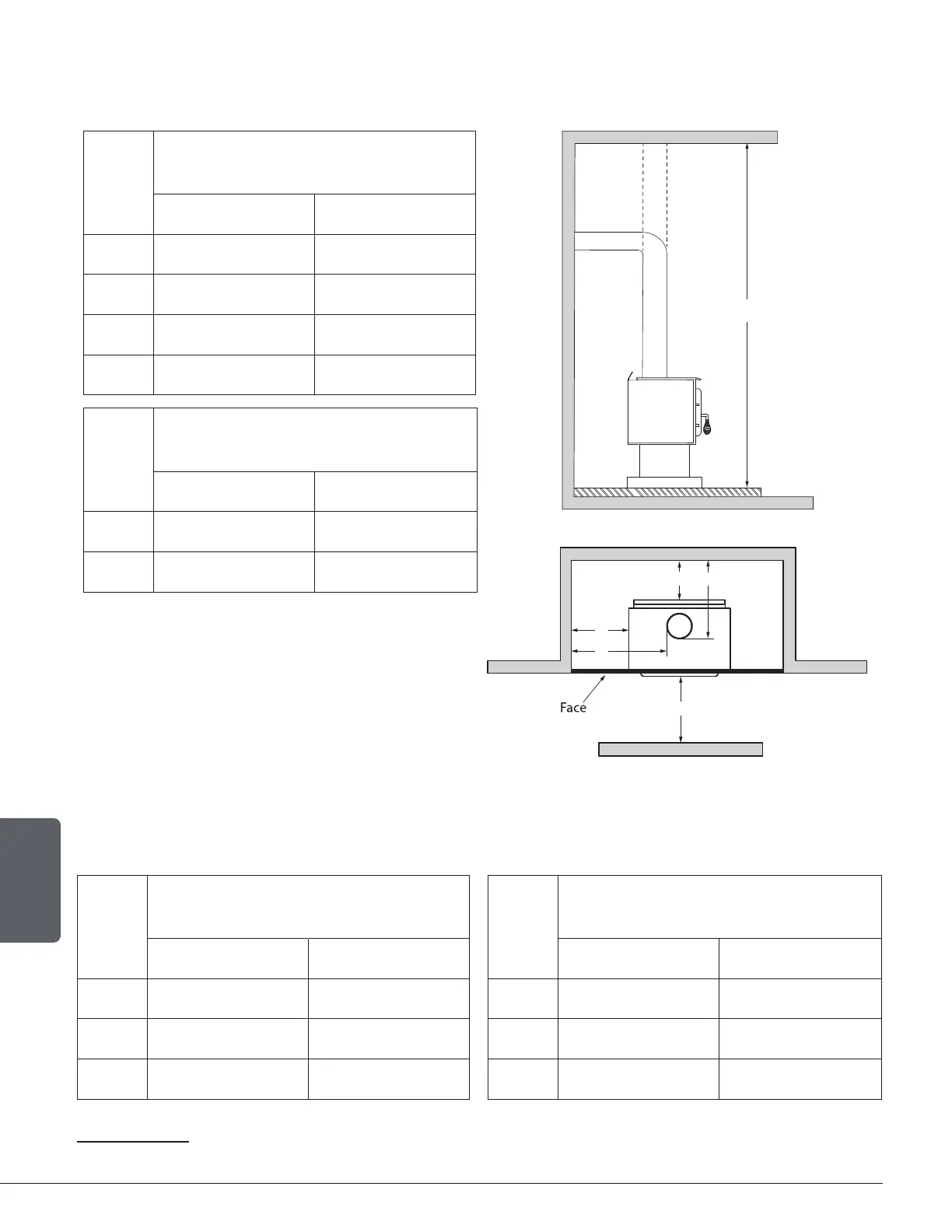

3.1.4 Inside an Combustible Alcove
See section 3.1 for the single wall pipe installation.
APPLIANCE CLEARANCES WITH DOUBLE
WALL PIPE CONNECTOR
Canada USA
A 9" (229 mm) 9" (229 mm)
B 19" (483 mm) 19" (483 mm)
K 48" (122 cm) 48" (122 cm)
L 77" (196 cm) 77" (196 cm)
Ve
Ho
L
DISTANCES
19
FROM PIPE CONNECTOR
WITH DOUBLE WALL PIPE CONNECTOR
Canada USA
D 12 ¼" (311 mm) 12 ¼" (311 mm)
E
28 ¼ (718 mm) 28 ¼ (718 mm)
A
B
E
D
K
3.1.5 Mobile Home
It is strictly forbidden to install a unit with a single wall pipe in a mobile home.
APPLIANCE CLEARANCES WITH DOUBLE
WALL PIPE CONNECTOR
DISTANCES
19
FROM PIPE CONNECTOR
WITH DOUBLE WALL PIPE CONNECTOR
Canada USA Canada USA
A 11" (279 mm) 11" (279 mm) D 14 ¼" (362 mm) 14 ¼" (362 mm)
B 18" (457 mm) 18" (457 mm) E 27 ¼" (692 mm) 27 ¼" (692 mm)
C 11" (279 mm) 11" (279 mm) F 20 ½" (521 mm) 20 ½" (521 mm)
19
The pipe distances listed in this table refer to the distances obtained when the stove is installed in accordance with the appliance clearances
above mentioned.
