Enerzone Solution 2.3 - Dimensions

Page 7
Installation and Operation Requirements - Solution 2.3
ENGLISH
2.3 Dimensions
2.3.1 Stove Dimensions with Square Legs
13 1/2"
343mm
27"
686mm
O
6"
153mm
9 5/8"
245mm

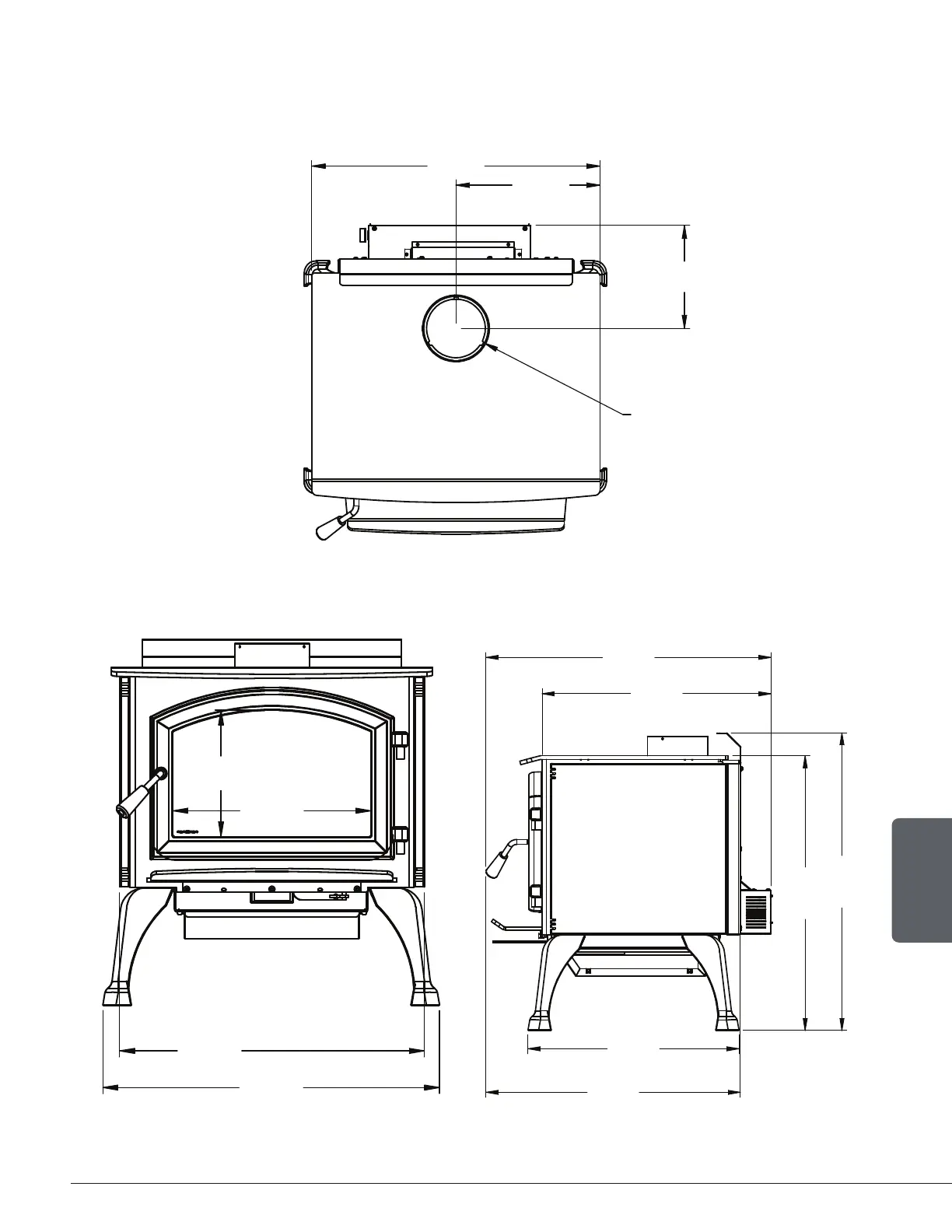

Figure 1: Top View
25 5/8"
651mm
10 5/8"
270mm
16 5/8"
422mm
28 1/4"
718mm
29 1/2"
748mm
23 5/8"
601mm
30 3/4"
781mm
28 3/8"
721mm
21 3/4"
554mm
26 1/4"
667mm
Figure 2: Front View Figure 3: Side View
