Installation and Operation Requirements - Solution 2.3
ENGLISH

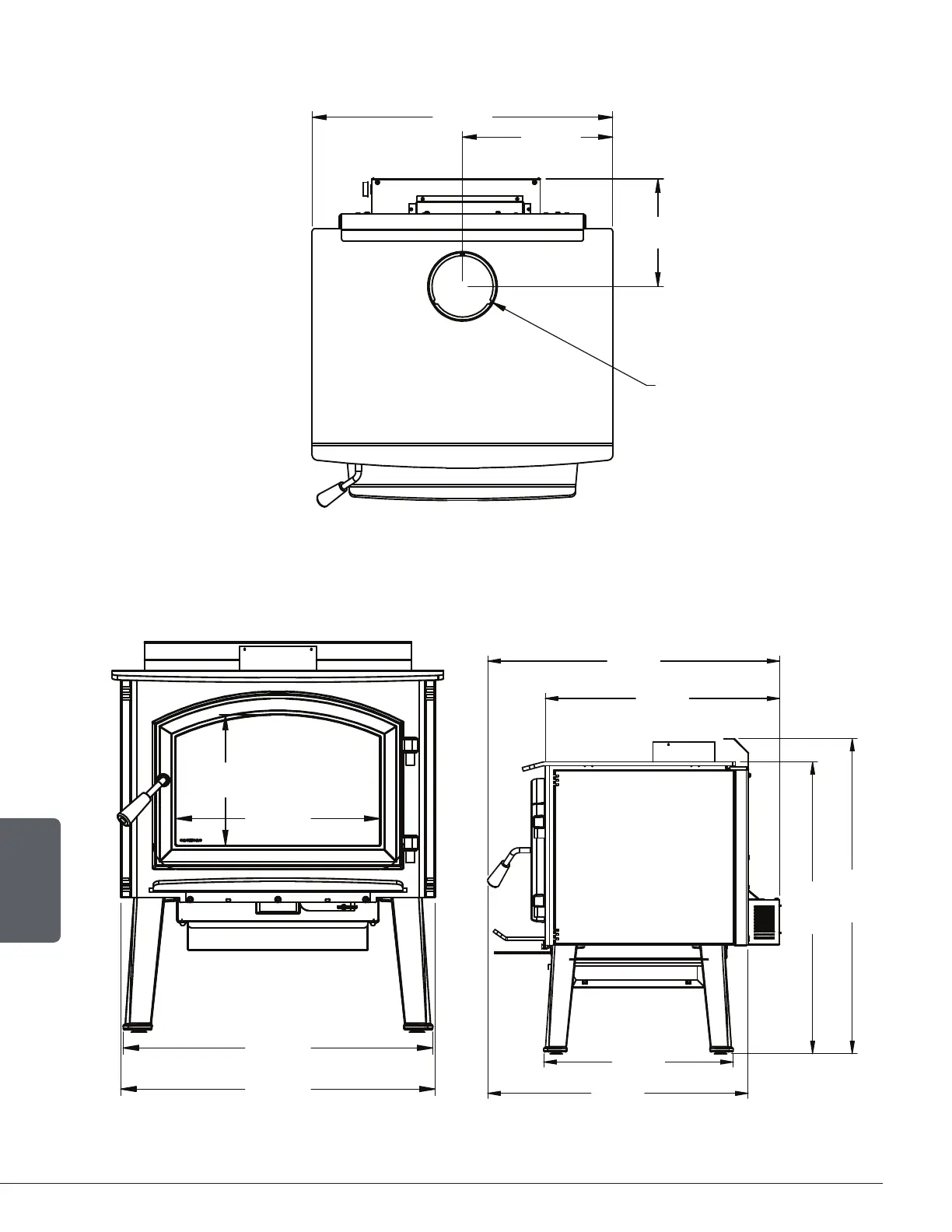

2.3.2 Stove Dimensions with Legs
13 1/2"
343mm
27"
686mm
O
6"
9 5/8"
245mm
Figure 4: Top View
25 5/8"
651mm
10 5/8"
270mm
16 5/8"
422mm
25 1/4"
641mm
29 1/2"
748mm
23 5/8"
601mm
31 3/4"
807mm
29 3/8"
747mm
19 1/8"
486mm
26 1/4"
667mm
Figure 5: Front View Figure 6: Side View
