Installation and Operation Requirements - Solution 2.3
ENGLISH

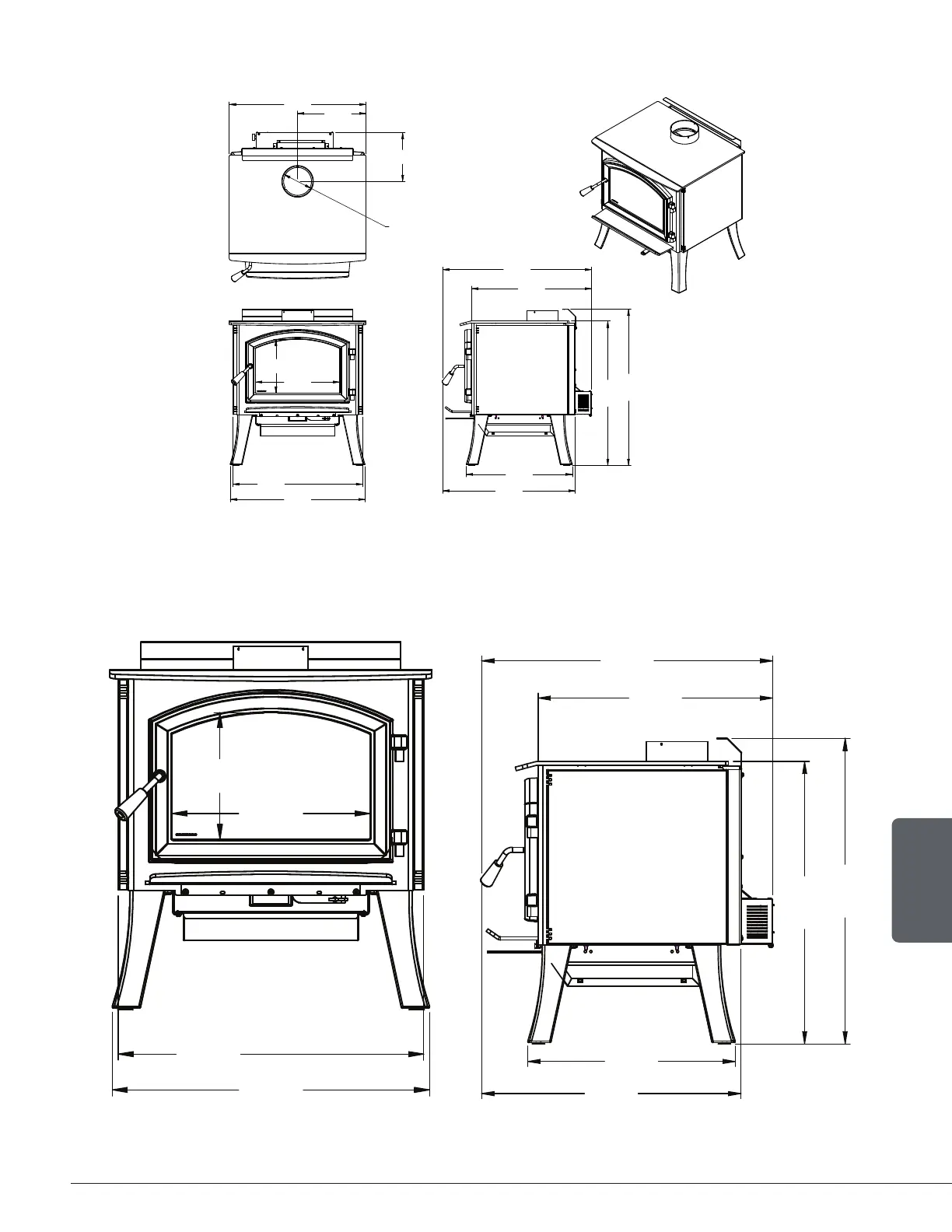

2.3.3 Stove Dimensions with Round Legs
13 1/2"
343mm
27"
686mm
25 5/8"
651mm
O
6"
153mm
10 5/8"
270mm
16 5/8"
422mm
26 5/8"
675mm
9 5/8"
245mm
29 3/8"
746mm
23 5/8"
601mm
30 7/8"
784mm
28 1/2"
724mm
21"
532mm
KIT DE PATTES AC01293
ET AC01294
26 1/4"
665mm
Figure 7: Top View
25 5/8"
651mm
10 5/8"
270mm
16 5/8"
422mm
26 5/8"
675mm
Figure 8: Front View Figure 9: Side View
29 3/8"
746mm
23 5/8"
601mm
30 7/8"
784mm
28 1/2"
724mm
21"
532mm
26 1/4"
665mm
