ENFORCER SK-2323-SDAQ User Manual

ENFORCER Piezoelectric Mullion-Style Outdoor Stand-Alone Keypads
SECO-LARM U.S.A., Inc 3 SECO-LARM U.S.A., Inc. 33 3
LED & Audible Indicators:
Audible Beeps
Keypad Status
1 Long beep
Confirmation
1 Short beep
Key press
2 Short beeps
Invalid entry
3 Short beeps
User code/card* denied
Constant short beeps
Optical tamper triggered
6 short + 1 long beep
All user codes deleted or program code length changed
No beep when key is pressed
Wrong code lockout
LED
Keypad Status
Blue
Power on, standby mode
Yellow
Programming mode
Green
Waiting to program code/card* (code+card access mode)
Red
Code/card* already present
Green
Relay 1 activated
Red
Relay 2 activated
Green
Both relays activated
Green flashing
Restoring factory defaults
Green flashing
Waiting for code/card* (code+card access mode)
Green flashing
Wrong code/card* used
Off
Power off
Parts List:
*Card operation with SK-2323-SPAQ only

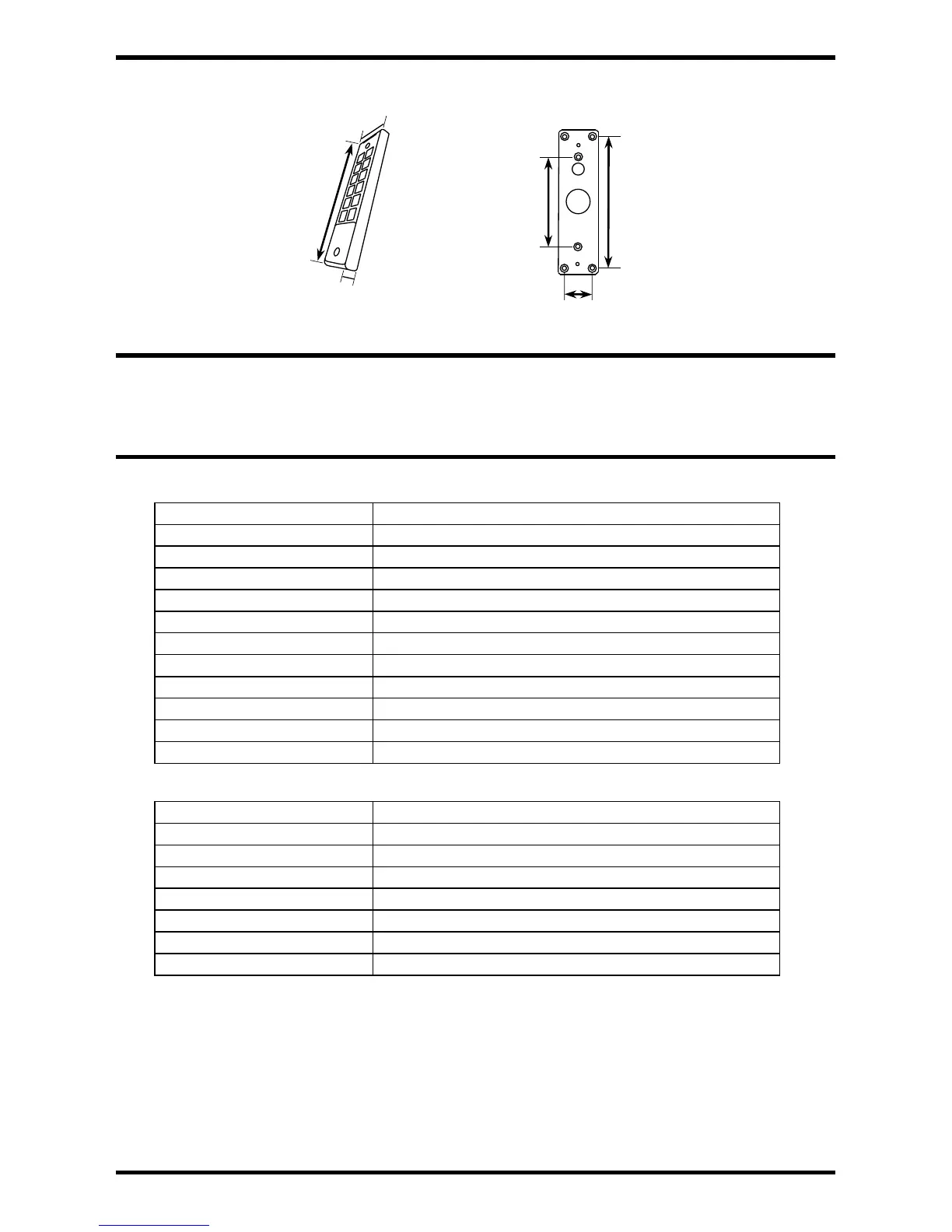

Dimensions:
6
1
/
16
"
(155mm)
3
/
8
"
(10mm)
1
3
/
4
"
(44mm)
3
3
/
4
"
(96mm)
5
1
/
2
"
(140mm)
1
3/
16
"
(30mm)
1x Keypad 4x Mounting screws 2x Bracket security screws 1x Torx wrench 2x Diode
1x Manual 4x Screw anchors 2x Security screws 1x Mounting template 2x Metal oxide varistor

ENFORCER SK-2323-SDAQ Specifications

General

Brand	ENFORCER
Model	SK-2323-SDAQ
Category	Keypad
Language	English
