ENFORCER Piezoelectric Mullion-Style Outdoor Stand-Alone Keypads
4 SECO-LARM U.S.A., Inc.
IF USING THE KEYPAD WITH A MECHANICALLY OPERATED DOOR OR
GATE, MOUNT THE KEYPAD AT LEAST 5’ (15m) FROM THE DOOR OR
GATE TO PREVENT USERS FROM BEING CRUSHED OR PINNED.
FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY OR DEATH.
1. Always disconnect power before servicing the keypad.
2. The keypad must be properly grounded. Use a minimum 22AWG wire connected to the Uninsulated
Chassis Ground wire. Failure to do so may damage the keypad.
3. All wiring and programming should be done by a professional installer to reduce the risk of
improper installation.
4. Basic keypad functions are located on pg. 16 of this manual. Be sure to store this manual in a safe
place for future reference.
5. If using VAC, use the Green Common Ground wire for all sensor input.
* Chassis Ground: Connect a continuous wire from the Uninsulated Chassis Ground wire to a grounding
point to avoid damage from static discharge. A good grounding point could include a grounded metal
conduit, a cold water pipe, or a grounding rod. Use 18AWG wire for earth ground for best results. Wire
used must be at least 22AWG.

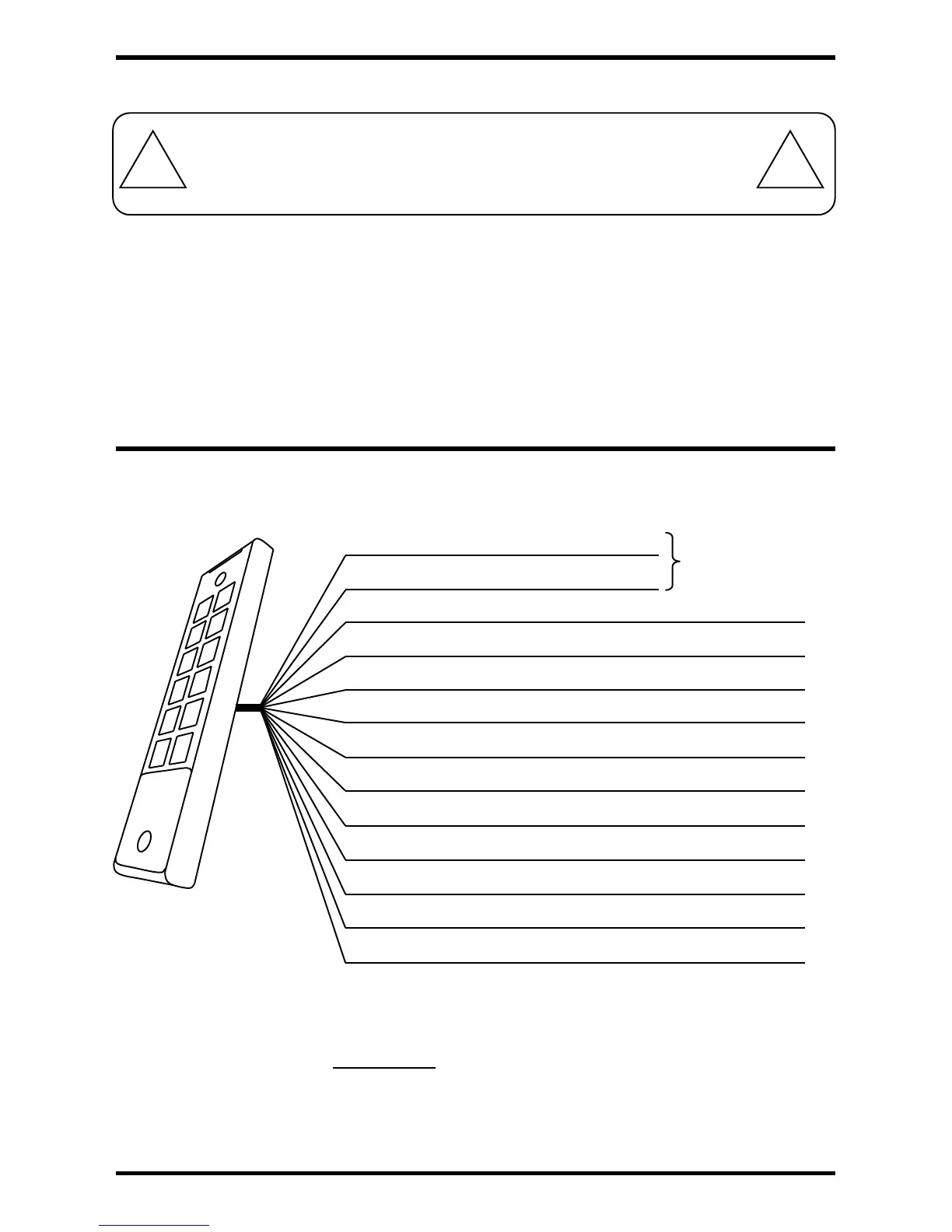

Door Sensing Input (N.C.)
Egress Input #1 (N.O.) Triggers Output #1
Egress Input #2 (N.O.) Triggers Output #2
Uninsulated Chassis Ground*
To Next Page
