ENFORCER SK-2323-SDAQ User Manual

ENFORCER Piezoelectric Mullion-Style Outdoor Stand-Alone Keypads
6 SECO-LARM U.S.A., Inc.
If the keypad is connected to a doorbell, press to activate the doorbell. The doorbell output lasts for
1 second. For instructions on how to program the keypad for doorbell, see pg. 13, Programming the Output
#2 Function.
1
Connect included diode and metal oxide varistor (MOV) as close as possible to and in parallel with an
electric strike. This absorbs possible electromagnetic interference to prevent operation of the strike from
damaging the keypad. Do not connect a diode or MOV when using electromagnetic locks.
2
Output #2 can control the arm/disarm of the alarm control panel. Consult the alarm control panel manual
for more information.
Connecting to a Doorbell
Purple—Output #2 (COM)
Blue—Output #2 (N.O.)
12~24
VAC/VDC
Power
Supply
Doorbell

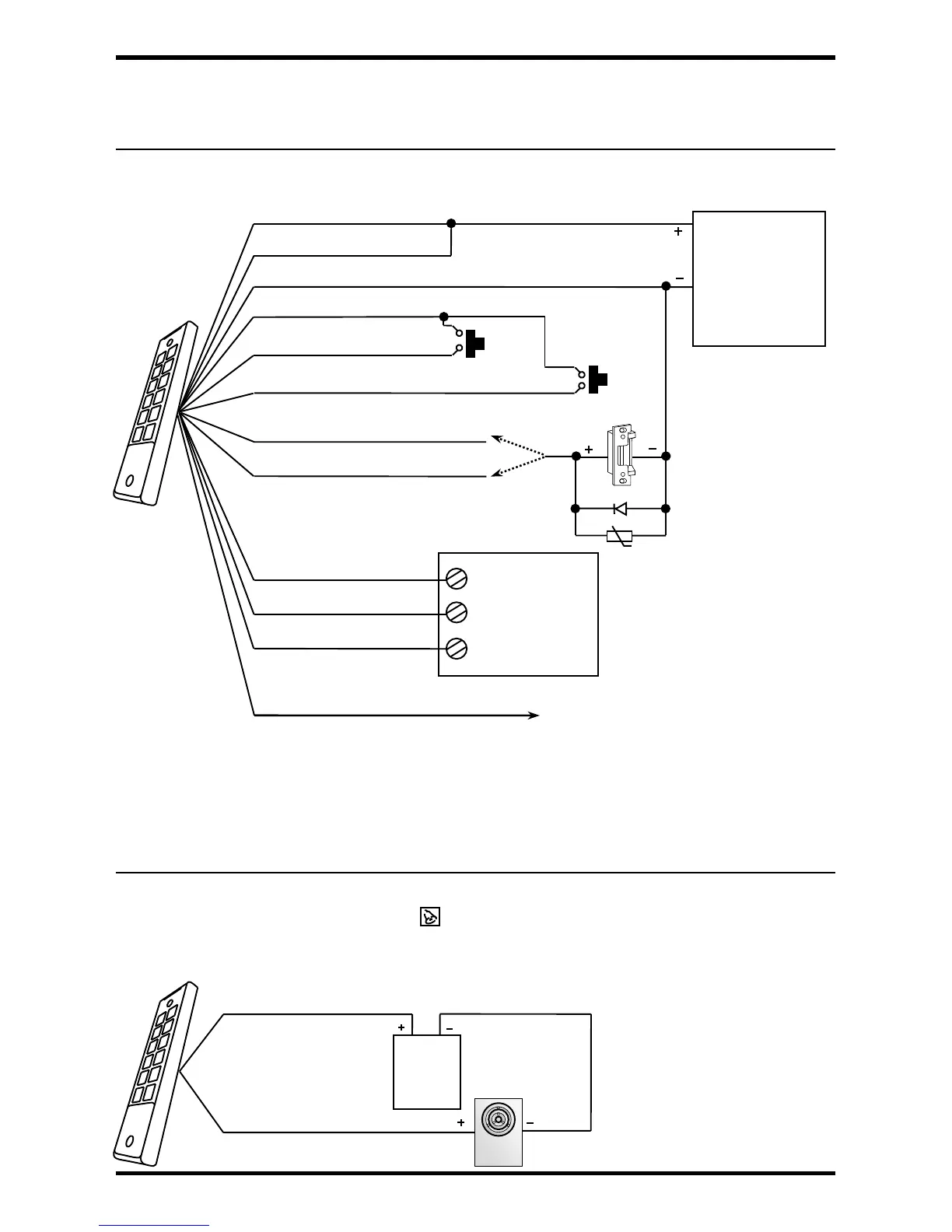

Sample Wiring and Applications:
NOTE: Sample applications are based on DC power supplies.
Connection to Lock Device and Alarm System Arm/Disarm Control
Orange—Egress Input 1 (N.O.)
Uninsulated Chassis Ground
Black—12~24 VAC/VDC (-)
Red—12~24 VAC/VDC (+)
Pink—Output #1 (COM)
Yellow—Egress Input 2 (N.O.)
White—Output #1 (N.O.)
Aqua—Output #1 (N.C.)
Blue—Output #2 (N.O.)
Purple—Output #2 (COM)
Gray—Output #2 (N.C.)
To Chassis Ground
Electric Strike
N.O.
N.C.
12~24
VAC/VDC
Power Supply
Alarm
Control
Panel
2
Egress
Button
Egress
Button
Diode
1
MOV
1
Green—Common ground (-)
