ENFORCER SK-2323-SDAQ User Manual

ENFORCER Piezoelectric Mullion-Style Outdoor Stand-Alone Keypads
SECO-LARM U.S.A., Inc 7 SECO-LARM U.S.A., Inc. 33 7

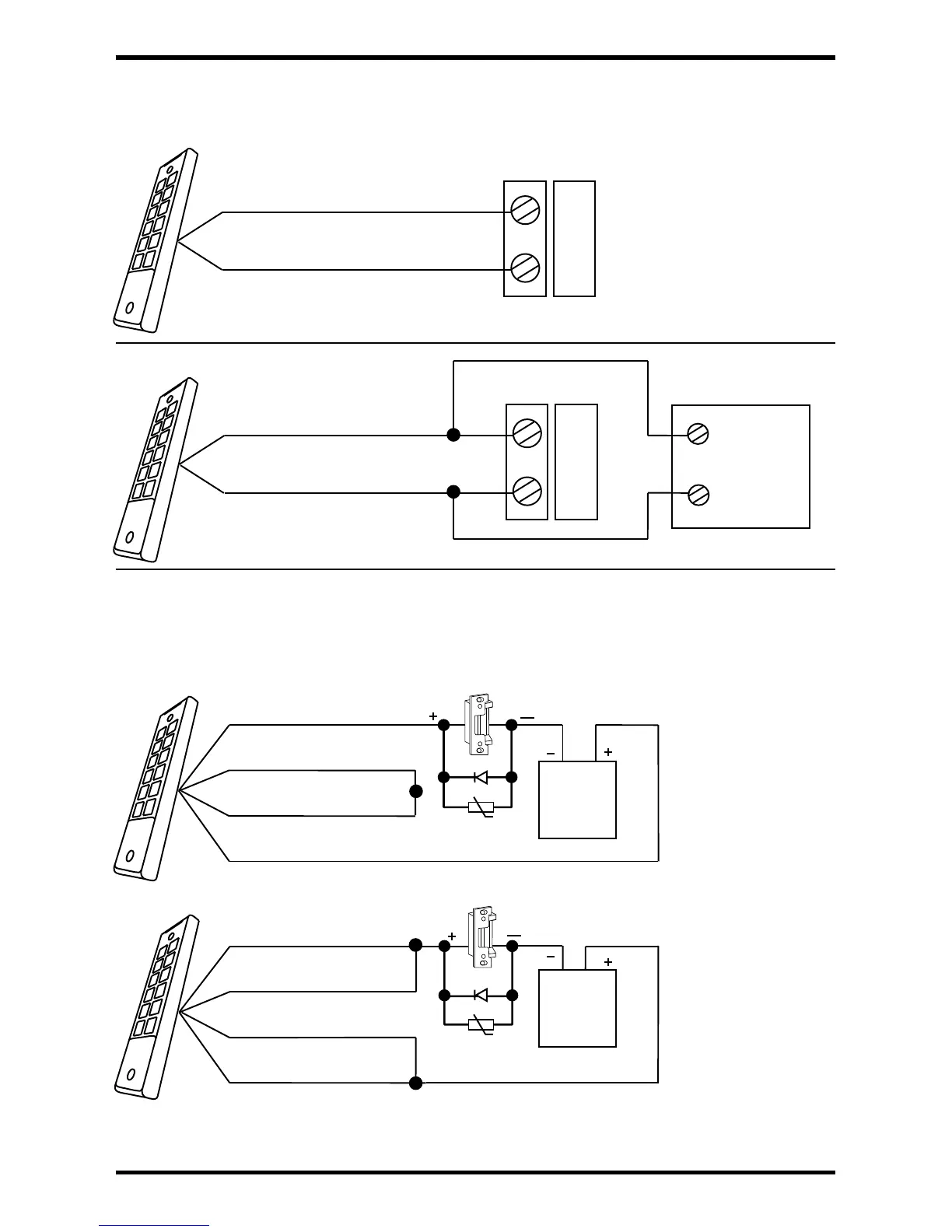

Door-Hold-Open Code
Output #1 and Output #2 can be wired together in such a way that electric lock devices remain unlocked as
long as Output #2 is activated.
Shunting an Alarm N.C. Zone
* Connect included diode and metal oxide varistor (MOV) as close as possible to and in parallel with an
electric strike. This absorbs possible electromagnetic interference to prevent operation of the strike from
damaging the keypad. Do not connect diode or MOV when using electromagnetic locks.
Door Sensing
Brown—Door Sensing Input (N.C.)
Green—Common ground (-)
For N.O. Locking Devices
Purple—Output #2 (COM)
Pink—Output #1 (COM)
Blue—Output #2 (N.O.)
White—Output #1 (N.O.)
Electric Strike
Diode
MOV
12~24
VAC/VDC
Power
Supply
Purple—Output #2 (COM)
Blue—Output #2 (N.O.)
N.C. Dry Contact
Alarm
Control
Panel
For N.C. Locking Devices
Aqua—Output #1 (N.C.)
Pink—Output #1(COM)
Gray—Output #2 (N.C.)
Purple—Output #2 (COM)
Electric Strike
Diode
MOV
12~24
VAC/VDC
Power
Supply




N.C. Dry Contact
The door sensing input is used for anti-tailgating. When used with an N.C. magnetic contact, the relay will
de-energize one second after the door has been closed. This will bypass any existing relay timing.

ENFORCER SK-2323-SDAQ Specifications

General

Brand	ENFORCER
Model	SK-2323-SDAQ
Category	Keypad
Language	English
