Engcon EC05B - Overview

3 Design and function
3.2.1. Overview
!
!
EC
!
1
3 4
5
6
2
7

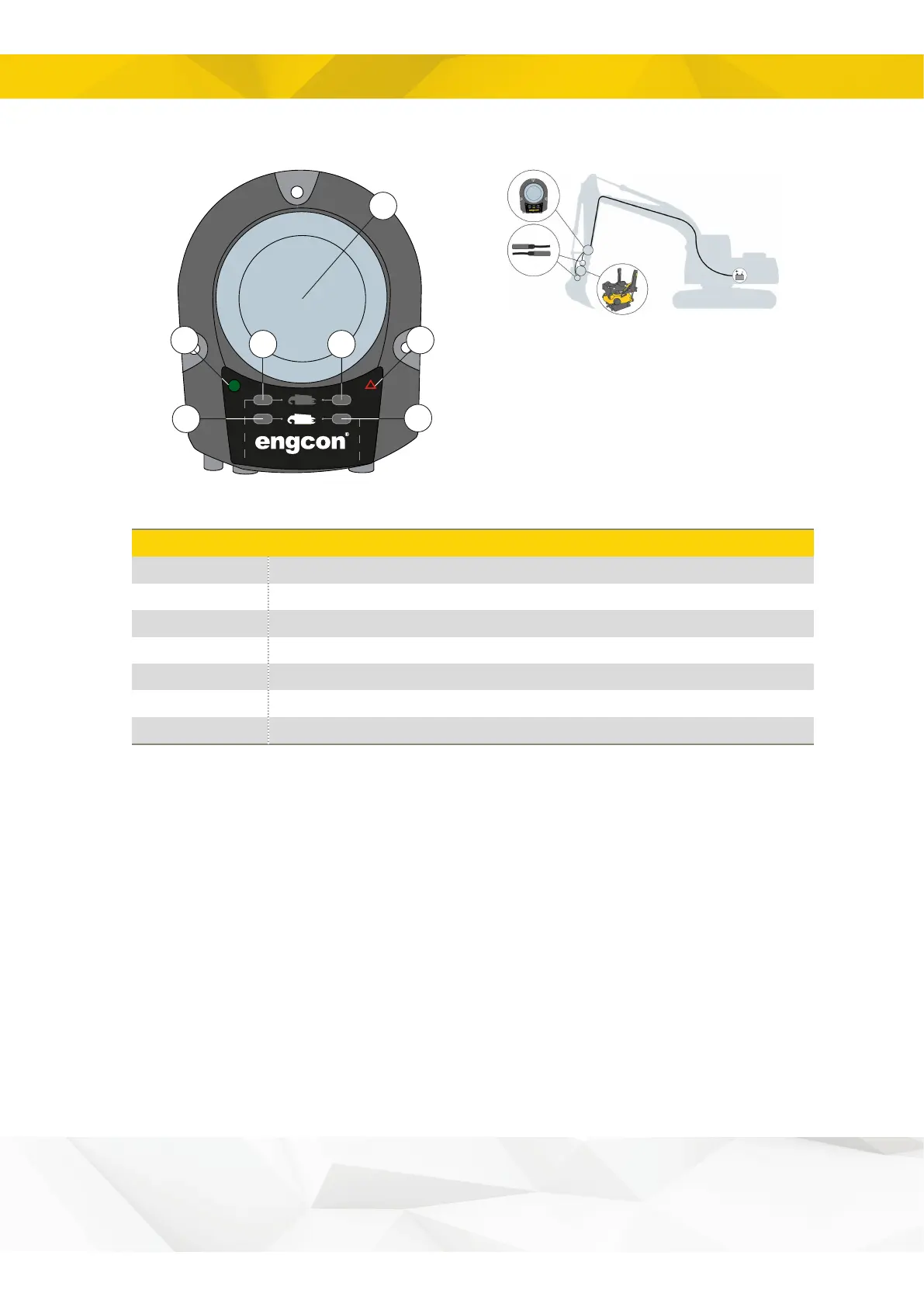

Figure 1.
Position
Description
1
Power supply
2
Alarm indication
3
Sensor, machine coupler hook
4
Sensor, machine coupler ejector
5
Sensor, quick coupler hook
6
Sensor, quick coupler ejector
7
Warning lamp
Table 1.
For indications, see section 7.1.1. Indications.
