Engcon EC209 - Lifting Points; Integrated Grab

5 Operation
5.2. Lifting points
Approved
Not approved

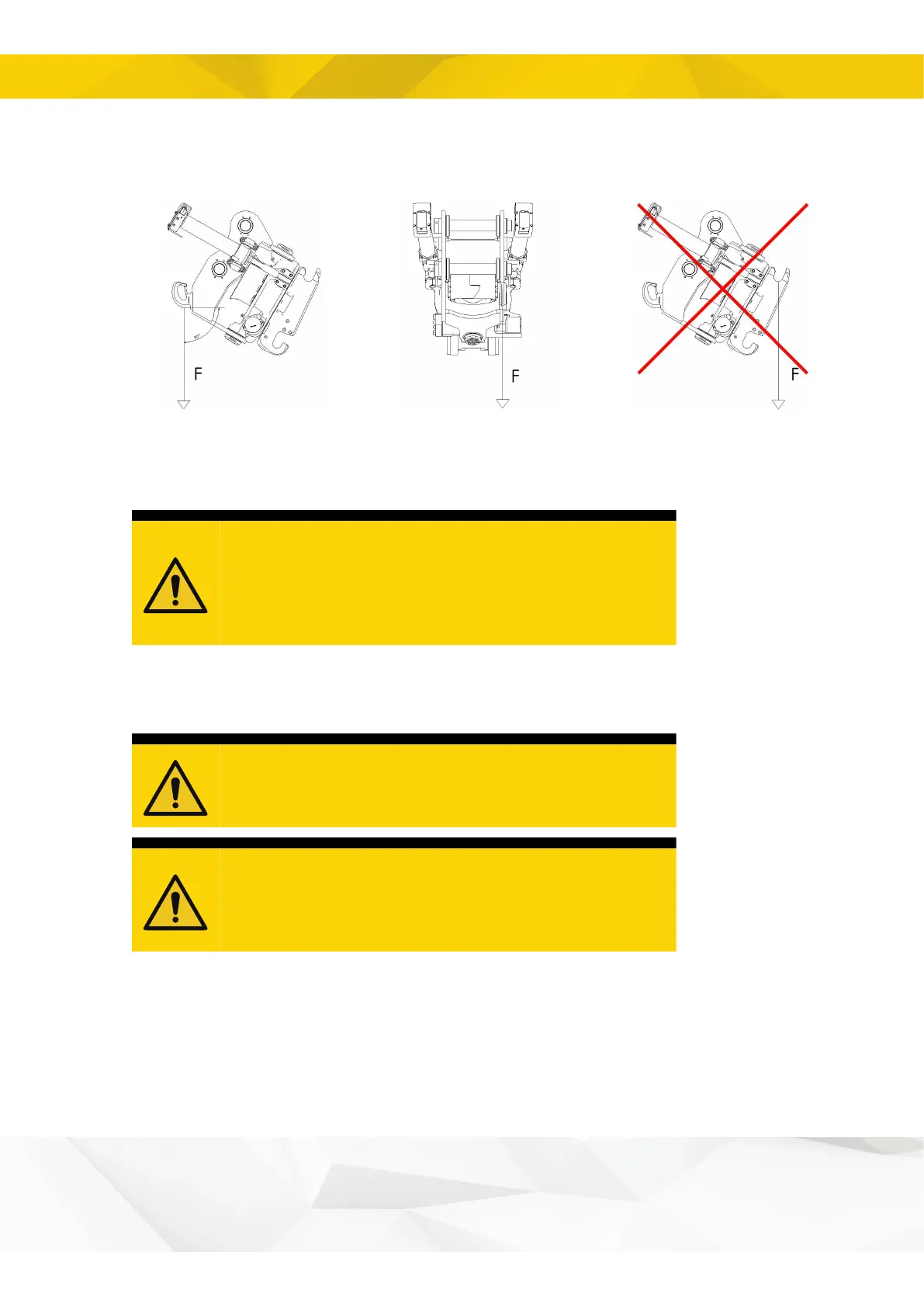

Figure 12.
Figure 13.
Figure 14.
Check max permitted load for the lifting hook, as stamped on the lifting hook and rating
plate. Designed with safety factor 5:1.
WARNING
The base machine must be equipped with a load-
holding valve on the boom/stick and an overload
warning when using a lifting hook on the tiltrotator.
Risk of personal injury and damage to property.
5.3. Integrated grab
The grab is not designed for lifting with chains, straps or similar.
WARNING
Use dedicated lifting equipment when lifting objects.
Risk of personal injury and damage to property.
WARNING
Do not use the grab for work using directional forces,
e.g. piling. Risk of personal injury and damage to
property.
23
