5 Operation

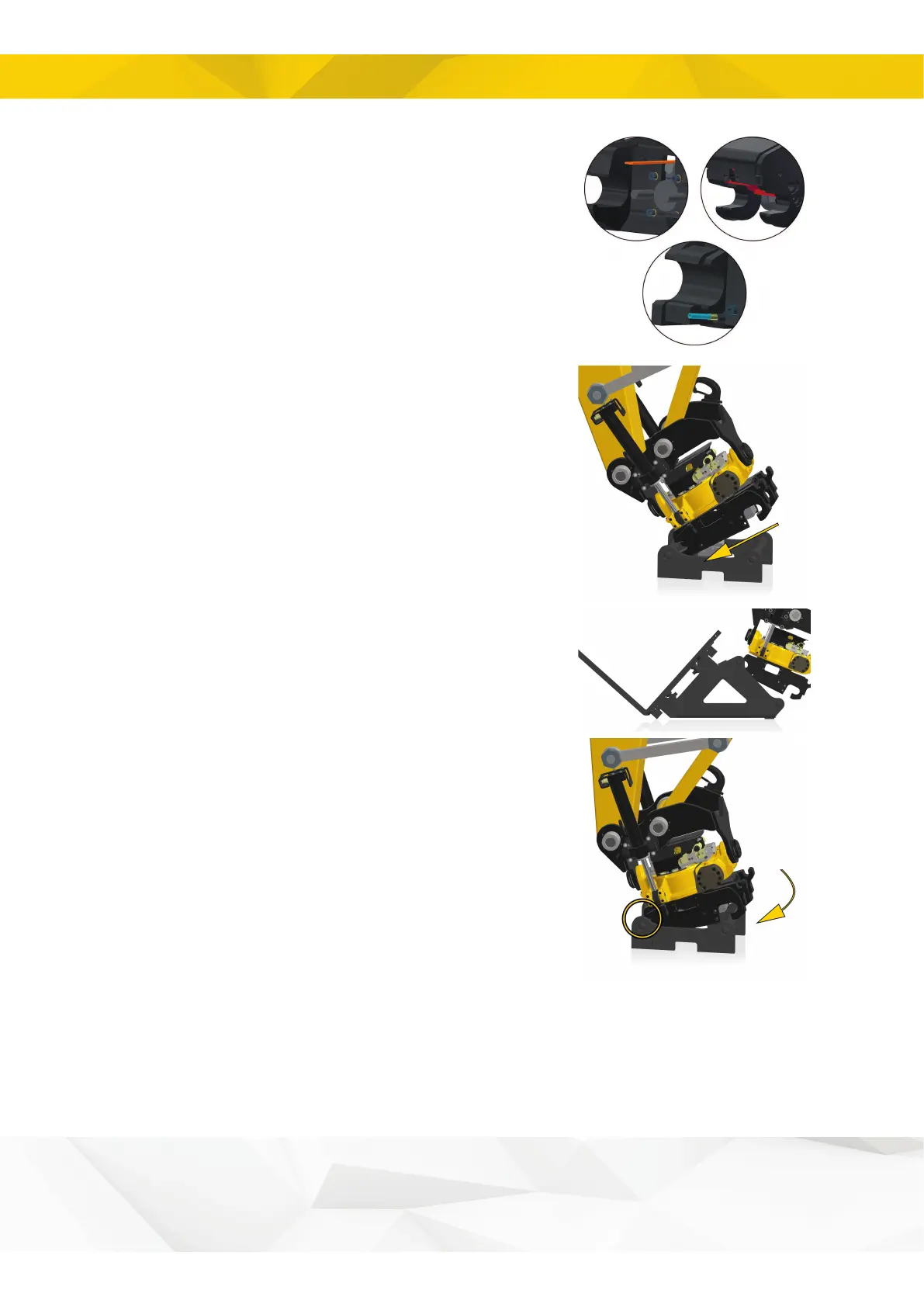

3. Check that the indicator rod is out. Indicator rod
location may vary depending on the tiltrotator model.
ECPUP: Check that the red hook is in the open position.
4. Move the quick hitch towards the tool.
EC-Oil: Make sure the tool is positioned such that the
shaft with the EC-Oil block is located closest to the base
machine. If the tool is positioned correctly, the block will
be visible on the left side of the shaft as seen from the
cab.
Pallet fork: To avoid overload when connecting, the
quick hitch locking pins must face away from the forklift
tines.
5. Connect the tool by moving the quick hitch toward one
shaft on the tool.
Q-Safe: The sound and light warning signals are
activated.
27
