Commissioning
Page 8

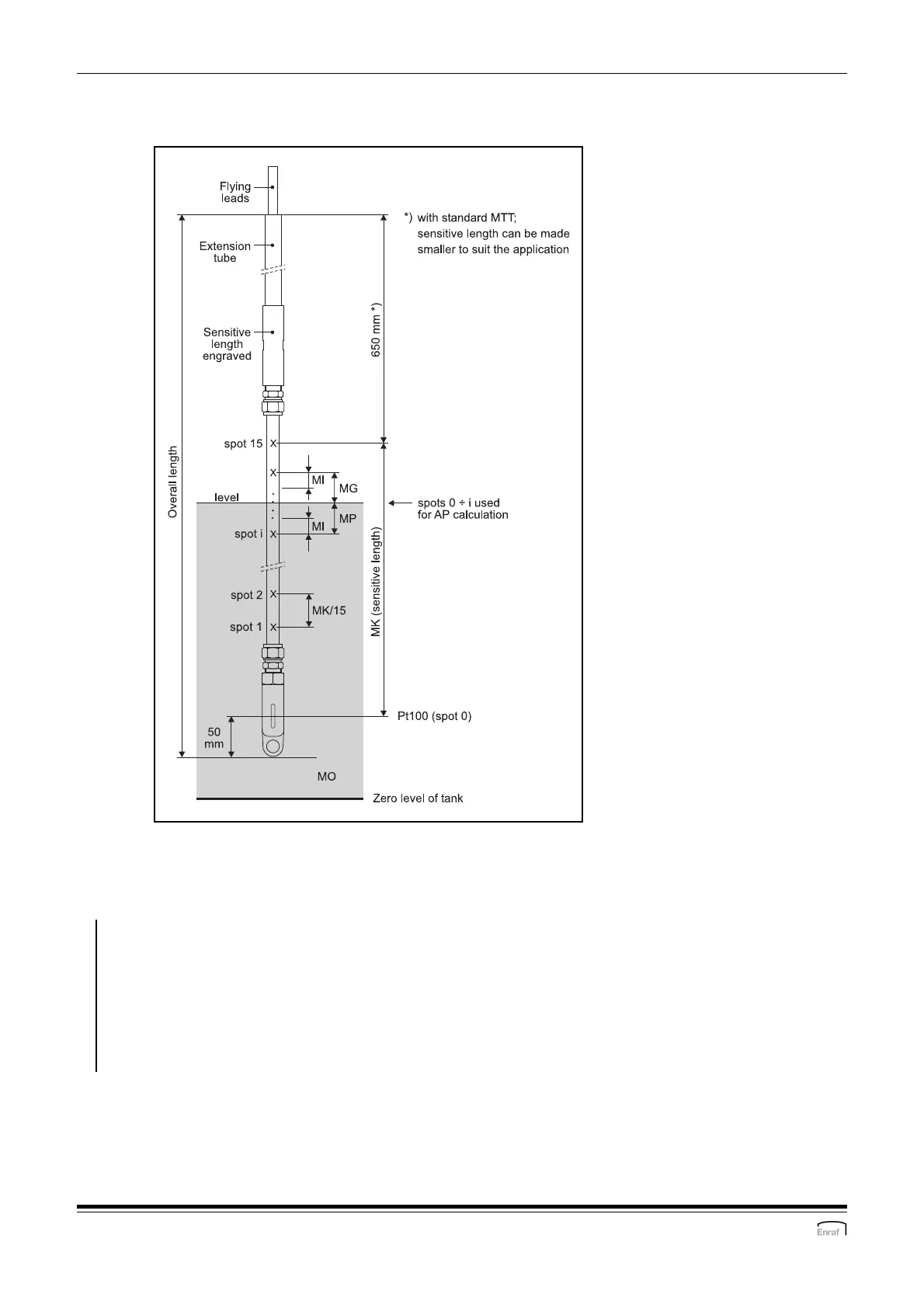

Figure 2.1 MTT definitions
2.3 Tank and temperature probe data
Item Name Description
W2= Protection level 2 Enter protection level 2.
MR= Reference resistance Internal floating point format (default: +.00000000E+00 ).
The reference resistance value must be set on: +.22200000E+03.
MT= Element type Three characters (default: TPL).
The element type must be set on: ‘TPL’.
MN= Number of elements Two digits (default: 16). The number of elements must be set on: 16.
EX Exit Exit protection level.
Wait for approximately 3 minutes and then continue with the items on the next page.
