EVR AUTOMATIC RECLOSER http://www.entecene.co.kr
29
ENHANCED TECHNOLOGY
5.3.1-3. Surge Arrester mounting frame
Mounting brackets are supplied for Surge Arrester on the recloser tank, if required.
TRIP
LOCK
TOP VIEW

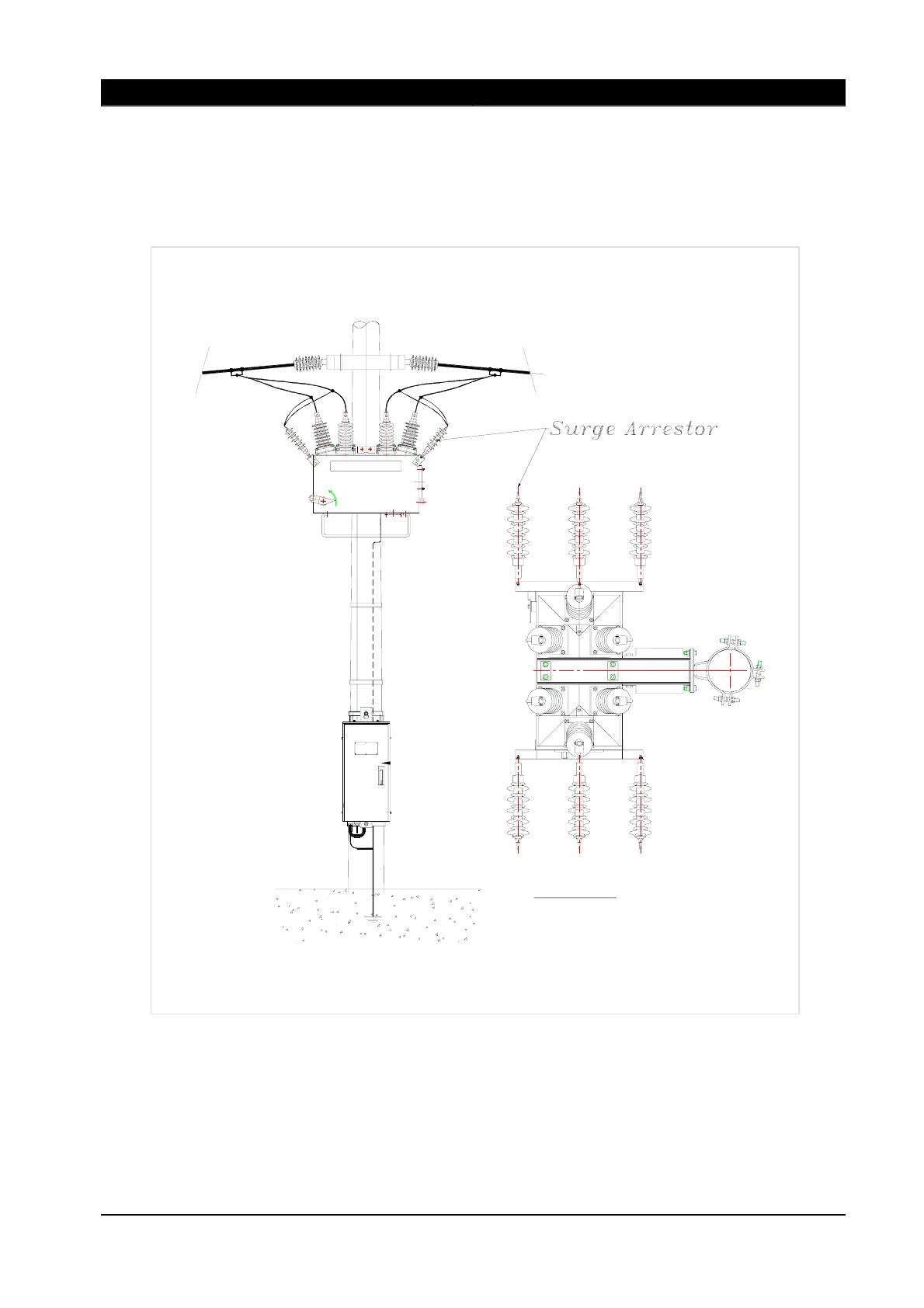

Figure 5-4. Surge Arrester mounting frame
