5.3.2. Control cubicle
The control cubicle should be lifted using the mounting bracket and mounted with similarities
using the procedure for the tank. When the control cubicle and the tank is mounted to the pole
securely, then the umbilical cable plug may be connected as shown in Figure 5-2 and Figure 5-3.

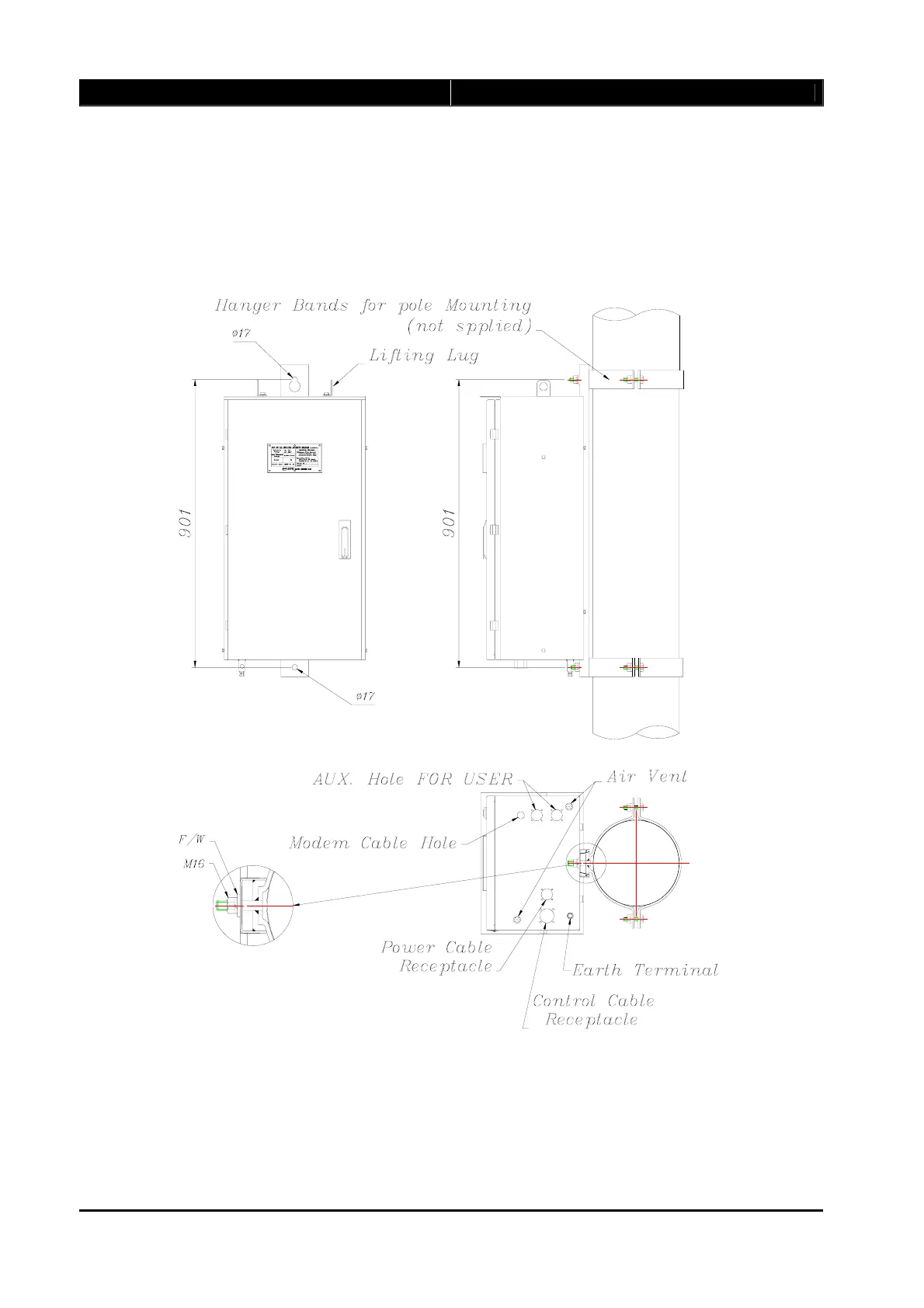

Figure 5-5. Control cubicle mounting detail
