Installing and Connecting a Redundant Power System
2-12 Installation
When you receive your STK-RPS-150CH8 shelf, a coverplate will be in place over each
power-supply slot.
To install the power supplies, refer to Figure 2-6 or Figure 2-7 and proceed as follows:
1. Place the chassis on a sturdy flat surface where you plan to install power supplies.
2. Align the power supply with one of the slots, then slide the power supply forward until its
front panel is flush against the chassis front panel.
3. Fasten the power supply to the chassis using the captive screws on the PSM front panel.
4. Repeat steps 2 and 3 for each additional power supply.
5. Proceed to “Installing the Shelf into the Rack” on page 2-14 for the rack mount installation
instructions.

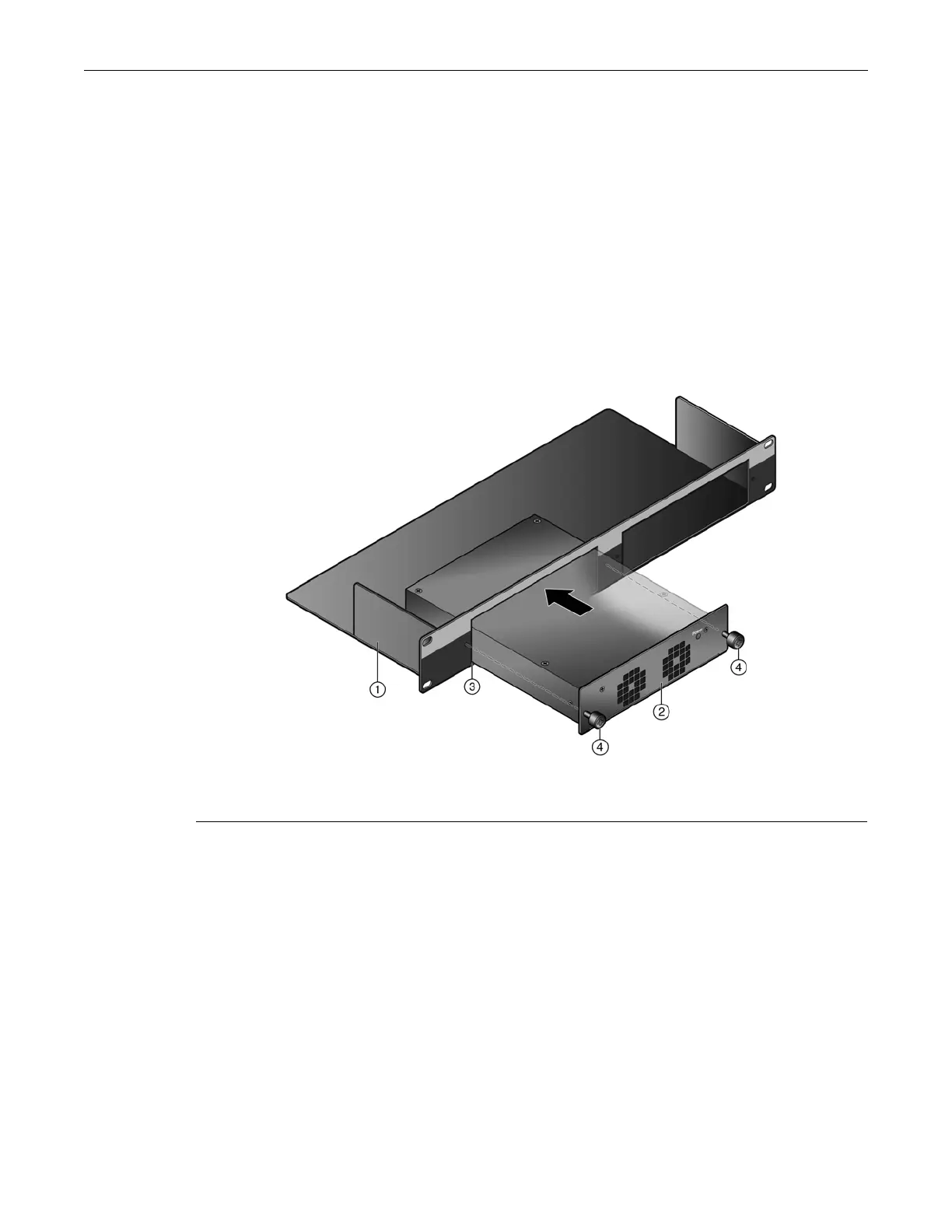

Figure 2-6 STK-RPS-150PS Installation in an STK-RPS-150CH2 Shelf
1 STK-RPS-150CH2 shelf 3 Shelf power supply slot
2 STK-RPS-150PS power supply 4 Captive screws (2)
