The control panel is equipped with a radio receiver with a frequency of 433.92 MHz.
The antenna consists of a rigid wire, 173 mm long, connected to the ANT clamp.
It is possible to increase the range of the radio by connecting the antenna of the ashing lights, or by installing the tuned BIXAL antenna.
N.B.: To connect the external antenna to the control panel, use a coaxial cable, type RG58 (max. 10 m).
Check that the storage module is inserted in the COM connector.
Up to 100 remote controls can be stored in the storage module.
WARNING: if the radio receiver on the control panel is not used, set JR1=OFF and remove the storage module.
Transmitter storage:

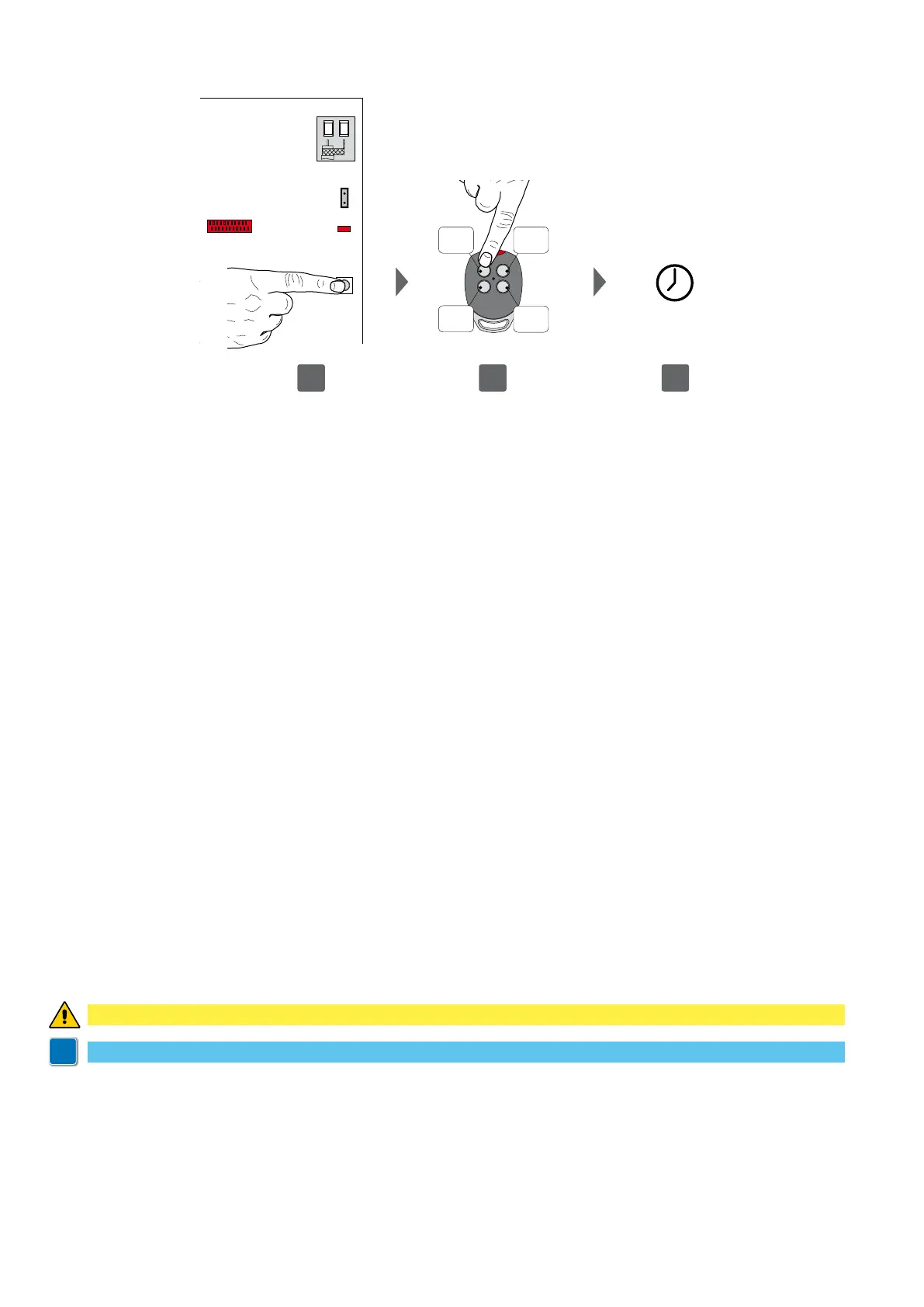

- Press the PRG key on the radio receiver or on the control panel; the SIG indicator LED lights up;
- Proceed with transmission by pressing the CH keys on the remote control that you want to store (within the range of the radio
receiver). The remote control is now stored. During this phase, the SIG indicator LED ashes. When the SIG LED comes on
again, you can validate another remote control. Validate all the new remote controls by making a transmission as indicated;
- You automatically exit the procedure 10 seconds after the last transmission, or you can press the PRG key again (the SIG LED
goes off).
Up to four CH keys of a single remote control can be stored.
- If only one (any) CH key of the remote control is stored, command 1-5 (step-by-step/opening) is carried out;
- If 2-4 CH keys of a single remote control are stored, the functions matched with the CH keys are as follows:
 • CH1=command1-5step-by-step/opening;
 • CH2=partialopeningcommand,itcausestheautomationtoopenforabout1m;
 • CH3=commandtoswitchon/offthecourtesylight;
 • CH4=stopcommand,equivalenttoimpulsivecommand1-9.
Transmitter cancellation:
- Hold down the PRG key for 3 s; the SIG LED starts to ash;
- To cancel all the remote controls from the memory, press the PRG key again, keeping it pressed for 3 s;
- To cancel a single remote control, press any one of the previously memorised CH keys of the remote control to be cancelled;
- The cancellation is confirmed by the quick ashing of the SIG LED.
For further information see the user manual for GOL series remote controls.
If the control panel is replaced, the storage module being used can be inserted in the new control panel.
8. Radio
WARNING: the storage module must be inserted and removed with the power supply disconnected.
i
For further information see the user manual for GOL series remote controls.
10 s
CH1 CH2
CH3CH4
1 2 3
COM
PRG
ANT
SIG
JR1
