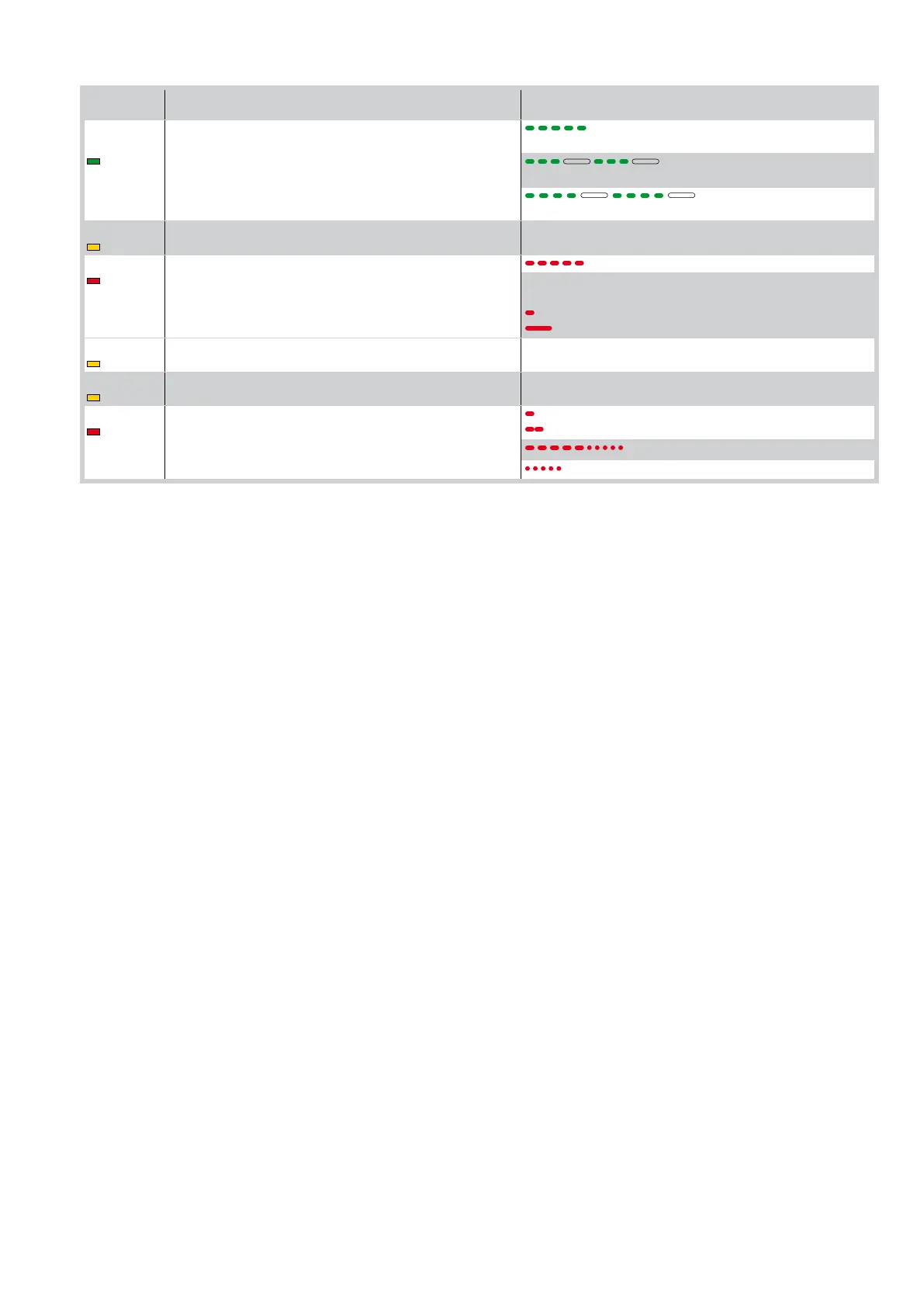

7.5 Signals
LED On Flashing
POWER
ALARM
Power supply on. Encoder not working or DIP5B selection is not con-
sistent with the encoder actually being or not being there.
Current overload on ashing light out-
put.
Shortcircuiting of ashing light
driver.
IN
Command received or change in status of a dip-switch.
/
SA
At least one of the safety contacts is open or DIP6A selection is
not consistent with the connection of terminals 6-8.
Safety test failure (terminal 41).
Operations count performed (only when control panel is switched
on):
= 1000 operations
= 10000 operations
11
0-11 limit switch contact is open.
/
12
0-12 limit switch contact is open.
/
SIG
Transmitter enabling/storage phase. Radio transmission of a stored remote control received.
Radio transmission of an unstored remote control received.
Transmitter being cancelled.
Damaged storage.
