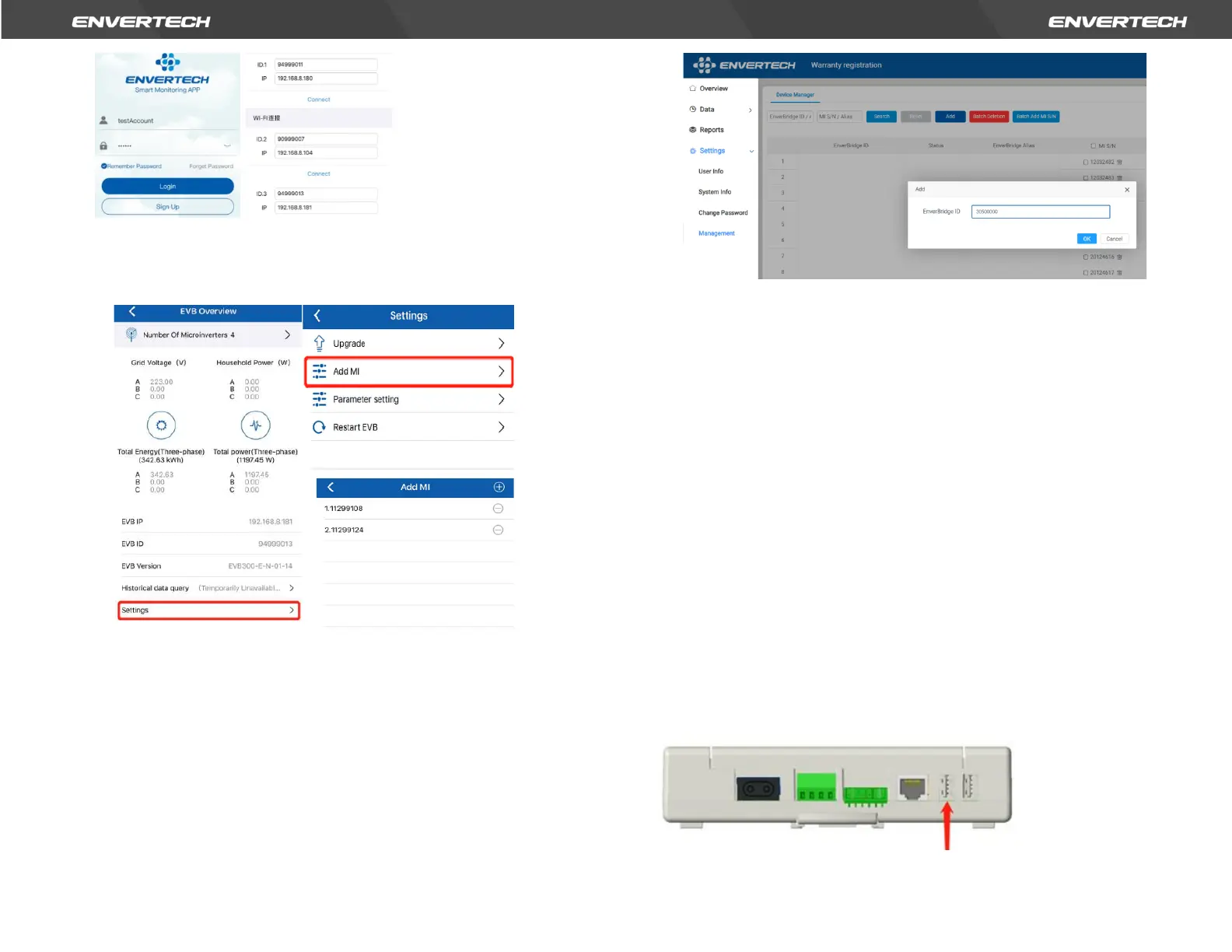

Step 2. On EVB Overview page, enter Settings. Click Add MI you could
choose enter MI SN manually or click the grid icon to scan the MI SN
automatically.
Option 3. Use EnverPortal to bind MI
a. Login www.envertecportal.com with the newly-registered account, go
to Settings--Management.
b. Click Add, then enter the SN of EnverBridge, click OK to finfish adding
monitor.
c. Click“+” button behind the EnverBridge SN, then enter the SN of the
EVT400, click OK to finish binding.
Local Mode
1. Components
To use the local mode on EVB300, additional accessories should be prepared.
• EVB300 (Firmware version EVB-300-E-N-003-014 or higher)
• A USB flash drive with the sufficient storage space (format: FAT16/32 or
exFAT)
2. Operating steps
Insert the USB flash drive into the USB socket on EVB300.
Note: Insert the USB flash drive into the USB socket on EVB300 as shown on
the following picture. Otherwise, the USB flash drive cannot be recognized.
