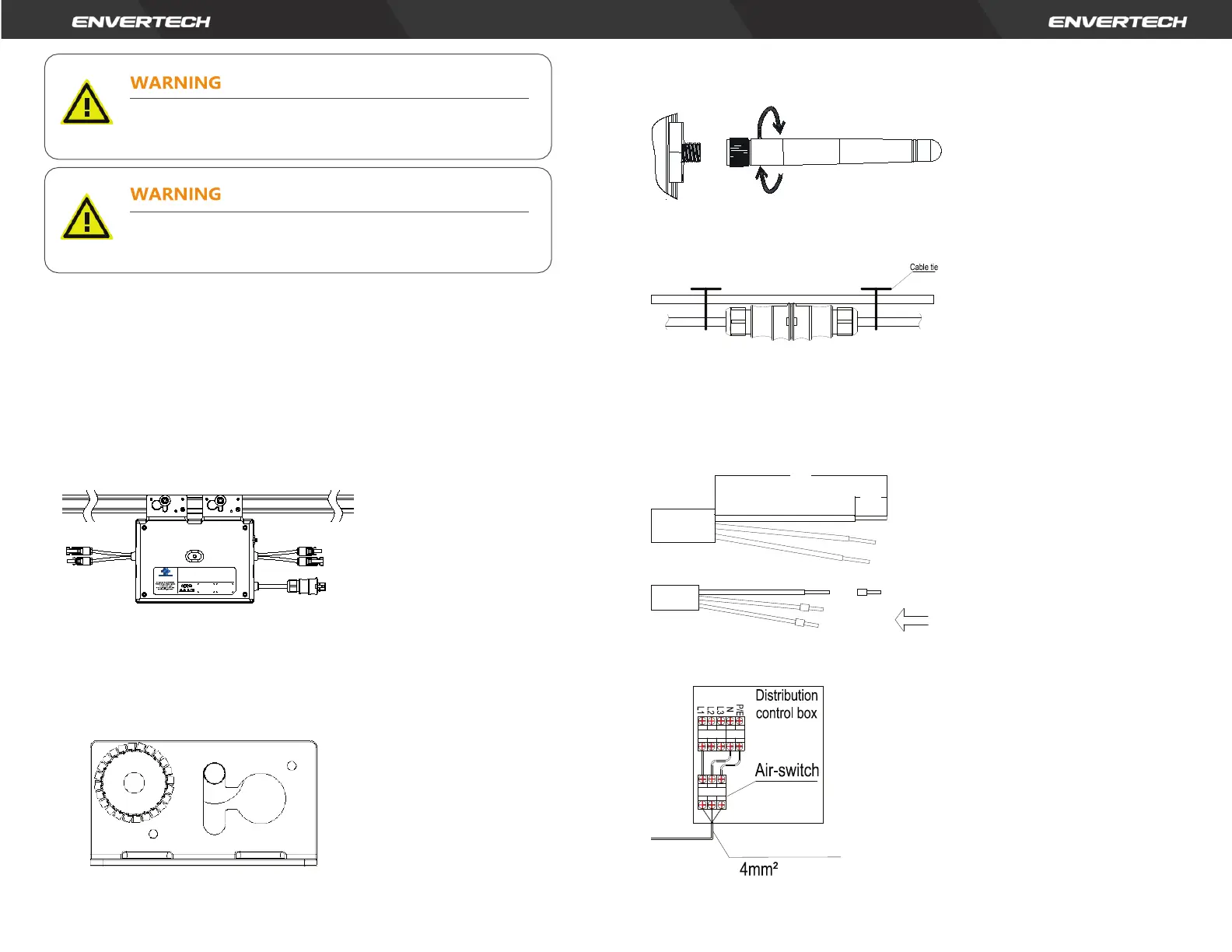

Step 1. Verify that grid voltage and PV panel voltage are matching with
microinverter rating
Step 2. Mount microinverters onto the rack
Mark out the estimated center of each PV module on the rack to facilitate
locating microinverters.
Mount all microinverters under modules to avoid rain and sun, with the
trademark facing downward.
Step 3. Ground the system
Microinverters and modules must be connected to the grounding conductor
in accordance with national standards. Fix the screws to the microinverter
installation hole. Make sure that the grounding screw thread is pierced into
the bracket to get the best grounding effect.
Step 4. Install a WiFi antenna
For better WiFi signal, rotate the antenna clockwise until it is firmly secured
to the EVT800.
Step 5. Fasten AC cables
Fasten AC cables and grounding cables to the rack with cable ties.
Step 6. Connect to the grid
Option a. Connect to air switch
Remove the skin of the two ends of the ex-tension cable by y=40mm and
remove the skin of internal wires by x=14mm. Set the metal terminals onto
the open parts and clamp them to tighten the connection;
Connect the other side of the extension cable to the air switch.
Option b. Put the open parts of the extension cable into the plug and use
1
2
User Identification Number
-40
℃
to +65
℃
Temperature(
℃
):
Operating Range (Vdc):
16V~60V
Normal Voltage?(Vac):
220/230V
MPPT Voltage Range (Vdc):
22V~50V
Current (Max. Continuous) (A):
3.63A
Max. DC Input (Vdc):
60V
Frequency?(Hz):
50Hz/60Hz
Max. Input Continuous Current?(A):
14Ax2
Power Factor Range:
+/-0.90
Max. Input Short-Circuit Current (A):
25A Maximum Units Per Branch: 6
Power (Max. Continuous) (W):
800W
Overvoltage Category: OVC III (AC Main), OVC II ( PV)
Ingress Protection (IP):
IP67 Protective Class: Class I
Model: EVT800
www.envertec.com
Envertech(Shanghai)Corporation LTD.
PV Microinverter
You must install the microinverter system under connection
neither to the grid nor to the PV modules (or if not
disconnected, the modules should be shaded).
Installation could only be implemented when the system is
disconnected from the grid, and the solar panel has been
covered or disconnected.
