Ignition System:
The BISTRO is operated with an electronic battery operated ignition system.
If, at any time when lighting the gas grill, a sparking sound is not heard it could be that the battery requires
replacing.
If the battery has been replaced and spark is still not present, check all wiring and spark electrode for breakage or
corrosion (see “Troubleshooting”).
Battery Removal:
Unscrew ignitor button and remove battery.
To remove the battery, unscrew the ignitor button located on the
control panel front. Remove ignitor button and pull spring out of
ignitor body; the “AA” will come out with the spring attached (refer
to Figure 33).
Replace the battery and install in the reverse order.
Ignitor Module Removal:
Undo the two (2) # 8 sheet metal screws and drop ignitor module straight down.
When removing the ignitor module from under the control
panel, rst remove the two ” stainless steel sheet metal
screws and drop the module and the heat shield straight
down (as shown in Figure 34). Remove one of the short
wires that comes from the ignition module that is connected
to ground. Install any new wires where the shorted wire was
removed from the ignition module for the extra components
that could be added to the BISTRO.
NOTE: When installing the ignitor module and the heat
shield, please take special care not to damage any of the
wires as failure in the ignition system could occur.

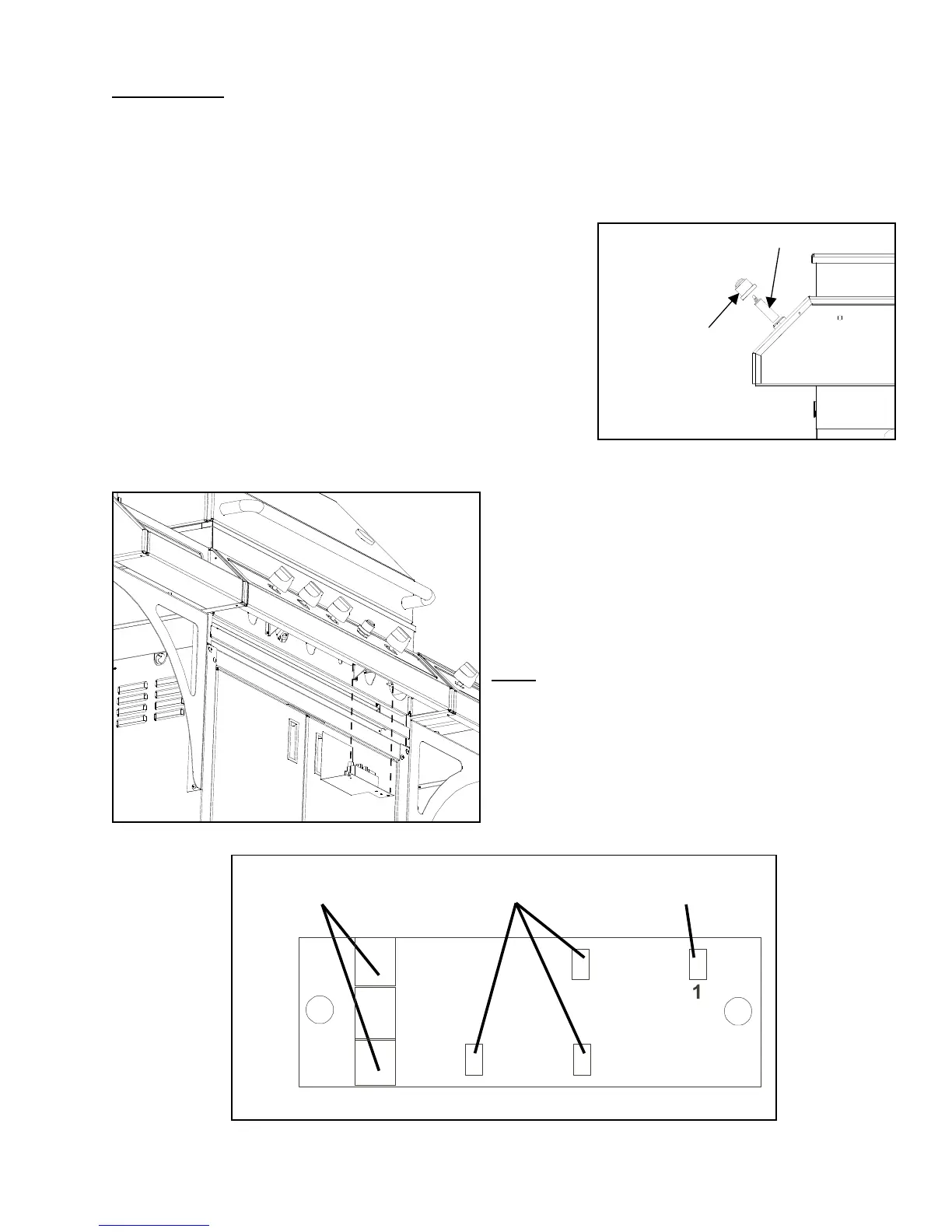

Figure 35
Figure 33
Figure 34
