ENGINE INSTALLED ONTO CART ASSEMBLY:
Components Required:
● Rolling cart ● Pre-assembled engine ● (4) ” x ” stainless steel bolts
● (4) ” stainless steel lock washers ● Metal Foil Container ● Drip tray
WARNING: Two (2) people are required to lift the engine onto the cart safely.
Empty all the components (frame deectors, manual bag, and warming tray) from inside the engine to make it
lighter to lift. Turn the cart body right side up. Using two (2) people, lift the engine onto the cart. Take care to line
up the manifold tting on the bottom of the engine with its corresponding cut away on the top of the cart. Refer
to Figure 17.

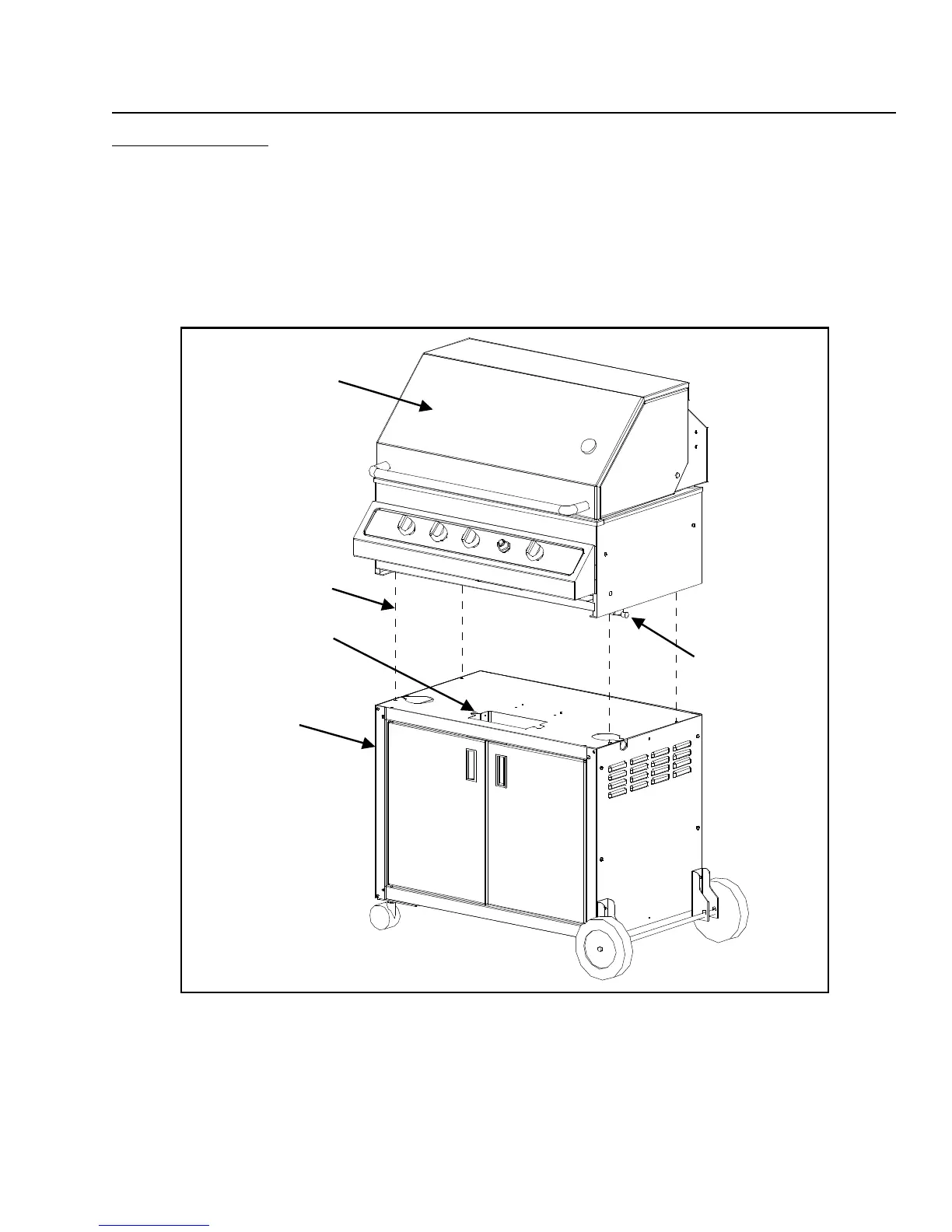

Figure 17
Attach the engine to the cart with four (4) bolts and four lock-washers. The bolts go from inside the cart through
the top of the cart into pre-threaded inserts already installed in the bottom of the engine. Using a
5
/32” Allen key
tighten all four (4) bolts.
The metal foil container can be installed at any stage but is pointed out in this step to provide clarity on the location
for installation. If installing at a later time, open cabinet and slide container into place.
9
