FREESTANDING INSTALLATION, MODEL FS

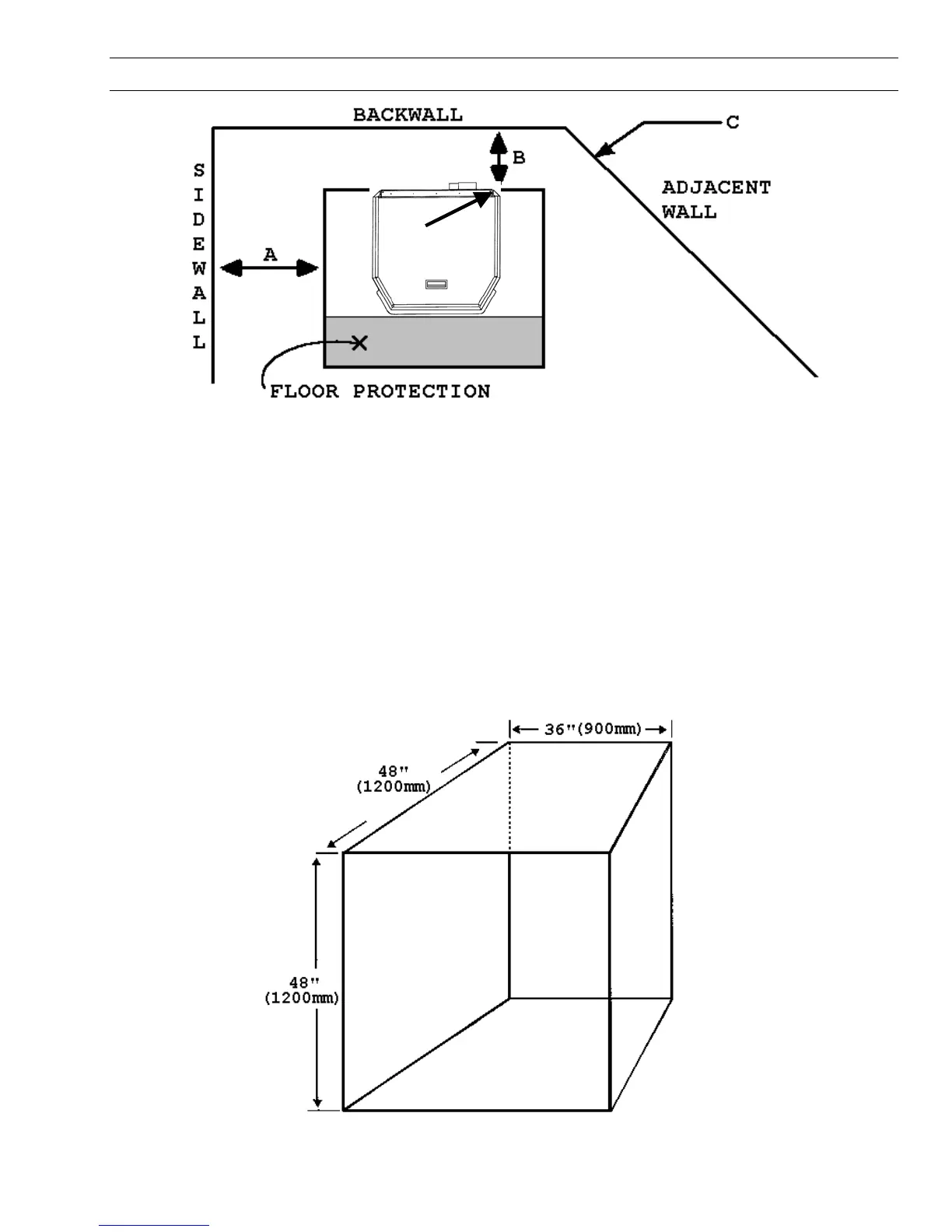

CLEARANCE TO COMBUSTIBLES
This unit must be installed on a noncombustible hearth pad, extending at least 6” (inches) (150 mm) in
front of the appliance and at least the entire width of the appliance.
-Side wall to unit A- 6 INCHES (150 mm)
-Back wall to unit B- 2 INCH (50 mm )
-Corner to unit C- 2 INCH (50 mm )
-Front of hearth pad to unit....D- 6 INCHES (150 mm)(Floor Protection)
ALCOVE CLEARANCES
Alcove width ..........................36 inches (900 mm)
Alcove height.........................48 inches (1200 mm)
Alcove depth..........................48 inches (1200 mm)
