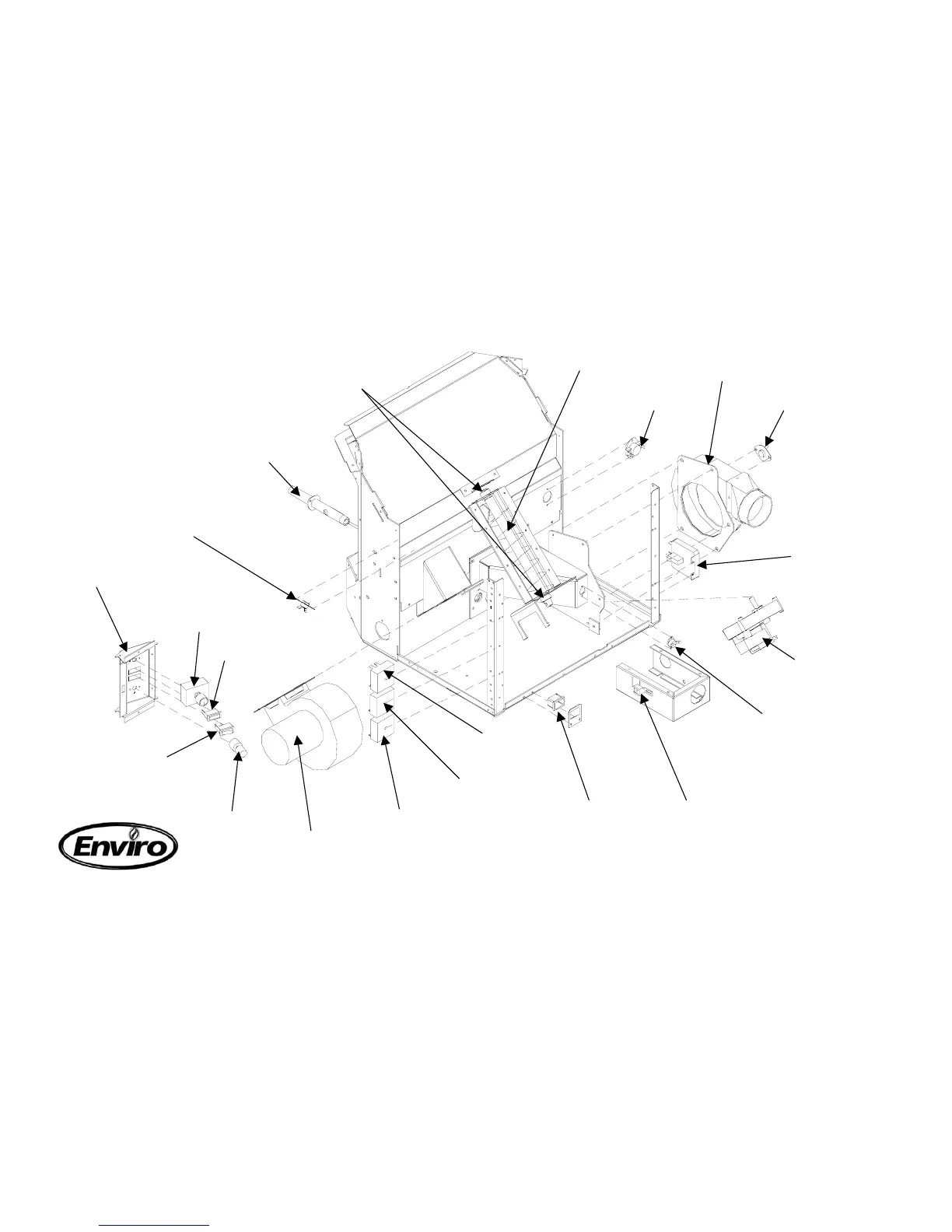

Enviro EF-IV I - Exploded View: Key Components

30
AUGER BRASS
BUSHINGS SET
of TWO
EF4i-065
PIN IGNITER
EF4i-127
HIGH LIMIT TEMP
SENSOR 200° F
(93° C)
EF4i-016
CONTROL PANEL
with DECAL
EF4i-053
FAN CONTROLLER
with KNOB
EF4i-045
GREEN LIGHT
EF4i-041
START-UP
SWITCH
EF4i-043
DIAL-A-FIRE
EF4i-044
CONVECTION
BLOWER
EF4i-002
PHASE
CONTROLLER
EF4i-141
AUGER
TIMER
CONTROL
EF4i-036
START-UP
TIMER
EF4i-037
IEC POWER
OUTLET
PIN IGNITER
SOCKET
EF4i-128
IGNITER TEMP
SENSOR 120° F
(49° C)
EF4i-015
AUGER
MOTOR
EF4i-001
VACUUM
SWITCH
EF4i-017
FAN TEMP
SENSOR
16° F (71° C)
EF4i-013
AUGER
EF4i-025
EF 4 i
COMPONENTS EXPLODED
Page 1 of 2 JULY 2001
COMBUSTION
BLOWER
EF4i-007
EXHAUST
TEMP
SENSOR
120° F (49° C)
EF4i-010
